Wastewater/Activity/PacpInspection/1.0Mar 19, 2019, 08:55 AM
C 0547_C 0546_03192019_021323.mp4
- Date
- 03/19/2019
- W/O
- 756632
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00362
- PipeID
- P04732
- Time
- 1:55 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5834
- Sewer Name
- C JOINT OUTFALL C - UNIT 4D
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_756632_TV03089_MAR2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- C 0547
- Downstream MH
- C 0546
- Dir. of Survey
- Downstream
- Length Surveyed
- 511.1 ft.
- Total Length
- 511.1 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2300
- O&M Rating
- 6
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

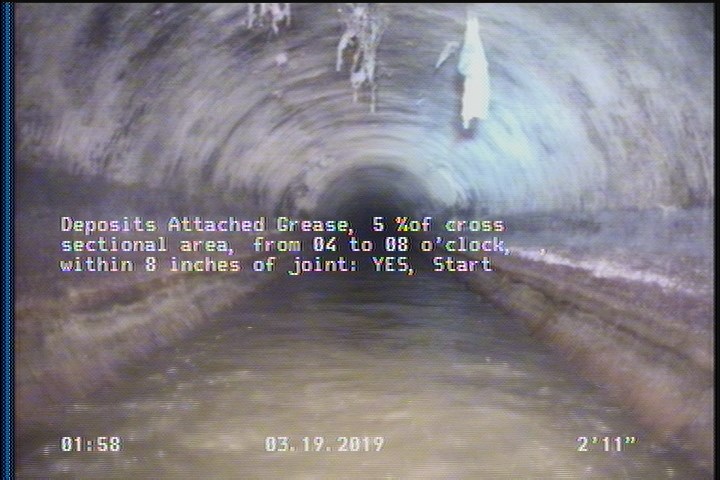

2.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

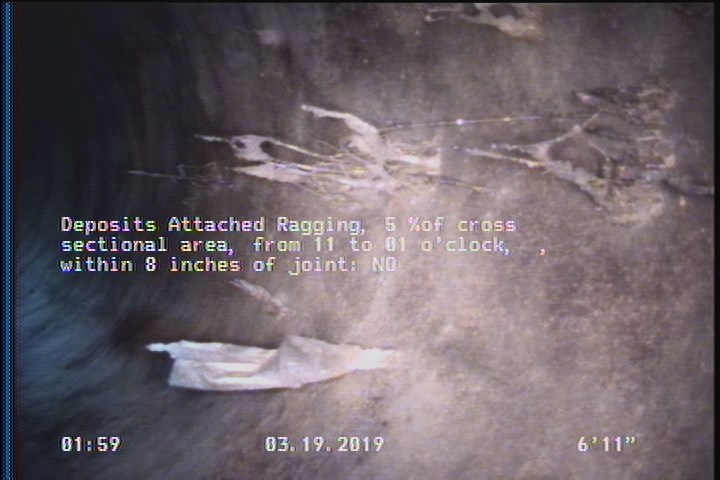

7 ft. - Deposits Attached Ragging, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: NO

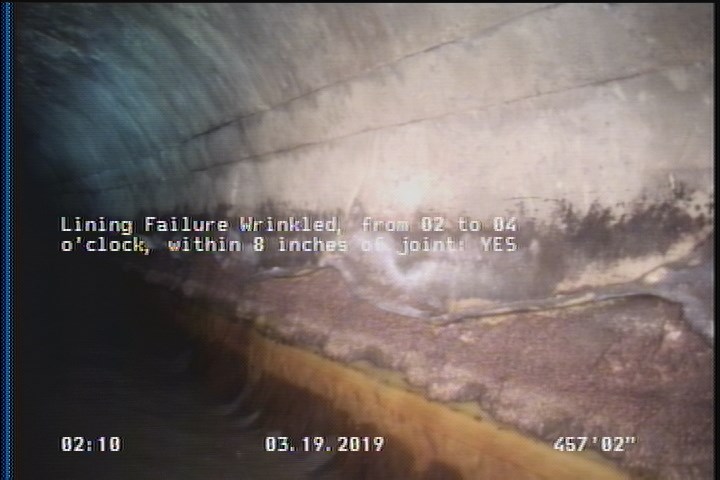

457.2 ft. - Lining Failure Wrinkled, from 02 to 04 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 382.8 | DSC | — |
| 7 | DAR | — |
| 2.9 | DAGS | — |
| 0 | AMH | C 0547 |
| 0 | MWL | — |
| 511.1 | AMH | C 0546 |
| 0.2 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 509.3 | DSC | — |
| 509.3 | DAGS | — |
| 2.9 | MGO | LINER |
| 457.2 | LFW | — |
Properties (7)
- additional_info
- SC366065
- customer
- LACSD
- datetime
- 2019-03-19T01:55:39-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- lining
- CIPP
- year_laid
- 36286
