Wastewater/Activity/PacpInspection/1.0Apr 1, 2019, 10:37 AM
32 1246_32 1245 _04012019_035130.mp4
- Date
- 04/01/2019
- W/O
- 756114
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00832
- PipeID
- P19714
- Time
- 3:37 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6440
- Sewer Name
- 32 BOUQUET CANYON TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_756114_TV32007_MAR2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Square
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 32 1246
- Downstream MH
- 32 1245
- Dir. of Survey
- Downstream
- Length Surveyed
- 332.4 ft.
- Total Length
- 332.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 132
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 132
Observation photos (2)

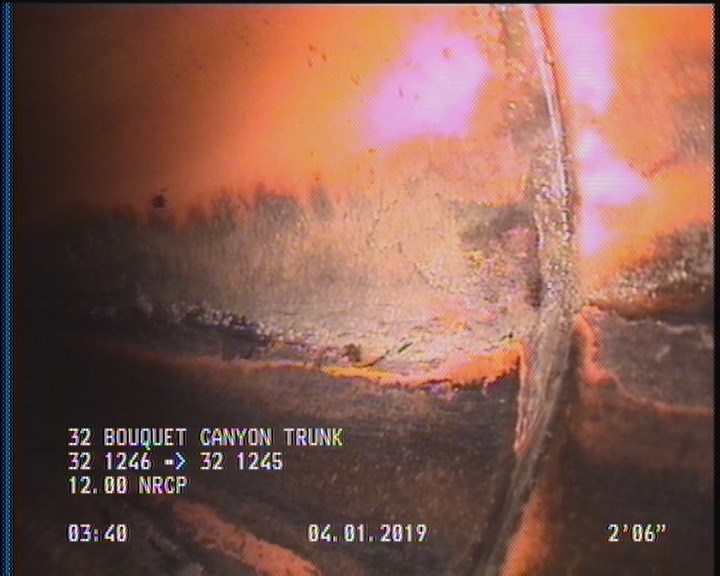

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

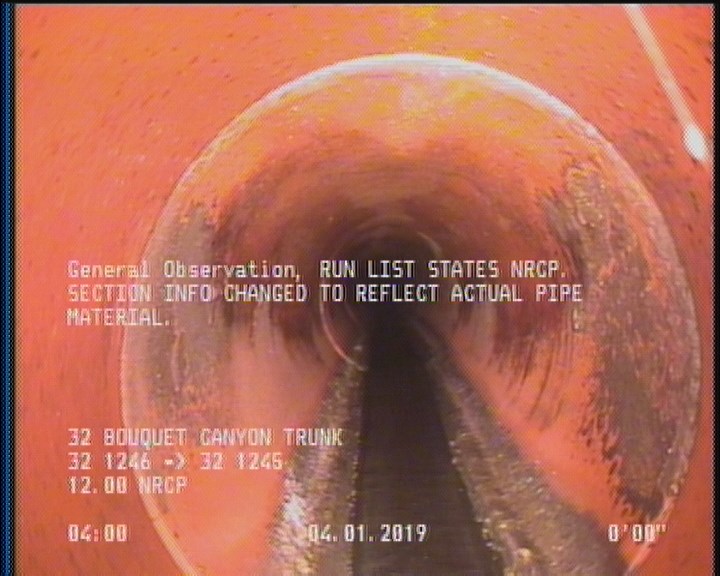

332.4 ft. - Downstream Manhole, Survey Ends - 32 1245
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 332.4 | AMH | 32 1245 |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | 32 1246 |
| 0 | MWM | — |
| 2 | MGO | RUN LIST STATES NRCP. SECTION INFO CHANGED TO REFLECT ACTUAL PIPE MATERIAL. |
| 2 | DAGS | — |
| 0 | MWL | — |
| 329.7 | DAGS | — |
Properties (5)
- additional_info
- SC366208
- customer
- LACSD
- datetime
- 2019-04-01T03:37:33-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
