Wastewater/Activity/PacpInspection/1.0Apr 2, 2019, 10:08 AM
32 1238_32 1237 _04022019_032434.mp4
- Date
- 04/02/2019
- W/O
- 756114
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00832
- PipeID
- P19707
- Time
- 3:08 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6443
- Sewer Name
- 32 BOUQUET CANYON TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_756114_TV32007_MAR2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 32 1238
- Downstream MH
- 32 1237
- Dir. of Survey
- Downstream
- Length Surveyed
- 403.2 ft.
- Total Length
- 403.2 ft.
- Structural Index
- 3
- Structural Quick
- 3800
- Structural Rating
- 24
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 24
Observation photos (3)

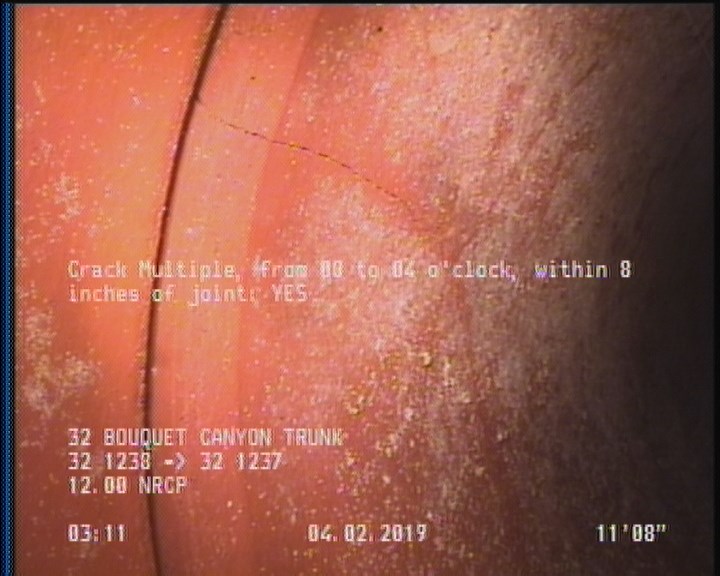

11.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

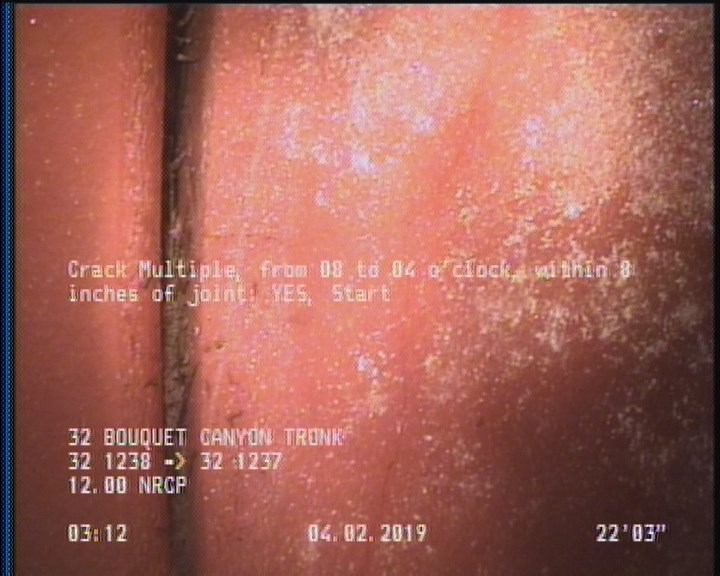

22.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

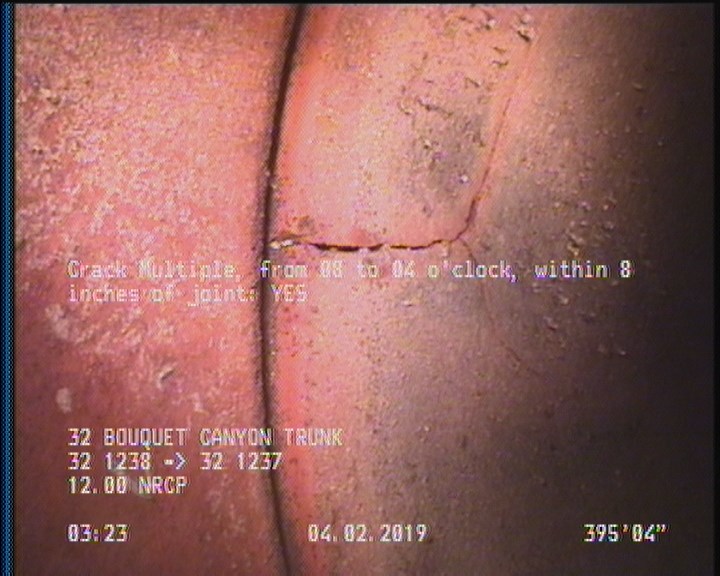

395.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 403.2 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 403.2 | AMH | 32 1237 |
| 395.3 | CM | — |
| 123.3 | TFC | — |
| 54.4 | CM | — |
| 351.3 | TFC | — |
| 11.7 | CM | — |
| 0 | AMH | 32 1238 |
| 200.2 | TFC | — |
| 22.2 | CM | — |
| 0 | MGO | RUN LIST STATES NRCP. ACTUAL MATERIAL IS VCP. SECTION INFO CHANGED TO REFLECT ACTUAL PIPE MATERIAL. |
| 203.2 | TFC | — |
| 354 | TFC | — |
| 49.5 | TFC | — |
| 0 | MWL | — |
| 277.6 | TFC | — |
| 126.2 | TFC | — |
Properties (6)
- additional_info
- SC366211
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-04-02T03:08:22-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
