Wastewater/Activity/PacpInspection/1.0Apr 4, 2019, 07:04 AM
32 1236_32 1235 _04042019_002126.mp4
- Date
- 04/04/2019
- W/O
- 756114
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00832
- PipeID
- P19705
- Time
- 12:04 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6446
- Sewer Name
- 32 BOUQUET CANYON TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_756114_TV32007_MAR2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 32 1236
- Downstream MH
- 32 1235
- Dir. of Survey
- Downstream
- Length Surveyed
- 402.5 ft.
- Total Length
- 402.5 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2O00
- O&M Rating
- 160
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 163
Observation photos (2)

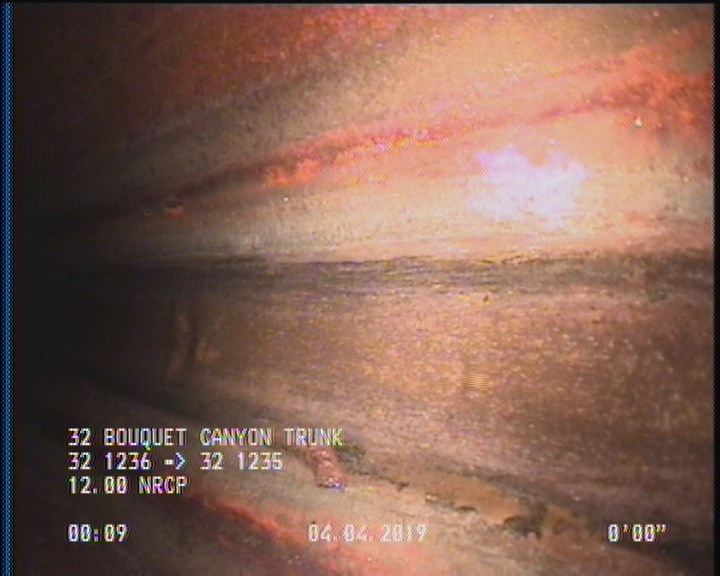

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

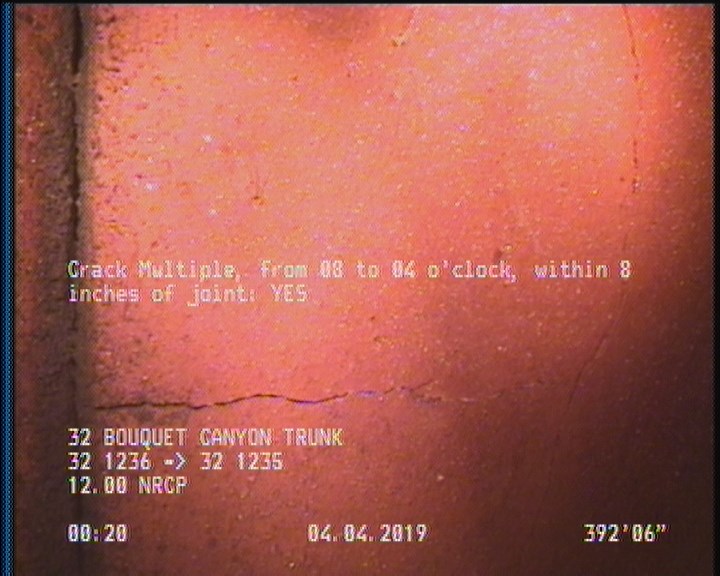

392.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 402.5 | AMH | 32 1235 |
| 400.6 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | 32 1236 |
| 0 | MWM | — |
| 0 | MGO | RUN LIST STATED NRCP BUT ACTUAL MATERIAL IS VCP. SECTION INFO CHANGED TO REFLECT ACTUAL PIPE MATERIAL. |
| 392.5 | CM | — |
Properties (6)
- additional_info
- SC366214
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-04-04T00:04:24-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
