Wastewater/Activity/PacpInspection/1.0Apr 4, 2019, 09:02 AM
32 1232_32 1006 _04042019_021818.mp4
- Date
- 04/04/2019
- W/O
- 755773
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00832
- PipeID
- P19699
- Time
- 2:02 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6447
- Sewer Name
- 32 BOUQUET CANYON TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_755773_TV32008_MAR2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 32 1232
- Downstream MH
- 32 1006
- Dir. of Survey
- Downstream
- Length Surveyed
- 311.4 ft.
- Total Length
- 311.4 ft.
- Structural Index
- 3
- Structural Quick
- 413I
- Structural Rating
- 151
- O&M Index
- 2
- O&M Quick
- 2F00
- O&M Rating
- 74
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 225
Observation photos (4)

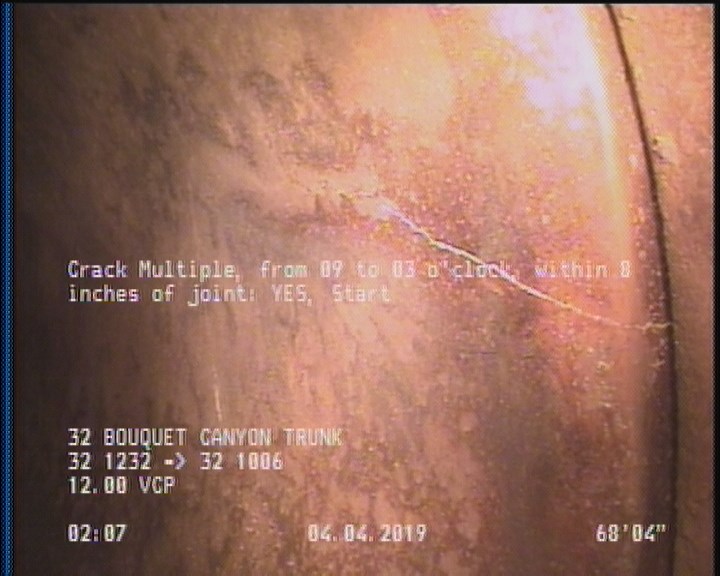

68.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

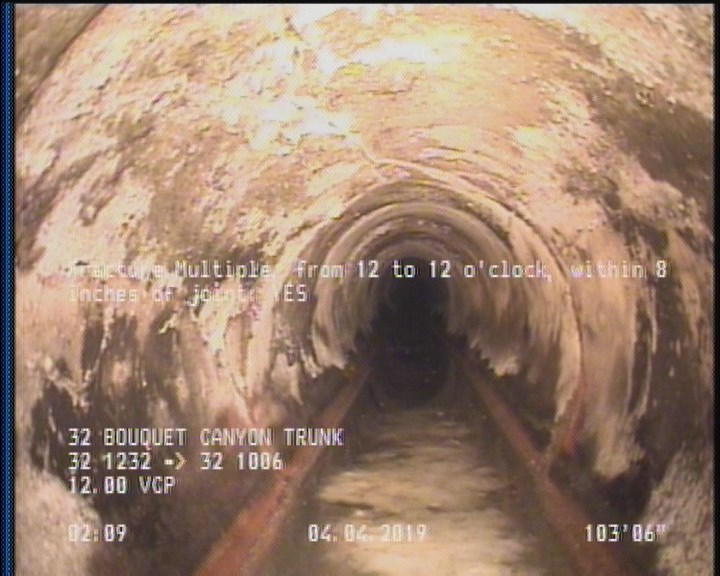

103.5 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

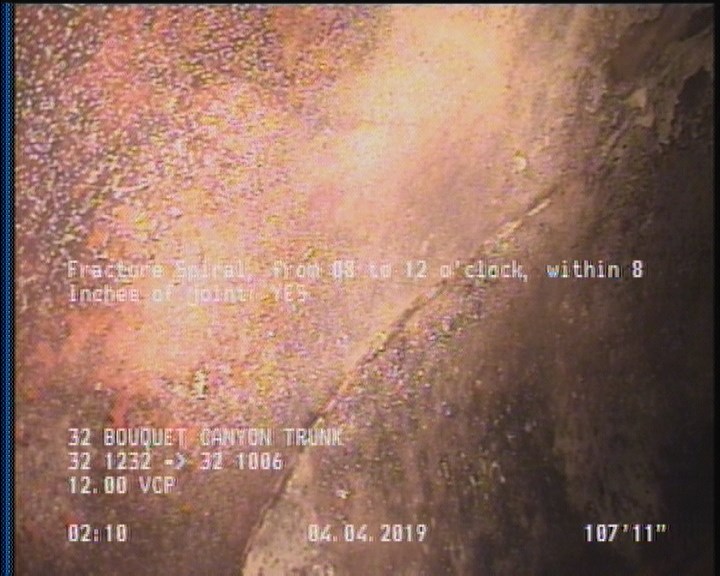

108 ft. - Fracture Spiral, from 08 to 12 o'clock, within 8 inches of joint: YES

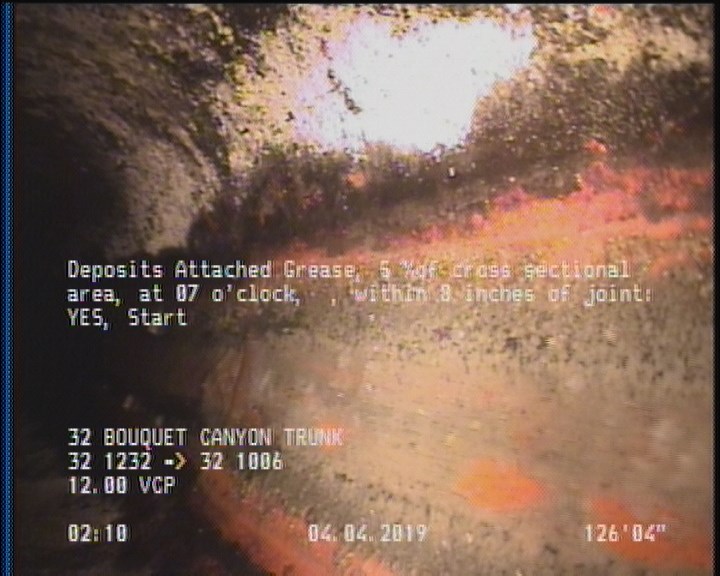

124 ft. - Deposits Attached Grease, 5 %of cross sectional area, at 07 o'clock, , within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 310.6 | CM | — |
| 0 | AMH | 32 1232 |
| 158.7 | TFC | — |
| 311.4 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 257.8 | TBA | — |
| 311.4 | AMH | 32 1006 |
| 124 | DAGS | — |
| 237.7 | TFC | — |
| 310.6 | DAGS | — |
| 68.4 | CM | — |
| 89.8 | TFA | — |
| 0 | MWL | — |
| 103.5 | FM | — |
| 108 | FS | — |
Properties (6)
- additional_info
- SC366215
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-04-04T02:02:22-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
