Wastewater/Activity/PacpInspection/1.0Mar 29, 2019, 09:44 AM
32 1004_32 1003 _03292019_025539.mp4
- Date
- 03/29/2019
- W/O
- 756097
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00841
- PipeID
- P19450
- Time
- 2:44 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6439
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- RFIR_WO_756097_TV32049_MAR2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 32 1004
- Downstream MH
- 32 1003
- Dir. of Survey
- Downstream
- Length Surveyed
- 345.2 ft.
- Total Length
- 345.2 ft.
- Structural Index
- 3
- Structural Quick
- 3M2M
- Structural Rating
- 345
- O&M Index
- 2
- O&M Quick
- 412M
- O&M Rating
- 142
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 487
Observation photos (3)

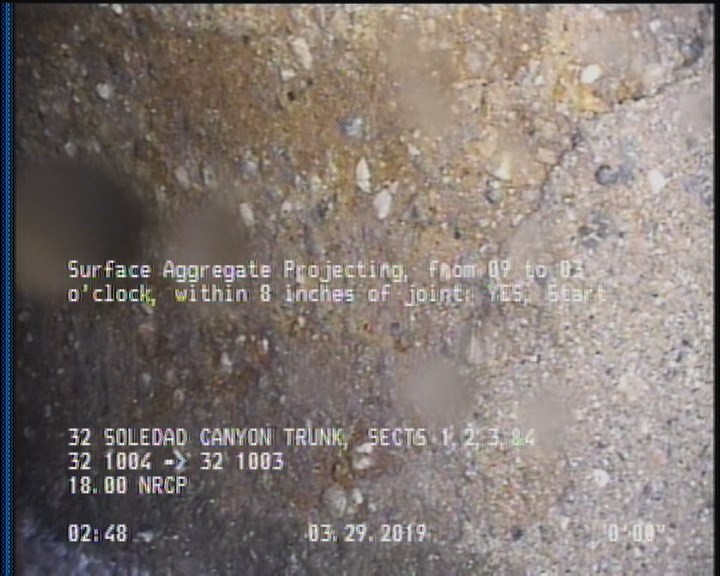

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

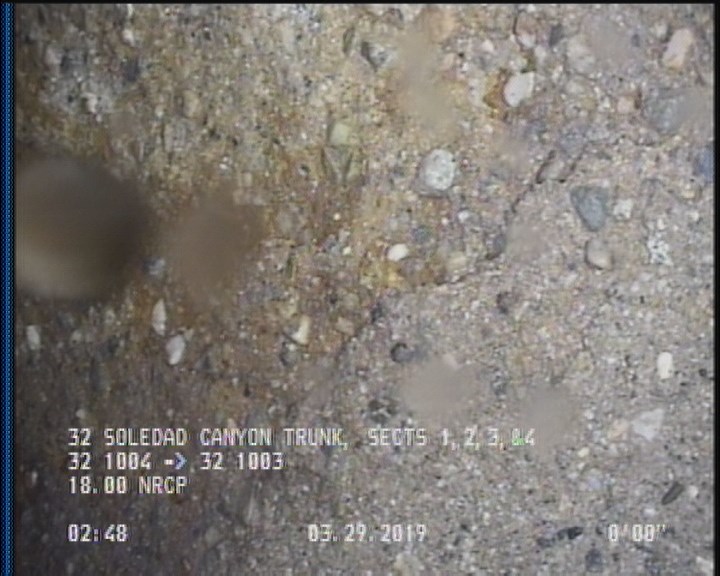

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

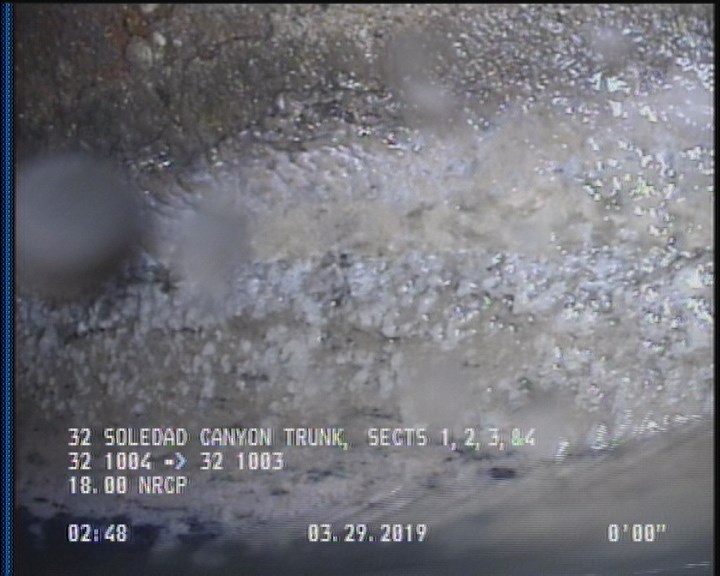

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 345.1 | DAGS | — |
| 2 | SAP | — |
| 0 | AMH | 32 1004 |
| 345.2 | AMH | 32 1003 |
| 0 | MWL | — |
| 345.1 | SSS | — |
| 345.1 | SAP | — |
| 0 | MWM | — |
| 2 | SSS | — |
| 2 | DAGS | — |
Properties (5)
- additional_info
- SC366207
- customer
- LACSD
- datetime
- 2019-03-29T02:44:27-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
