Wastewater/Activity/PacpInspection/1.0Apr 2, 2019, 05:12 AM
20 0073_20 0072_04012019_222828.mp4
- Date
- 04/01/2019
- W/O
- 756009
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00742
- PipeID
- P18994
- Time
- 10:12 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6442
- Sewer Name
- 20 TRUNK "A"
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- RFIR_WO_756009_TV20023_MAR2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 20 0072
- Downstream MH
- 20 0073
- Dir. of Survey
- Upstream
- Length Surveyed
- 151.3 ft.
- Total Length
- 151.3 ft.
- Structural Index
- 3
- Structural Quick
- 3E2E
- Structural Rating
- 150
- O&M Index
- 2
- O&M Quick
- 2E00
- O&M Rating
- 58
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 208
Observation photos (2)
2 ft. - Surface Aggregate Projecting, from 12 to 12 o'clock, within 8 inches of joint: YES, Start

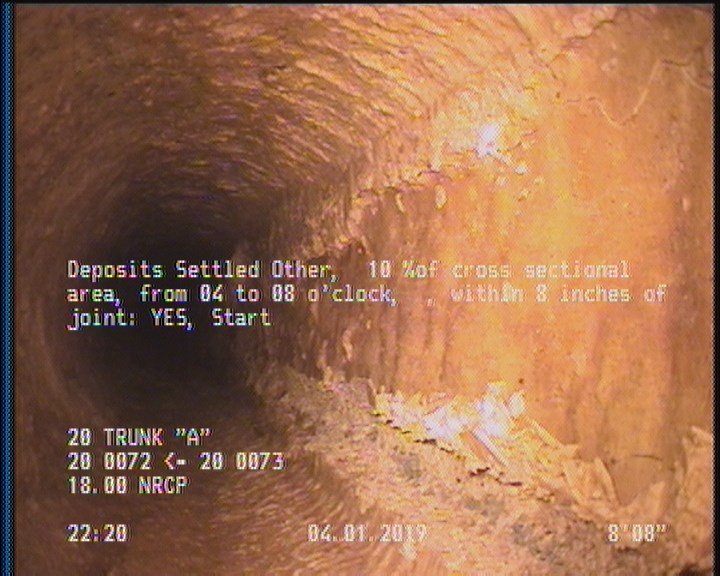

8.7 ft. - Deposits Settled Other, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 132.9 | TFC | — |
| 8.7 | DSZ | — |
| 33.1 | TFC | — |
| 151.3 | SSS | — |
| 2 | SAP | — |
| 0 | AMH | 20 0072 |
| 151.3 | MSA | REVERSAL COMPLETE. |
| 151.3 | DSZ | — |
| 2 | SSS | — |
| 0 | MWL | — |
| 151.3 | SAP | — |
| 85.3 | TFC | — |
Properties (6)
- additional_info
- SC366210
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-04-01T22:12:56-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
