Wastewater/Activity/PacpInspection/1.0Mar 14, 2019, 09:47 AM
20 0073_20 0072_03142019_030208.mp4
- Date
- 03/14/2019
- W/O
- 756009
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00742
- PipeID
- P18994
- Time
- 2:47 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6426
- Sewer Name
- 20 TRUNK "A"
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- RFIR_WO_756009_TV20023_MAR2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 20 0073
- Downstream MH
- 20 0072
- Dir. of Survey
- Downstream
- Length Surveyed
- 221.1 ft.
- Total Length
- 221.1 ft.
- Structural Index
- 3
- Structural Quick
- 3H2H
- Structural Rating
- 220
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 220
Observation photos (2)

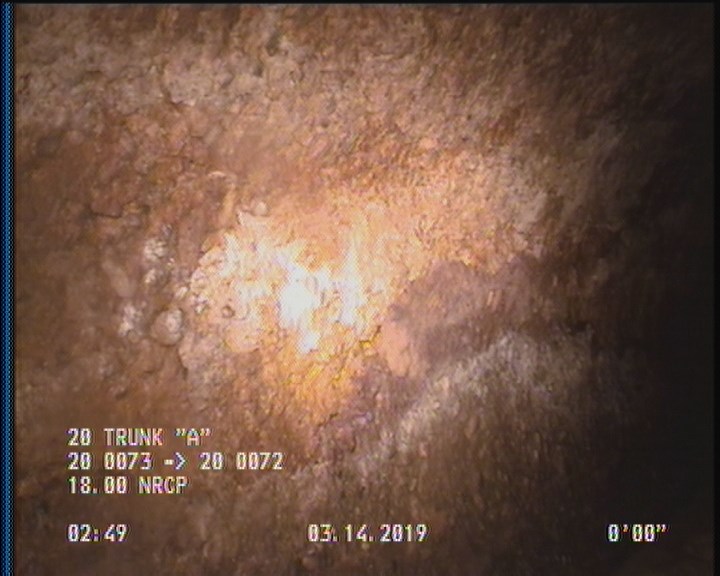

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

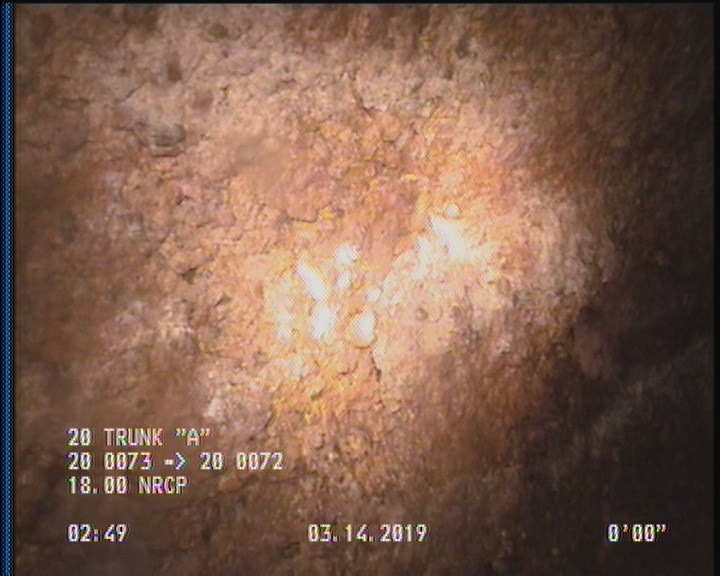

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 20 0073 |
| 36 | TFC | — |
| 0 | MWL | — |
| 221.1 | MSA | WILL COMPLETE FROM D/S MH. |
| 136.5 | TFC | — |
| 2 | SSS | — |
| 184.6 | TFC | — |
| 221.1 | SAP | — |
| 84.5 | TFC | — |
| 2 | SAP | — |
| 221.1 | SSS | — |
Properties (6)
- additional_info
- SC365943
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-03-14T02:47:43-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
