Wastewater/Activity/PacpInspection/1.0Mar 26, 2019, 08:32 AM
29 0355_29 0354 _03262019_014054.mp4
- Date
- 03/26/2019
- W/O
- 755925
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z01017
- PipeID
- P24375
- Time
- 1:32 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6495
- Sewer Name
- 29 PACIFIC COAST HIGHWAY SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- RFIR_WO_755925_TV29105_MAR2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0355
- Downstream MH
- 29 0354
- Dir. of Survey
- Downstream
- Length Surveyed
- 116.1 ft.
- Total Length
- 116.1 ft.
- Structural Index
- 5
- Structural Quick
- 5141
- Structural Rating
- 9
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (2)

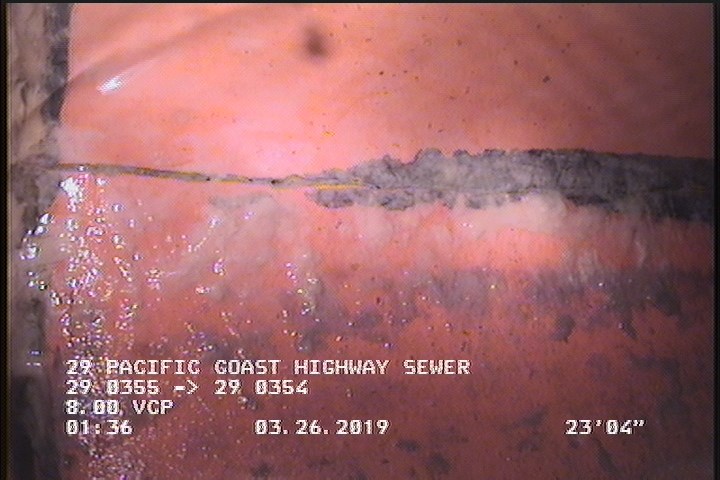

23.3 ft. - Fracture Multiple, from 05 to 08 o'clock, within 8 inches of joint: YES

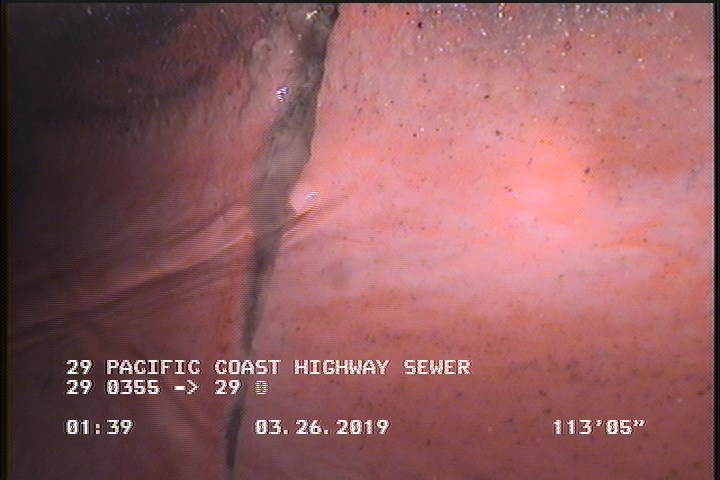

113.3 ft. - Broken, from 12 to 12 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 113.3 | B | — |
| 116.1 | AMH | 29 0354 |
| 23.3 | FM | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | 29 0355 |
Properties (5)
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2019-03-26T01:32:40-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
