Wastewater/Activity/PacpInspection/1.0Mar 27, 2019, 08:56 AM
29 0227_29 0226 _03272019_022921.mp4
- Date
- 03/27/2019
- W/O
- 755924
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z01020
- PipeID
- P24129
- Time
- 1:56 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6500
- Sewer Name
- 29 WALNUT AVENUE SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- RFIR_WO_755924_TV29098_MAR2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0227
- Downstream MH
- 29 0226
- Dir. of Survey
- Downstream
- Length Surveyed
- 344 ft.
- Total Length
- 344 ft.
- Structural Index
- 4
- Structural Quick
- 5241
- Structural Rating
- 18
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 22
Observation photos (6)

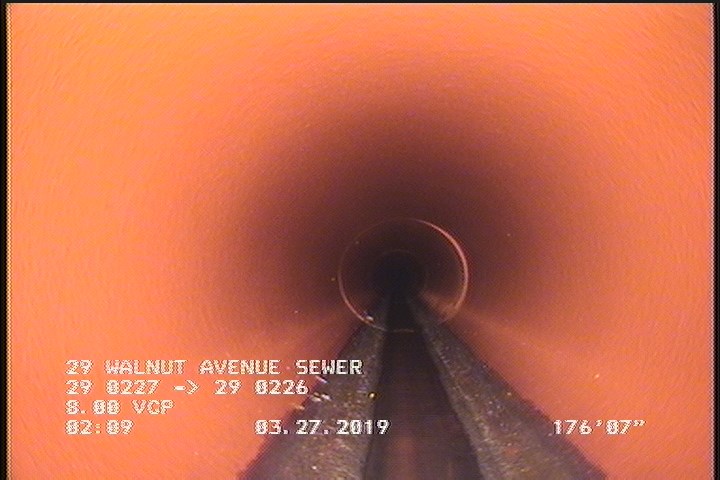

176.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

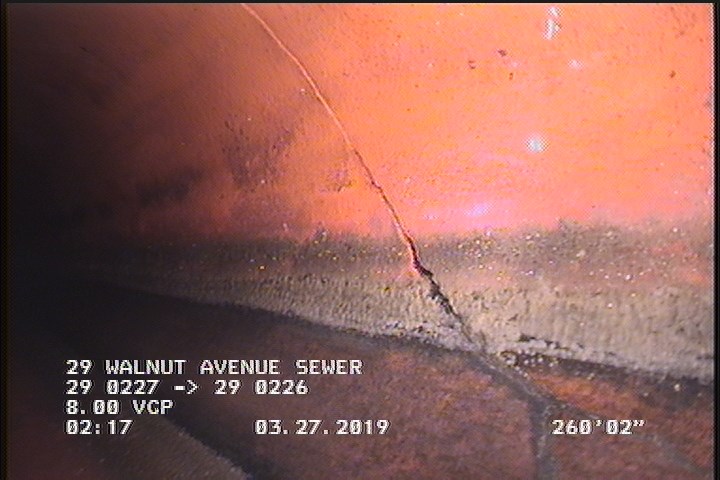

260 ft. - Broken, from 11 to 05 o'clock, within 8 inches of joint: YES

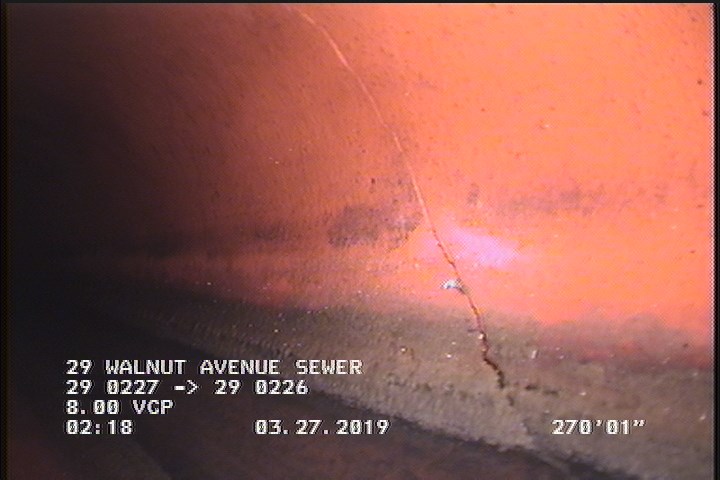

269.9 ft. - Fracture Multiple, from 12 to 05 o'clock, within 8 inches of joint: YES

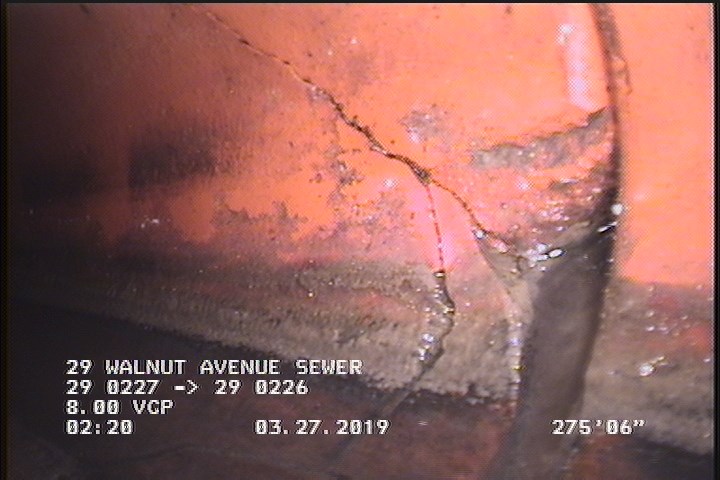

275.4 ft. - Broken, from 12 to 12 o'clock, within 8 inches of joint: YES

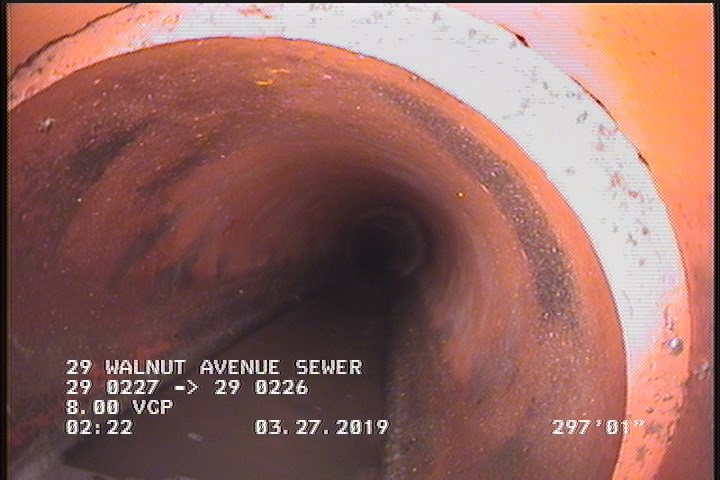

296.9 ft. - Joint Offset Medium

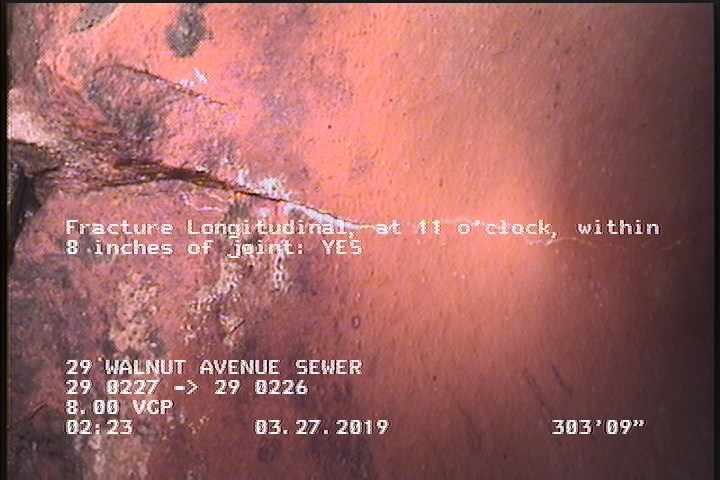

303.6 ft. - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 197.3 | TFC | — |
| 0 | AMH | 29 0227 |
| 275.4 | B | — |
| 176.5 | DAGS | — |
| 269.9 | FM | — |
| 303.6 | FL | — |
| 98.2 | TFC | — |
| 260 | B | — |
| 0 | MWM | — |
| 344 | DAGS | — |
| 295.1 | LLD | — |
| 344 | AMH | 29 0226 |
| 0 | MWL | — |
| 296.9 | JOM | — |
Properties (5)
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2019-03-27T01:56:30-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
