Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 1, 2019, 04:01 PM

  • A 0329_A 0328_512019_093619.mp4

  • A 0329_A 0328_512019_104417.mp4

Date
05/01/2019
W/O
0767441
Weather
Dry
Operator/Surveyor
BRAR
Sewer ID
Z00325
PipeID
P08239
Time
9:01 AM
Certificate
U-0618-07030022
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7973
Sewer Name
A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
22
Purpose
Capital Improvement Program Assesment
Project
20190501SB_JOA_1A_SAN_JOSE_CREEK_WRP_INT
Material
Reinforced Concrete Pipe
Shape
Circular
Height
60 in.
Upstream MH
A 0329
Downstream MH
A 0328
Dir. of Survey
Downstream
Length Surveyed
663 ft.
Total Length
663 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole A 0329 to A 0328
MH: A 0329MH: A 0328downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:34 AM0 ft. MWM - Water Mark, 30 %of cross sectional area0.2 ft. MWL - Water Level, 25 %of cross sectional area8.1 ft. LFW - Lining Failure Wrinkled, from 02 to 05 o'clock, within 8 inches of joint: YES, Start39.9 ft. MGP - General Photograph81.1 ft. MGP - General Photograph150.4 ft. MGP - General Photograph220.9 ft. MGP - General Photograph312.7 ft. MGP - General Photograph358.6 ft. MGP - General Photograph601.7 ft. MGP - General Photograph660 ft. LFW - Lining Failure Wrinkled, from 02 to 05 o'clock, within 8 inches of joint: YES, Finish660.2 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)663 ft. AMH - Downstream Manhole, Survey Ends - 11:05 AM

Observation photos (8)

  • Lining Failure Wrinkled, from 02 to 05 o'clock, within 8 inches of joint: YES, Start

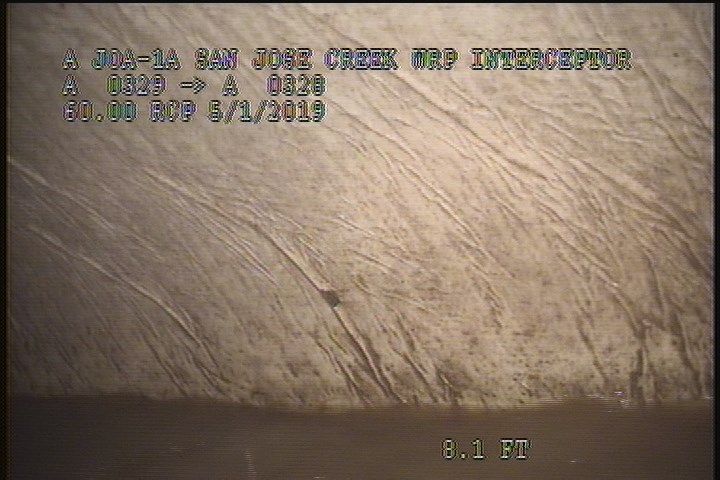

    8.1 ft. - Lining Failure Wrinkled, from 02 to 05 o'clock, within 8 inches of joint: YES, Start

  • General Photograph

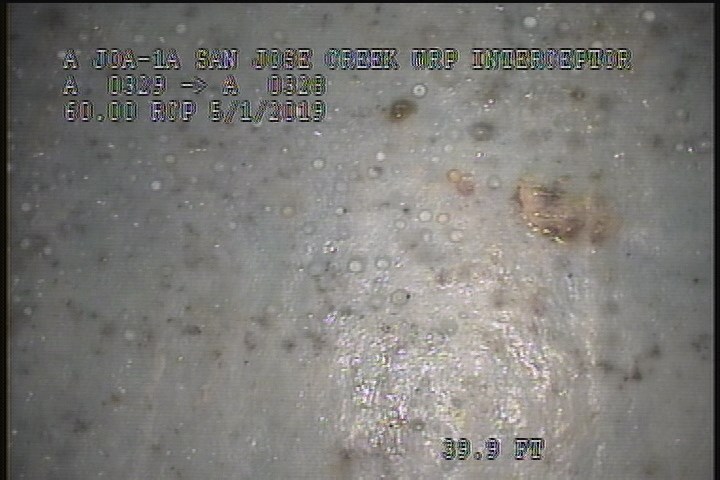

    39.9 ft. - General Photograph

  • General Photograph

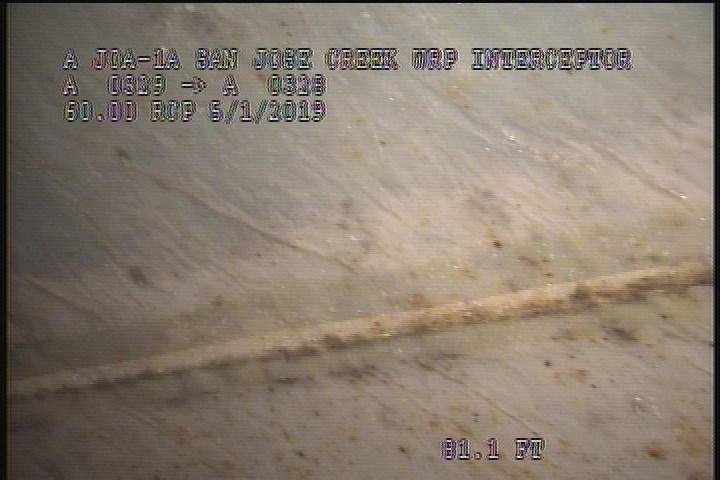

    81.1 ft. - General Photograph

  • General Photograph

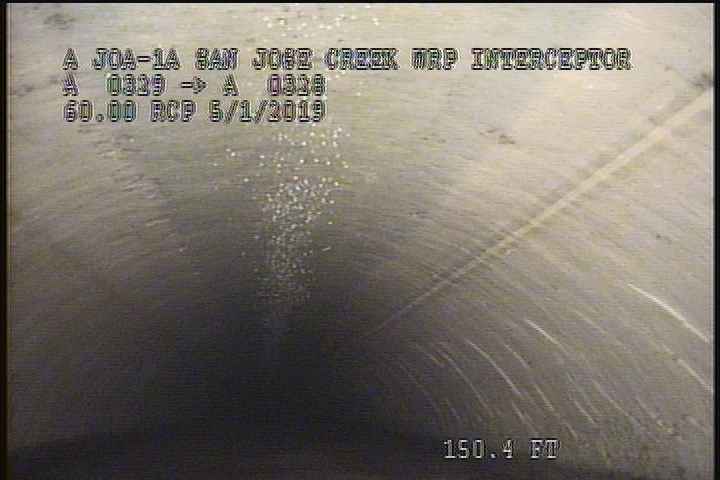

    150.4 ft. - General Photograph

  • General Photograph

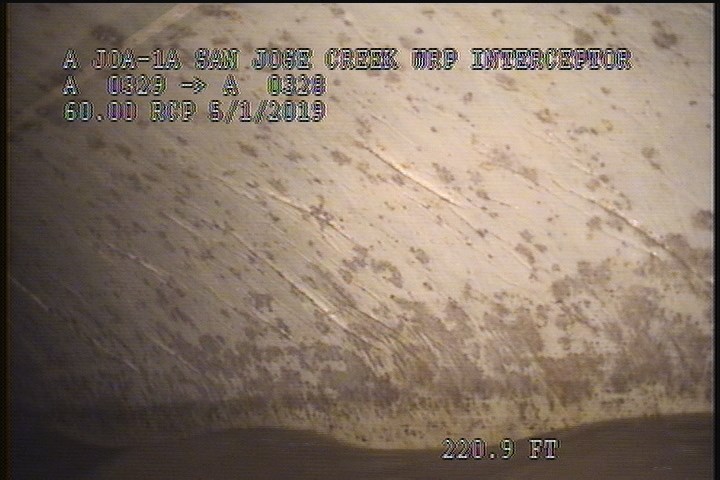

    220.9 ft. - General Photograph

  • General Photograph

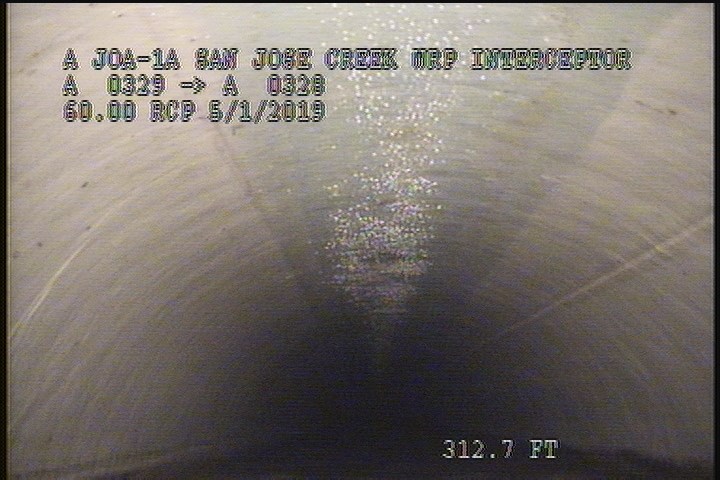

    312.7 ft. - General Photograph

  • General Photograph

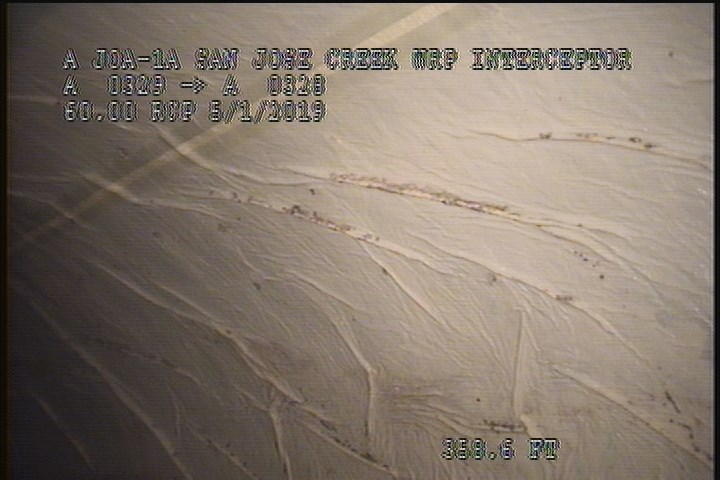

    358.6 ft. - General Photograph

  • General Photograph

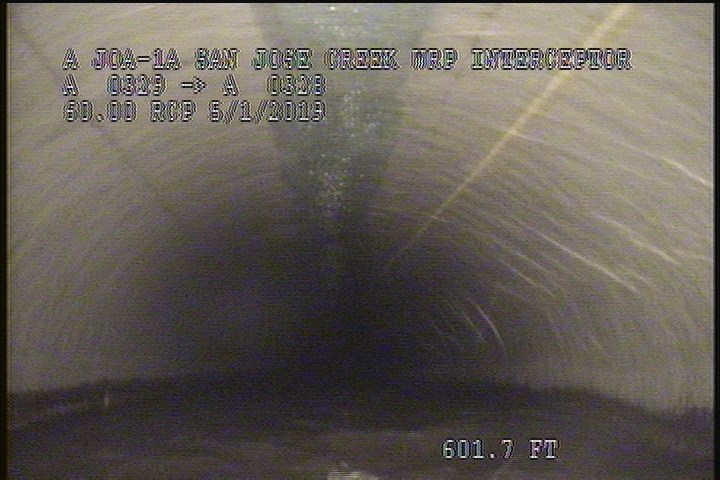

    601.7 ft. - General Photograph

All inspections of P08239Work order 0767441

Observations (14)

DistanceCodeObservation
8.1LFW—
81.1MGP—
39.9MGP—
312.7MGP—
0AMH9:34 AM
0MWM—
601.7MGP—
663AMH11:05 AM
150.4MGP—
220.9MGP—
660LFW—
0.2MWL—
660.2MGOGREASE THROUGHOUT THE REACH (5%)
358.6MGP—

Properties (6)

custom_field_two
4
customer
LACSD
datetime
2019-05-01T09:01:47-07:00
documentation
FRANKLIN, CASTILLO, BRAR
is_lateral_inspection
false
year_laid
19800403
