Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 26, 2019, 06:02 PM

  • A 0311_A 0310_4262019_111340.mp4

Date
04/26/2019
W/O
0767441
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00325
PipeID
P08221
Time
11:02 AM
Certificate
PENDING
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7971
Sewer Name
A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Capital Improvement Program Assesment
Project
20190426MI_JOA_1A_SAN_JOSE_CREEK_WRP_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
63 in.
Upstream MH
A 0311
Downstream MH
A 0310
Dir. of Survey
Downstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
5
O&M Quick
5141
O&M Rating
9
Overall Index
5
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole A 0311 to A 0310
MH: A 0311MH: A 0310downstream0 ft. MGO - General Observation - AIRLINE0 ft. AMH - Upstream Manhole, Survey Begins - 11:20AM0 ft. MWM - Water Mark, 100 %of cross sectional area0 ft. LD - Alignment Down, 45 %0 ft. MWL - Water Level, 100 %of cross sectional area2.1 ft. MSA - Survey Abandoned - HIGH WATER LEVEL

Observation photos (3)

  • General Observation - AIRLINE

    0 ft. - General Observation - AIRLINE

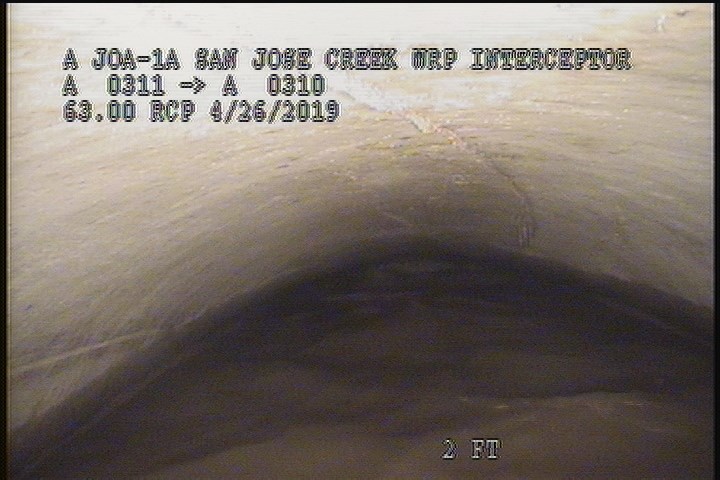

  • Alignment Down, 45 %

    0 ft. - Alignment Down, 45 %

  • Survey Abandoned - HIGH WATER LEVEL

    2.1 ft. - Survey Abandoned - HIGH WATER LEVEL

All inspections of P08221Work order 0767441

Observations (6)

DistanceCodeObservation
0MGOAIRLINE
0AMH11:20AM
0MWM—
0LD—
2.1MSAHIGH WATER LEVEL
0MWL—

Properties (6)

additional_info
VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
custom_field_two
5
customer
LACSD
datetime
2019-04-26T11:02:05-07:00
documentation
IGNACIO, FRANKLIN, BRAR, CASTILLO
is_lateral_inspection
false
