Wastewater/Activity/PacpInspection/1.0Apr 26, 2019, 05:02 PM
A 0316_A 0315_4262019_101114.mp4
- Date
- 04/26/2019
- W/O
- 0767441
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00325
- PipeID
- P08226
- Time
- 10:02 AM
- Certificate
- PENDING
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7971
- Sewer Name
- A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 28
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190426MI_JOA_1A_SAN_JOSE_CREEK_WRP_INTERCEPTOR
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Upstream MH
- A 0315
- Downstream MH
- A 0316
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 5
- O&M Quick
- 5141
- O&M Rating
- 9
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (4)

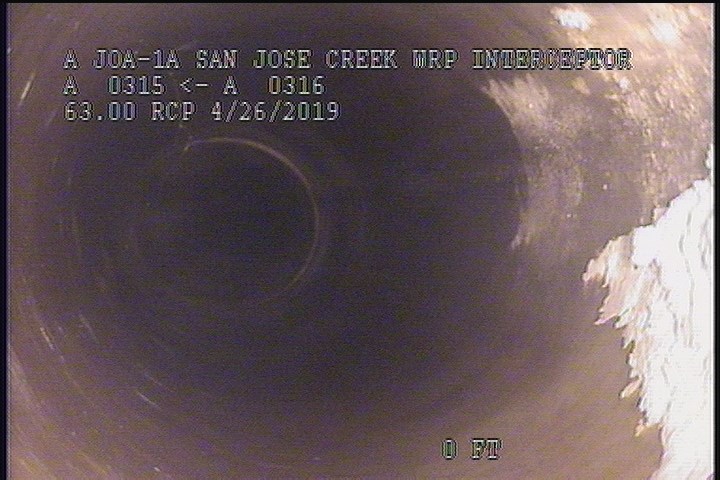

0 ft. - General Observation - AIRLINE

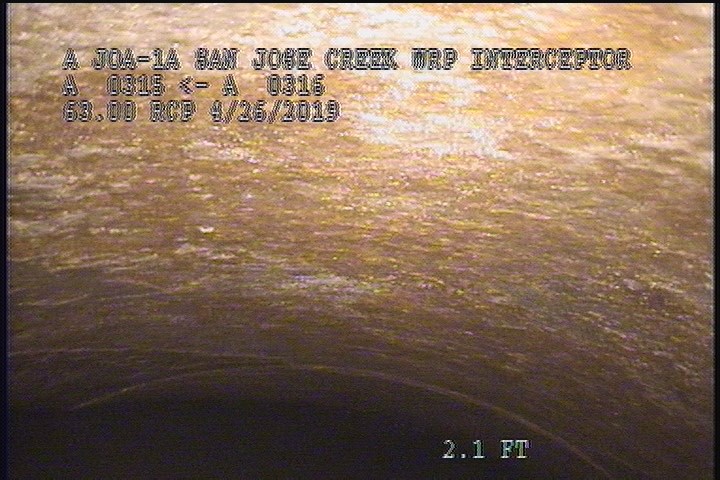

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - MAG COAT, 75%

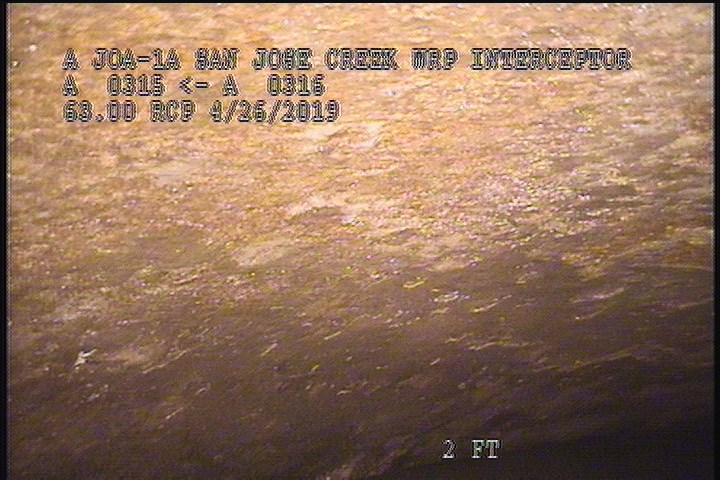

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

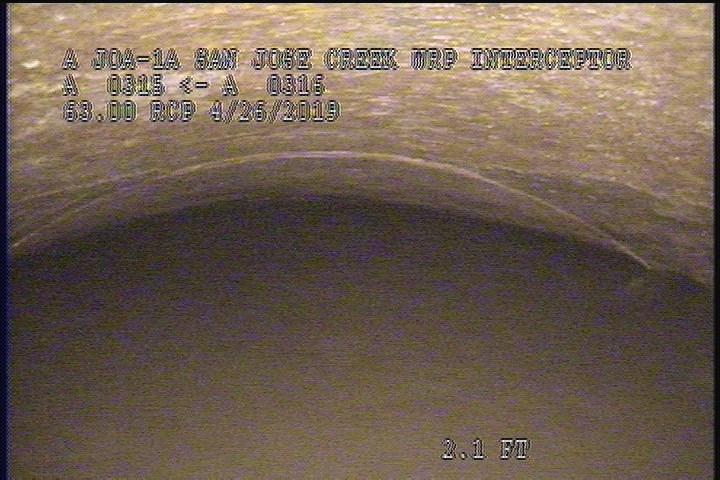

2.1 ft. - Survey Abandoned - HIGH WATER LEVEL
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | MSA | HIGH WATER LEVEL |
| 0 | AMH | 10:15AM |
| 0 | MGO | AIRLINE |
| 2 | SZ | MAG COAT, 75% |
| 2 | SSS | — |
| 0 | LU | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 2 | SAV | — |
Properties (6)
- additional_info
- VIEW OF THE UPLEG PIPE OF THE D/S SIPHON
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-04-26T10:02:07-07:00
- documentation
- IGNACIO, FRANKLIN, BRAR, CASTILLO
- is_lateral_inspection
- false
