Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 30, 2019, 04:31 PM

  • A 0329_A 0328_4302019_102410.mp4

Date
04/30/2019
W/O
0767441
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00325
PipeID
P08239
Time
9:31 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7972
Sewer Name
A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Capital Improvement Program Assesment
Project
20190425DF_JOA_1A_SAN_JOSE_CREEK_WRP_INT
Material
Reinforced Concrete Pipe
Shape
Circular
Height
60 in.
Upstream MH
A 0329
Downstream MH
A 0328
Dir. of Survey
Downstream
Length Surveyed
662 ft.
Total Length
662 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole A 0329 to A 0328
MH: A 0329MH: A 0328downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:37 AM0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 30 %of cross sectional area2 ft. LFW - Lining Failure Wrinkled, from 02 to 05 o'clock, within 8 inches of joint: YES, Start150.4 ft. MGP - General Photograph275.9 ft. MGP - General Photograph300.4 ft. MGP - General Photograph361.4 ft. MGP - General Photograph450.5 ft. MGP - General Photograph600.5 ft. MGP - General Photograph660 ft. LFW - Lining Failure Wrinkled, from 02 to 05 o'clock, within 8 inches of joint: YES, Finish660 ft. MGO - General Observation - Mag Coat xx% 9 to 3 o' Clock Throughout662 ft. AMH - Downstream Manhole, Survey Ends - 10:55 AM

Observation photos (8)

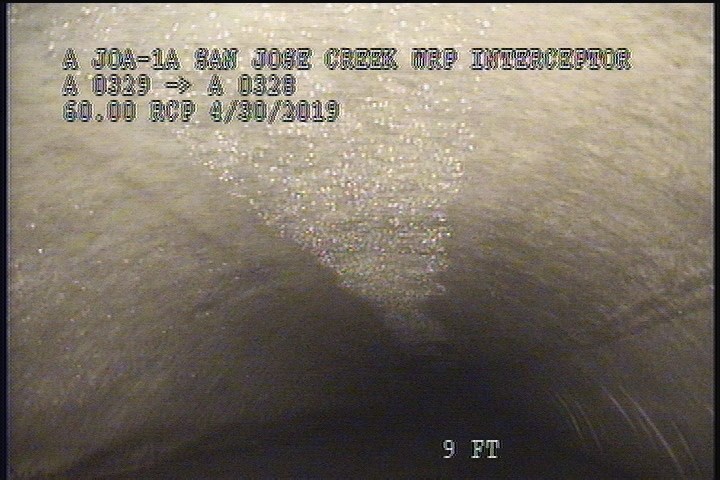

  • Water Level, 30 %of cross sectional area

    0 ft. - Water Level, 30 %of cross sectional area

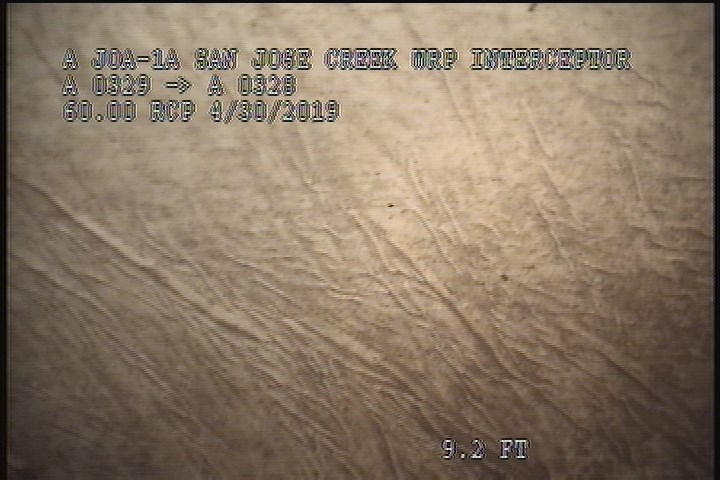

  • Lining Failure Wrinkled, from 02 to 05 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Lining Failure Wrinkled, from 02 to 05 o'clock, within 8 inches of joint: YES, Start

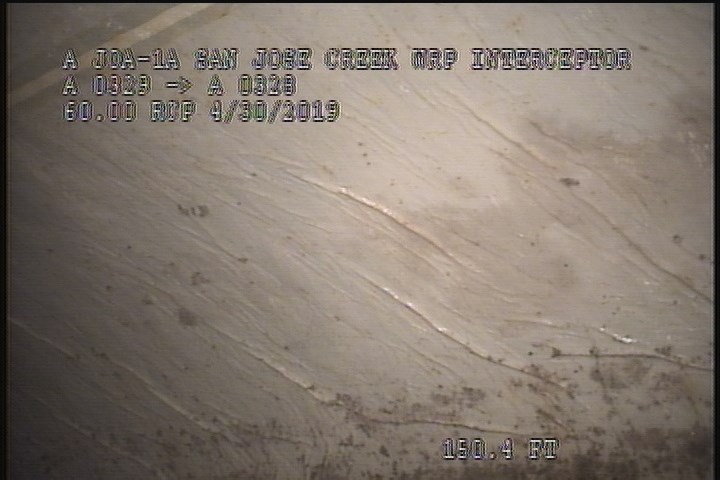

  • General Photograph

    150.4 ft. - General Photograph

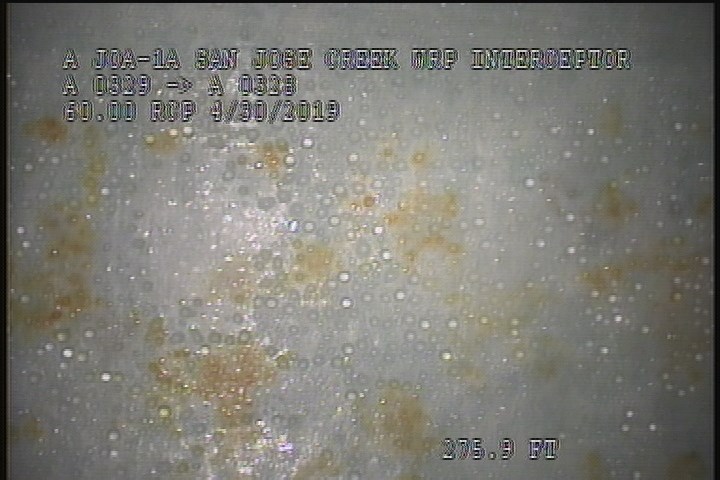

  • General Photograph

    275.9 ft. - General Photograph

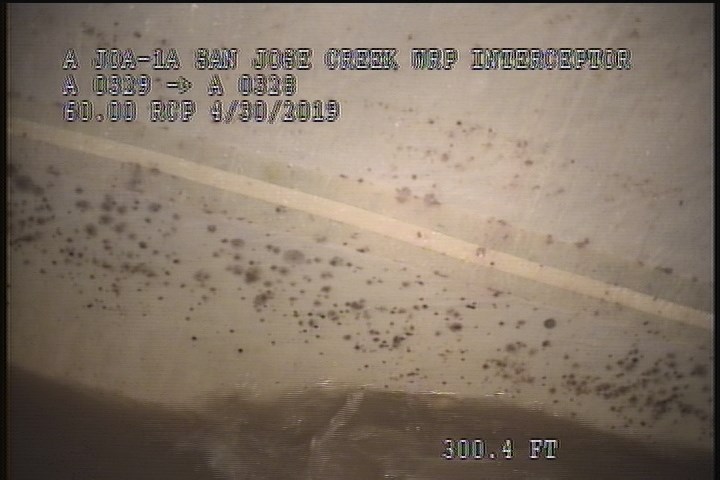

  • General Photograph

    300.4 ft. - General Photograph

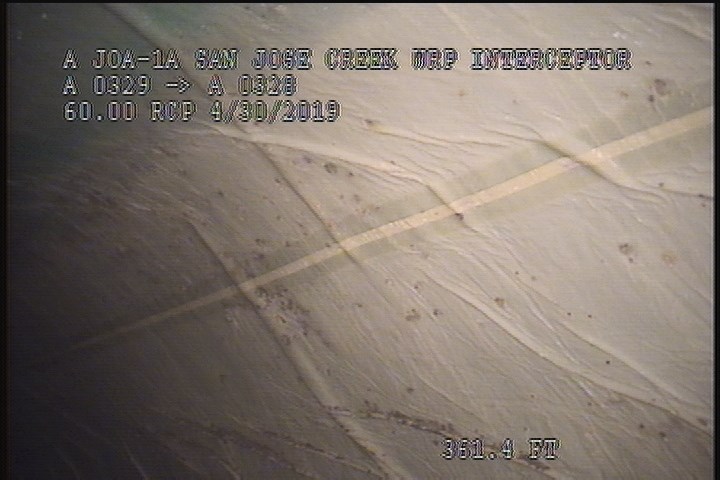

  • General Photograph

    361.4 ft. - General Photograph

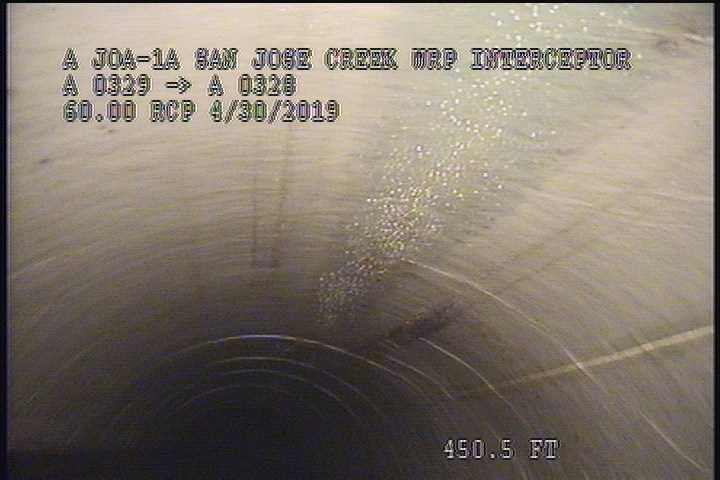

  • General Photograph

    450.5 ft. - General Photograph

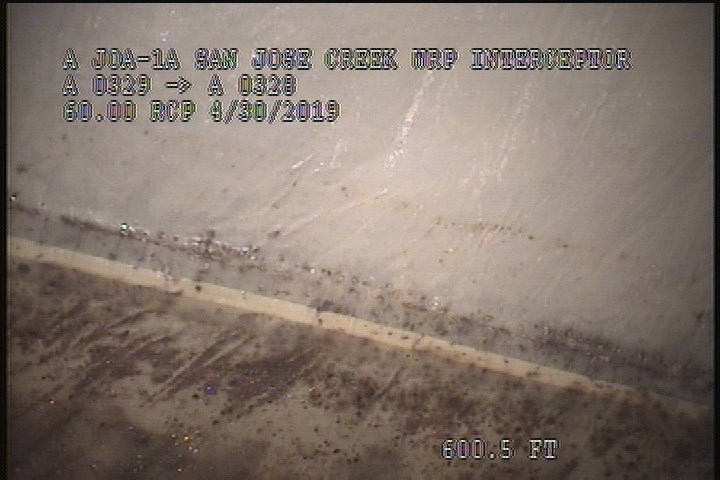

  • General Photograph

    600.5 ft. - General Photograph

All inspections of P08239Work order 0767441

Observations (13)

DistanceCodeObservation
600.5MGP—
660LFW—
2LFW—
0AMH9:37 AM
150.4MGP—
660MGOMag Coat xx% 9 to 3 o' Clock Throughout
0MWM—
450.5MGP—
361.4MGP—
662AMH10:55 AM
275.9MGP—
300.4MGP—
0MWL—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2019-04-30T09:31:57-07:00
documentation
FRANKLIN, CASTILLO, BRAR
is_lateral_inspection
false
