Wastewater/Activity/PacpInspection/1.0Apr 24, 2019, 05:52 PM
A 0328_A 0327_4242019_105519.mp4
- Date
- 04/24/2019
- W/O
- 0767441
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00325
- PipeID
- P08238
- Time
- 10:52 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7969
- Sewer Name
- A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 22
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190424DF_JOA_1A_SAN_JOSE_CREEK_WRP_INT
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 60 in.
- Upstream MH
- A 0327
- Downstream MH
- A 0328
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 5
- O&M Quick
- 5141
- O&M Rating
- 9
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (2)

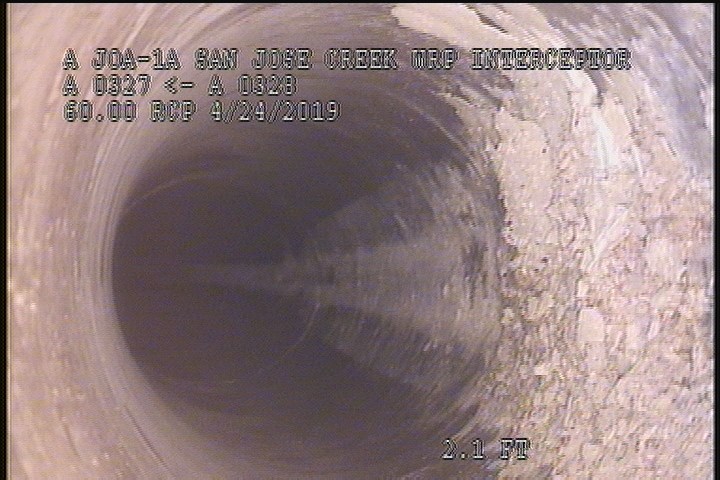

0 ft. - General Photograph - AIRLINE

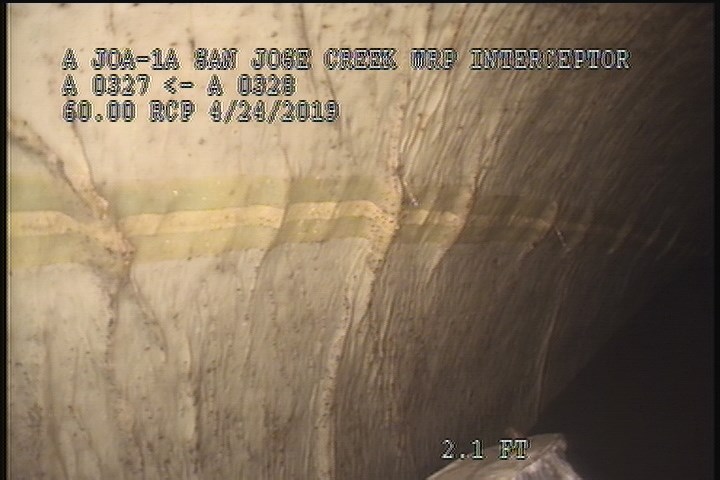

2 ft. - Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | LU | — |
| 2.1 | MSA | HIGH WATER |
| 0 | MGP | AIRLINE |
| 0 | MWL | — |
| 2 | LFW | — |
| 0 | AMH | 10:52 AM |
| 0 | MGO | Grease Throughout The Reach (5%) |
Properties (6)
- additional_info
- VIEW OF THE UPLEG FROM THE D/S SIPHON
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-04-24T10:52:00-07:00
- documentation
- FRANKLIN, CASTILLO, IGNACIO
- is_lateral_inspection
- false
