Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 23, 2019, 10:18 AM

  • Section#3_05 2080_05 2079__4232019__I0138.mp4

Date
04/23/2019
W/O
0762539
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00456
PipeID
P07223
Time
3:18 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0138
Sewer Name
05 HAWTHORNE-LAWNDALE-TORRANCE TRUNK
City
LAWNDALE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
17
Purpose
Routine Assessment
Project
20190423_HAWTHORNE_LAWDALE_TORRANCE_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
42 in.
Upstream MH
05 2080
Downstream MH
05 2079
Dir. of Survey
Downstream
Length Surveyed
40.8 ft.
Total Length
40.8 ft.
Structural Index
3
Structural Quick
3927
Structural Rating
41
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
41
Pipe schematic from manhole 05 2080 to 05 2079
MH: 05 2080MH: 05 2079downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:45AM2 ft. MGO - General Observation - 60% MAG COAT START2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING COMCRETE25 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGT40.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG40.6 ft. MGO - General Observation - MAG COAT 60% FINISH40.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE40.8 ft. AMH - Downstream Manhole, Survey Ends - 5:55AM

Observation photos (4)

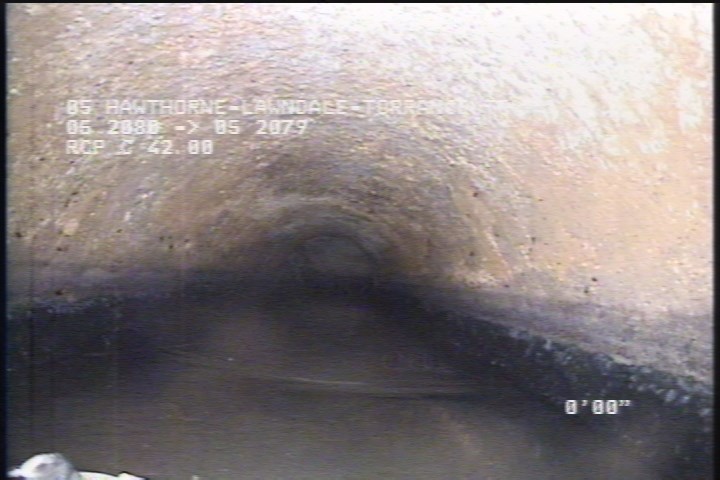

  • General Observation - 60% MAG COAT START

    2 ft. - General Observation - 60% MAG COAT START

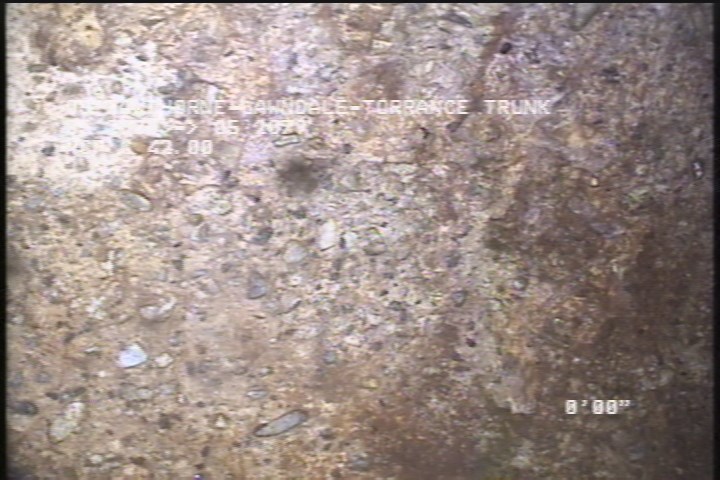

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

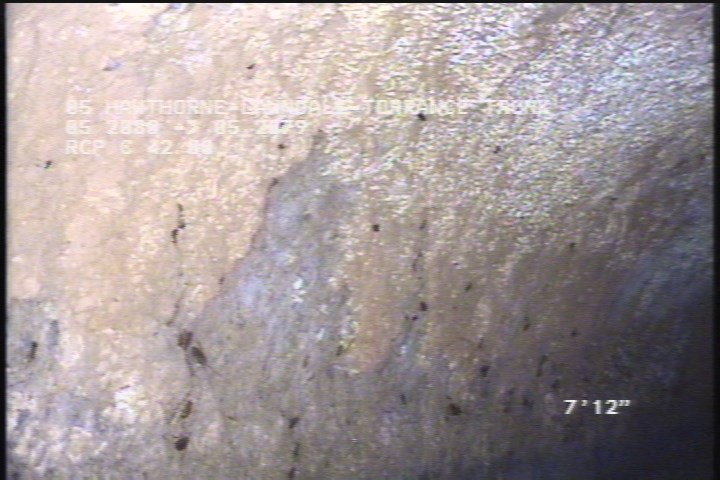

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING COMCRETE

    8 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING COMCRETE

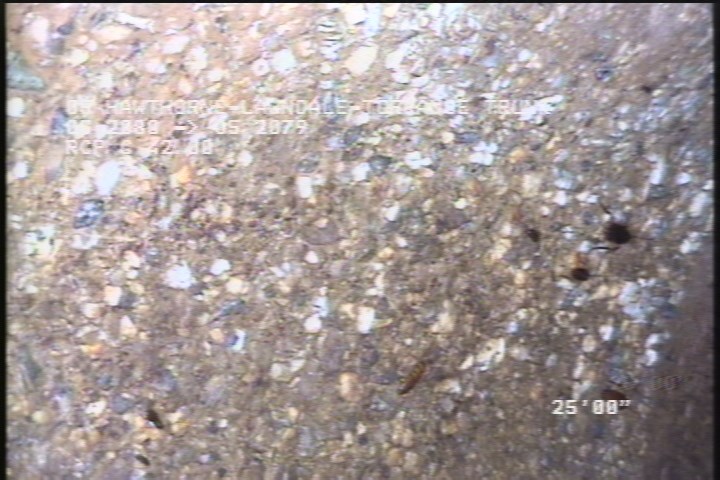

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGT

    25 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGT

All inspections of P07223Work order 0762539

Observations (11)

DistanceCodeObservation
40.6SAPSEVERE AGG
2MGO60% MAG COAT START
0MWL—
40.6MGOMAG COAT 60% FINISH
8SSSBLISTERING PEELING COMCRETE
2SAPSEVERE AGG
0MWM—
40.6SSSBLISTERING PEELING CONCRETE
40.8AMH5:55AM
25SAPSEVERE AGT
0AMH5:45AM

Properties (6)

custom_field_three
SEVERE AGG PROJECTING-60% MAG COAT
custom_field_two
3
customer
LACSD
datetime
2019-04-23T03:18:23-07:00
documentation
MARTIN,REVELES,OLIVER 111,RUVALCABA
is_lateral_inspection
false
