Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 22, 2019, 07:37 AM

  • 18 0448_18 0447_4222019_005348.mp4

Date
04/22/2019
W/O
0767446
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00675
PipeID
P14299
Time
12:37 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1185
Sewer Name
18 FLORENCE AVENUE TRUNK
City
SANTA FE SPRINGS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
19
Purpose
Routine Assessment
Project
20190422MDM_FLORENCE_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
18 0447
Downstream MH
18 0448
Dir. of Survey
Upstream
Length Surveyed
370.8 ft.
Total Length
370.8 ft.
Structural Index
2
Structural Quick
3123
Structural Rating
9
O&M Index
2
O&M Quick
3123
O&M Rating
9
Overall Index
2
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole 18 0447 to 18 0448
MH: 18 0447MH: 18 0448upstream0 ft. AMH - Downstream Manhole, Survey Ends - 1:50AM0.6 ft. MGO - General Observation - MH HAS A GREEN MOSS COAT6 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H7.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped27.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped51.5 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE51.5 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES - H52.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped78.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped96.7 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - HAIRLINE103 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped117.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open122.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped135.5 ft. MGO - General Observation - 15" VCP149.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open153.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped178 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped197.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped222.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped249.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open253.6 ft. DAZ - Deposits Attached Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - SLUDGE260.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open263.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped288 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - SLUDGE289.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open289.1 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES310.6 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - SLUDGE314.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped334.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped358.5 ft. MGO - General Observation - VCP PIPE WITH THIN WHITE COATING362.8 ft. MGO - General Observation - 15" VCP THIN WHITE COATING ON PIPE368.8 ft. MMC - Material Change, Vitrified clay pipe - START370.8 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active370.8 ft. AMH - Downstream Manhole, Survey Begins - 12:50AM370.8 ft. MWM - Water Mark, 20 %of cross sectional area370.8 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (7)

  • Material Change, Vitrified clay pipe - START

    2 ft. - Material Change, Vitrified clay pipe - START

  • General Observation - 15" VCP THIN WHITE COATING ON PIPE

    8 ft. - General Observation - 15" VCP THIN WHITE COATING ON PIPE

  • General Observation - VCP PIPE WITH THIN WHITE COATING

    12.3 ft. - General Observation - VCP PIPE WITH THIN WHITE COATING

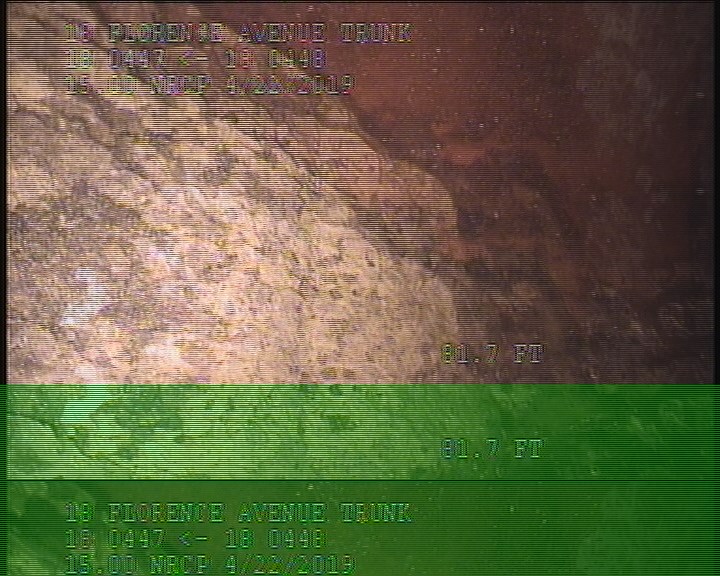

  • Deposits Attached Grease, 15 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES

    81.7 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES

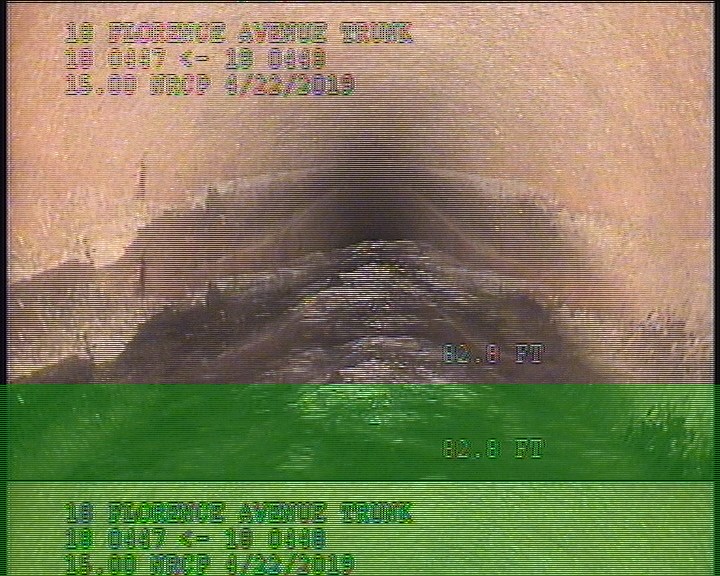

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - SLUDGE

    82.8 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - SLUDGE

  • General Observation - 15" VCP

    235.3 ft. - General Observation - 15" VCP

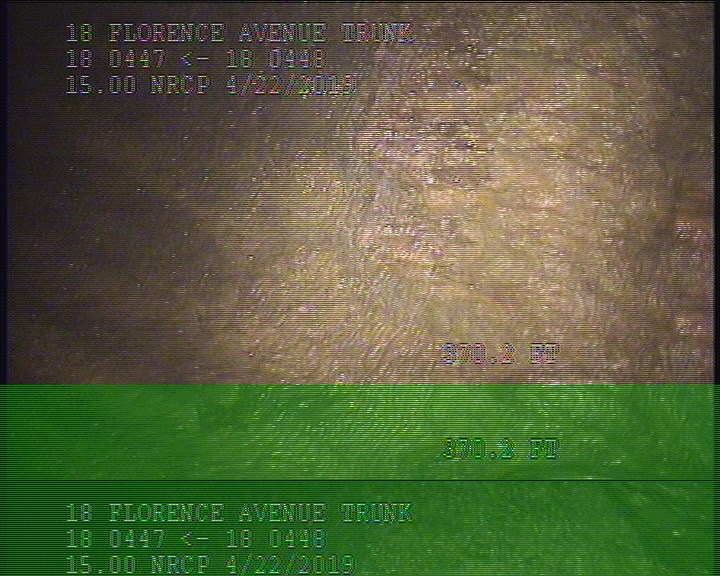

  • General Observation - MH HAS A GREEN MOSS COAT

    370.2 ft. - General Observation - MH HAS A GREEN MOSS COAT

All inspections of P14299Work order 0767446

Observations (36)

DistanceCodeObservation
36.3TFCCapped
2MMCSTART
12.3MGOVCP PIPE WITH THIN WHITE COATING
217.7TFCCapped
274.1FCHAIRLINE
235.3MGO15" VCP
81.7TFOpen
107.3TFCCapped
363TFCCapped
364.8FCH
317.9TFCCapped
81.7DAGS—
82.8DSZSLUDGE
56.7TFCCapped
0MGOConn. @ Mh, 9 O' Clock. Active
60.2DSZSLUDGE
121.7TFOpen
0AMH12:50AM
0MWM—
319.3FCHAIRLINE
173TFCCapped
247.9TFCCapped
117.2DAZSLUDGE
292.7TFCCapped
8MGO15" VCP THIN WHITE COATING ON PIPE
221.1TFOpen
267.8TFCCapped
370.8AMH1:50AM
148.4TFCCapped
192.8TFCCapped
370.2MGOMH HAS A GREEN MOSS COAT
110.6TFOpen
343TFCCapped
0MWL—
319.3FLH
253.1TFOpen

Properties (6)

custom_field_three
PIPE IS 15" VCP-FEW HAIRLINE FRACTURES
custom_field_two
4
customer
LACSD
datetime
2019-04-22T00:37:59-07:00
documentation
MARTIN,REVELES
is_lateral_inspection
false
