Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 27, 2019, 05:23 PM

  • 22 0283_22 0282_2272019_093347.mp4

Date
02/27/2019
W/O
0757008
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00793
PipeID
P16569
Time
9:23 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Jetting
Media Label
G7927
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
31
Purpose
Maintenance Related
Project
20190227DF_CAMERON_TRUNK_SECTS_1_2_3
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0283
Downstream MH
22 0282
Dir. of Survey
Downstream
Length Surveyed
297.1 ft.
Total Length
297.1 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 22 0283 to 22 0282
MH: 22 0283MH: 22 0282downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:24 AM0 ft. MWL - Water Level, 15 %of cross sectional area0.1 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. CAPPED2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start8.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - Open28.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open93.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - Open128.7 ft. MGP - General Photograph138 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - Open150 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"154.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open201.9 ft. MGP - General Photograph210.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4", 4"255.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open283.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - Open293.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish293.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish293.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish293.6 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 65% MAG294.5 ft. MGP - General Photograph - MISSING MORTAR296.1 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)296.1 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach297.1 ft. AMH - Downstream Manhole, Survey Ends - 10:06 AM

Observation photos (7)

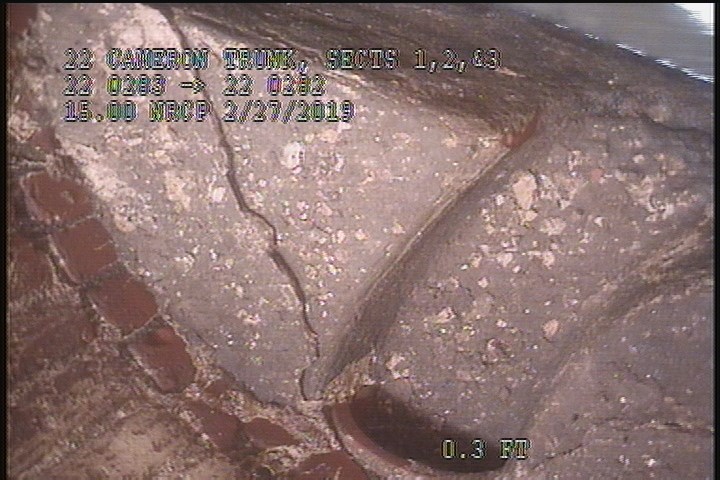

  • General Observation - Conn. @ Mh, 3 O' Clock. CAPPED

    2 ft. - General Observation - Conn. @ Mh, 3 O' Clock. CAPPED

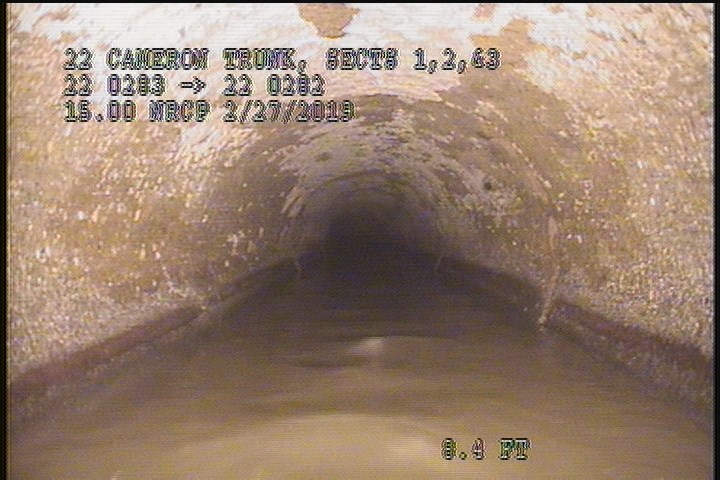

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG

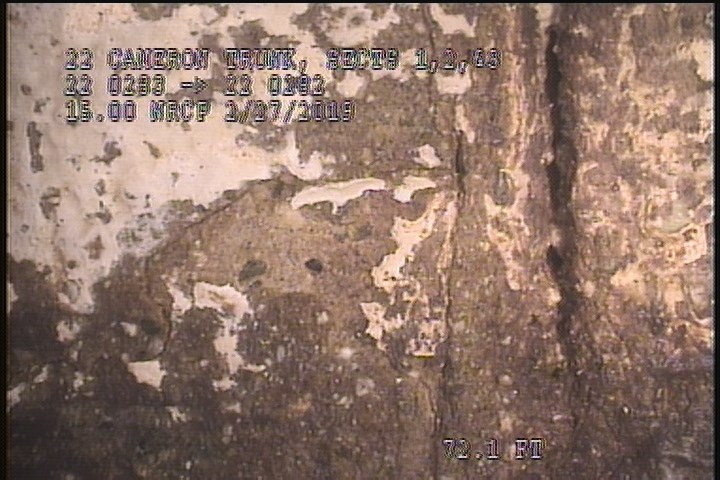

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

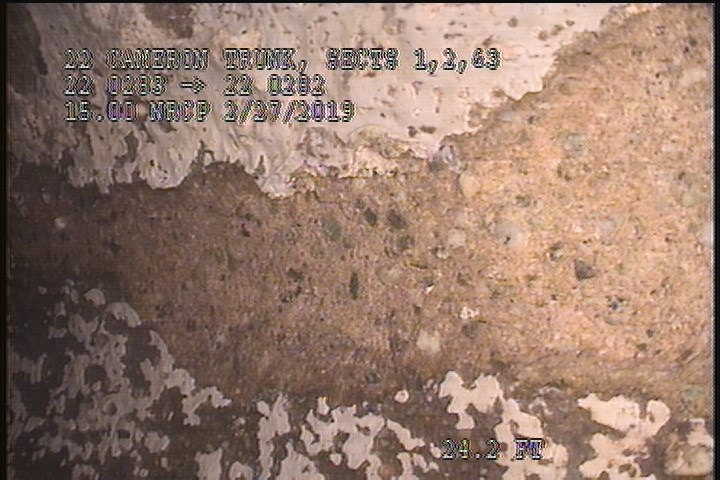

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

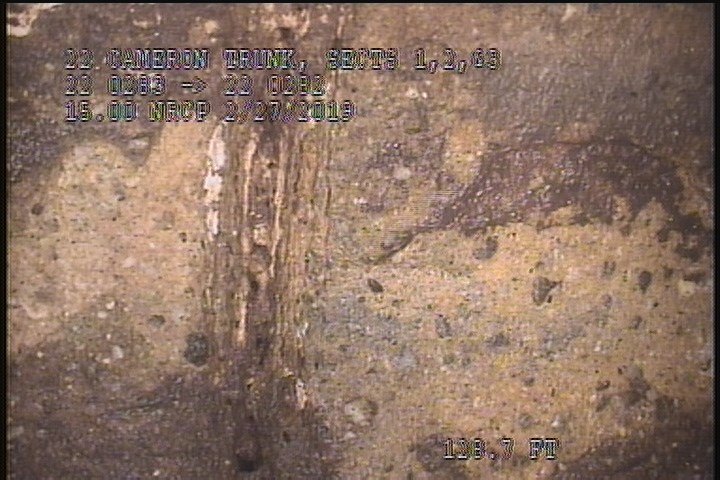

  • General Photograph

    128.7 ft. - General Photograph

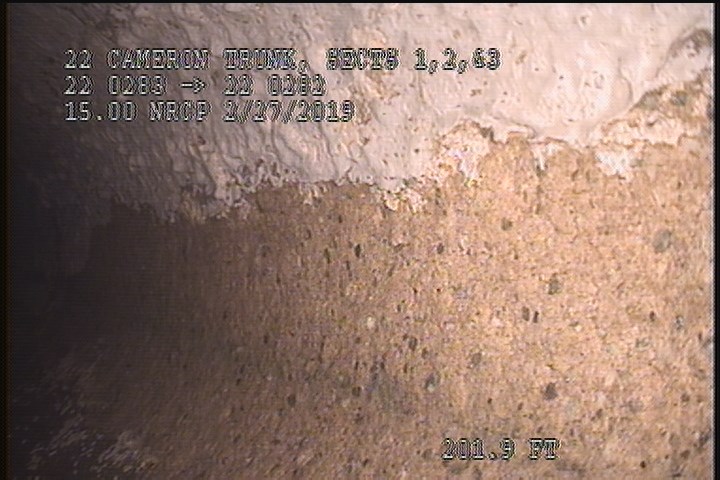

  • General Photograph

    201.9 ft. - General Photograph

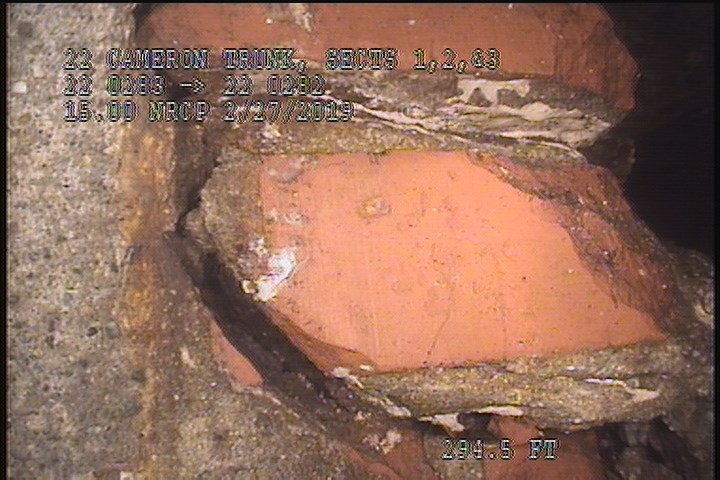

  • General Photograph - MISSING MORTAR

    294.5 ft. - General Photograph - MISSING MORTAR

All inspections of P16569Work order 0757008

Observations (27)

DistanceCodeObservation
0AMH9:24 AM
296.1MGOGREASE THROUGHOUT THE REACH (5%)
210.8TFA—
2MGOConn. @ Mh, 3 O' Clock. CAPPED
293.6SSS—
2SZ65% MAG
296.1MGOPeeling & Flaking Throughout The Reach
293.6CM—
294.5MGPMISSING MORTAR
297.1AMH10:06 AM
128.7MGP—
8.4TFOpen
201.9MGP—
2CM—
138TFOpen
2SSS—
283.7TFOpen
150TFC—
255.5TFOpen
0.1MWM—
2SAV—
293.6SAV—
293.6SZ65% MAG
93.6TFOpen
154.3TFOpen
28.9TFOpen
0MWL—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-02-27T09:23:52-08:00
documentation
FRANKLIN, IGNACIO, SHADLER
is_lateral_inspection
false
