Wastewater/Activity/PacpInspection/1.0Feb 26, 2019, 04:56 PM
D 0004_D 0003_2262019_091512.mp4
- Date
- 02/26/2019
- W/O
- 0757875
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00150
- PipeID
- P09909
- Time
- 8:56 AM
- Certificate
- U1-140-6022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7925
- Sewer Name
- D JOINT OUTFALL D - UNIT 1G(O)
- City
- CARSON
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- 20190226SHO_JOINT_OUTFALL_D_UNIT_1G
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 78 in.
- Upstream MH
- D 0003
- Downstream MH
- D 0004
- Dir. of Survey
- Upstream
- Length Surveyed
- 4 ft.
- Total Length
- 4 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (3)

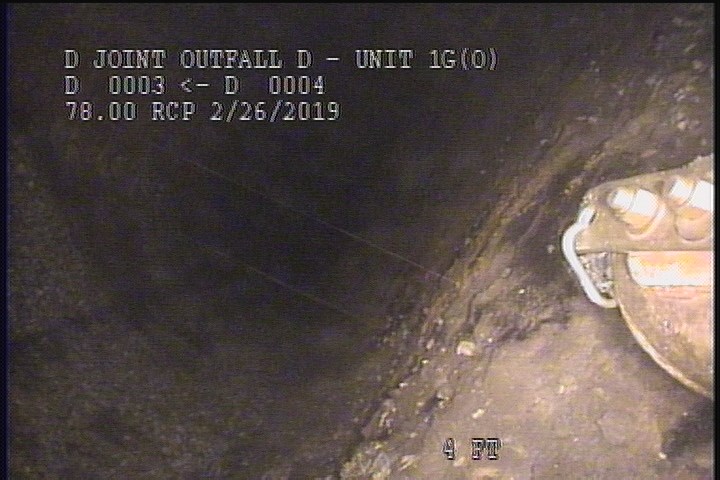

4 ft. - Obstacles Other, 15 %of cross sectional area, from 05 to 07 o'clock - DEBRIS

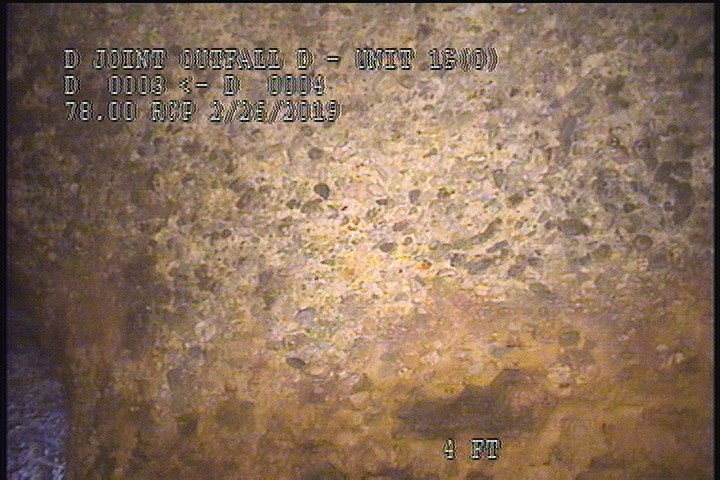

4 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES

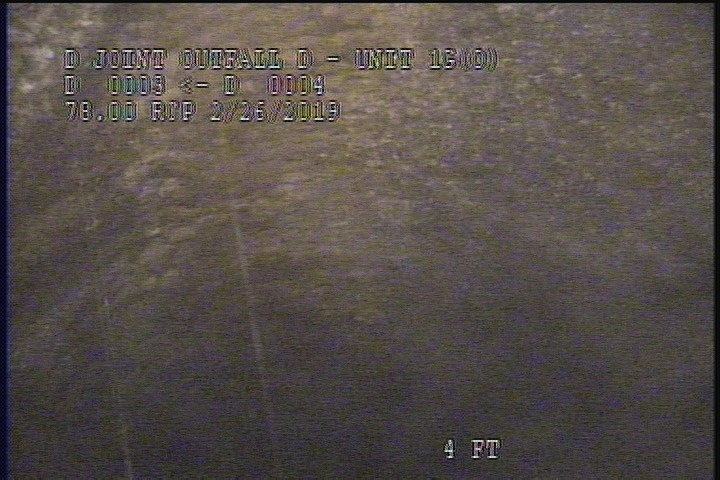

4 ft. - Survey Abandoned - ZOOMED AS FAR AS POSSIBLE
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | LOOKING U/S TOWARDS D 0004 |
| 0 | MGO | DRY LINE, DEBRIS ON THE BOTTOM |
| 4 | OBZ | DEBRIS |
| 4 | SAP | — |
| 4 | MSA | ZOOMED AS FAR AS POSSIBLE |
Properties (7)
- custom_field_three
- NOT ABLE TO COMPLETE INSPECTION DUE TO DEBRIS
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-02-26T08:56:16-08:00
- documentation
- OBREGON, YOUNG, BRAR, RUVALCABA
- is_lateral_inspection
- false
- year_laid
- 19880623
