Wastewater/Activity/PacpInspection/1.0Feb 26, 2019, 05:57 PM
05 0926_05 0925_2262019_121355.mp4
- Date
- 02/26/2019
- W/O
- 0755681
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00547
- PipeID
- P06158
- Time
- 9:57 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7926
- Sewer Name
- 05 120TH STREET EXTENSION TRUNK
- City
- EL SEGUNDO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 12
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190226SHO_120TH_STREET_EXTENSION_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 05 0926
- Downstream MH
- 05 0925
- Dir. of Survey
- Downstream
- Length Surveyed
- 336 ft.
- Total Length
- 336 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

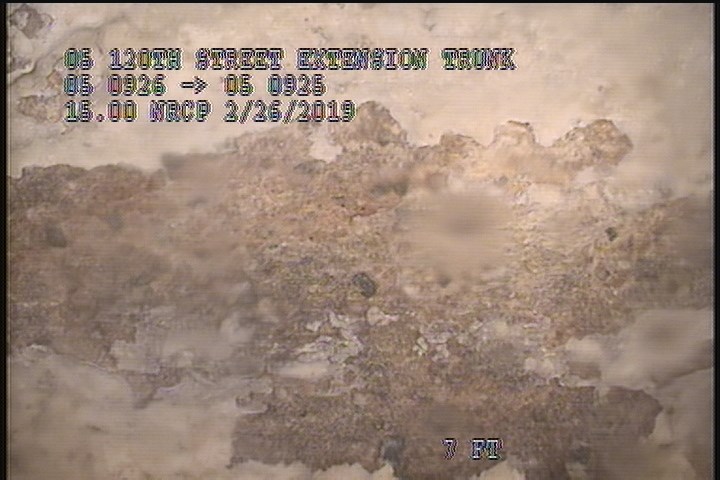

7 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

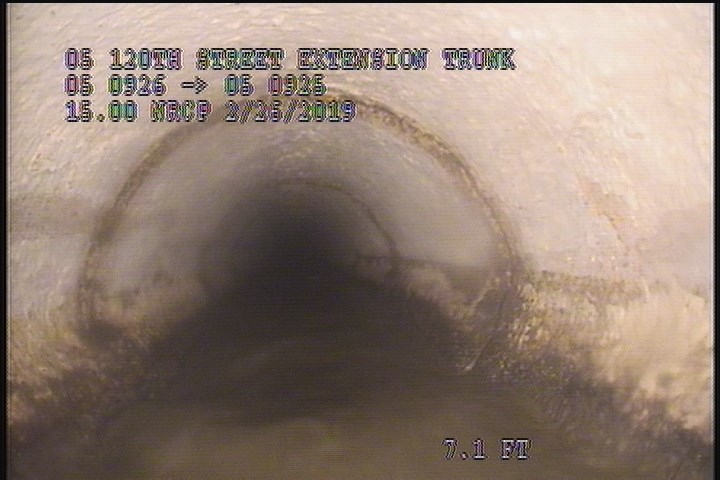

7 ft. - General Observation - 50% MAG COAT INTACT

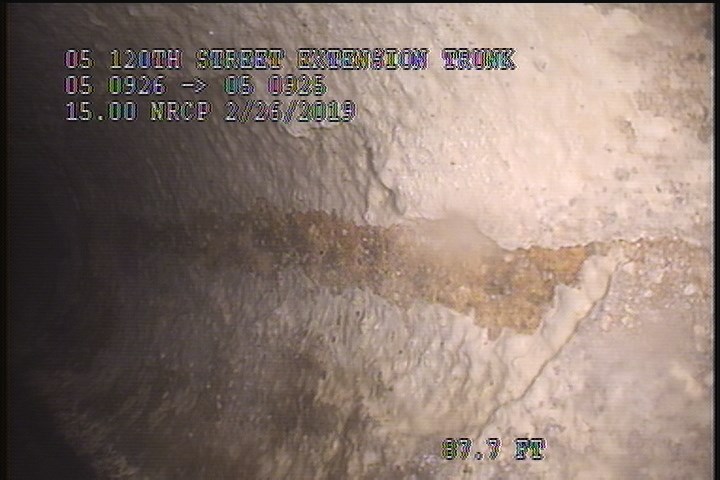

87.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 336 | AMH | MH 0925 |
| 331.4 | SAV | — |
| 336 | MGO | ACTIVE CONNECTION IN THE MH @ 3 |
| 0 | MWM | — |
| 152 | TFC | — |
| 7 | SAV | — |
| 7 | MGO | 50% MAG COAT INTACT |
| 0 | MGO | ACTIVE CONNECTION @ 3 IN THE MH |
| 310.8 | TFC | — |
| 0 | MWL | — |
| 331.4 | SSS | — |
| 48.2 | TFC | — |
| 87.6 | SSS | — |
| 0 | AMH | MH 0926 |
Properties (7)
- additional_info
- RFIR
- custom_field_three
- SPALLING & AGGREGATE
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-02-26T09:57:06-08:00
- documentation
- OBREGON, YOUNG, RUVALCABA, BRAR
- is_lateral_inspection
- false
