Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 25, 2019, 10:00 PM

  • 18 0867_18 0866_2252019_140344.mp4

Date
02/25/2019
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00709
PipeID
P14719
Time
2:00 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7924
Sewer Name
18 SO WHITTIER OUTFALL RLF TR, SECTS 1,2A,2B,2C,&3
City
NORWALK
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
35
Purpose
Maintenance Related
Project
20190225DF_SO_WHITTIER_OUTFALL_RLF_TR_SECTS_1_2A_2B_2C_3
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
18 0867
Downstream MH
18 0866
Dir. of Survey
Downstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
5
O&M Quick
5141
O&M Rating
9
Overall Index
4
Overall Quick
—
Overall Rating
17
Pipe schematic from manhole 18 0867 to 18 0866
MH: 18 0867MH: 18 0866downstream0 ft. AMH - Upstream Manhole, Survey Begins - 2:01 PM0 ft. MWM - Water Mark, 100 %of cross sectional area0 ft. LD - Alignment Down, 45 %0 ft. MWL - Water Level, 100 %of cross sectional area2 ft. MGP - General Photograph - AIRLINE2 ft. MGP - General Photograph2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES2 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES2 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach2.1 ft. MSA - Survey Abandoned - HIGH WATER

Observation photos (7)

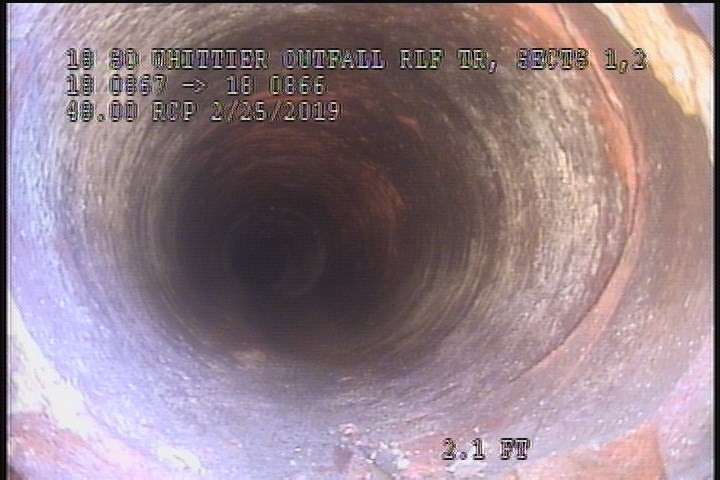

  • Alignment Down, 45 %

    0 ft. - Alignment Down, 45 %

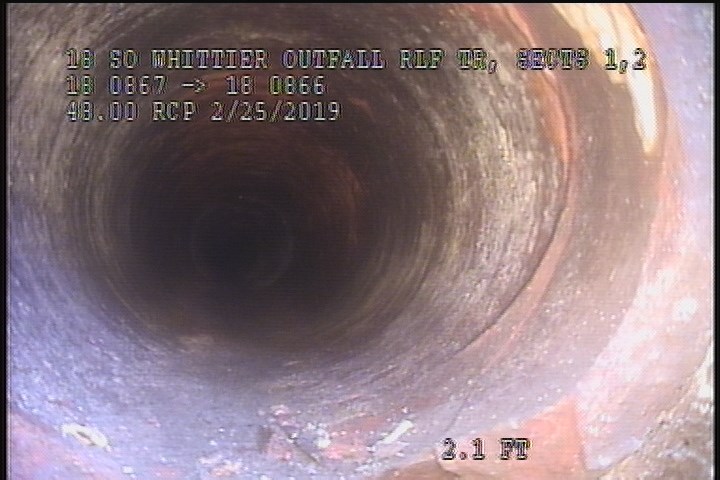

  • General Photograph - AIRLINE

    2 ft. - General Photograph - AIRLINE

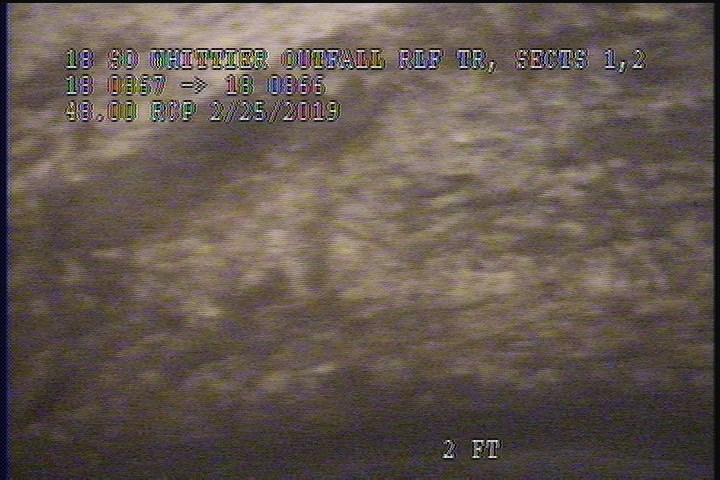

  • General Photograph

    2 ft. - General Photograph

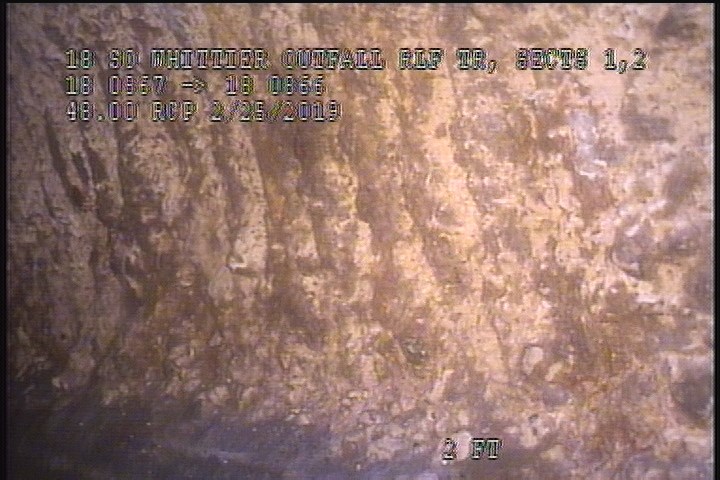

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

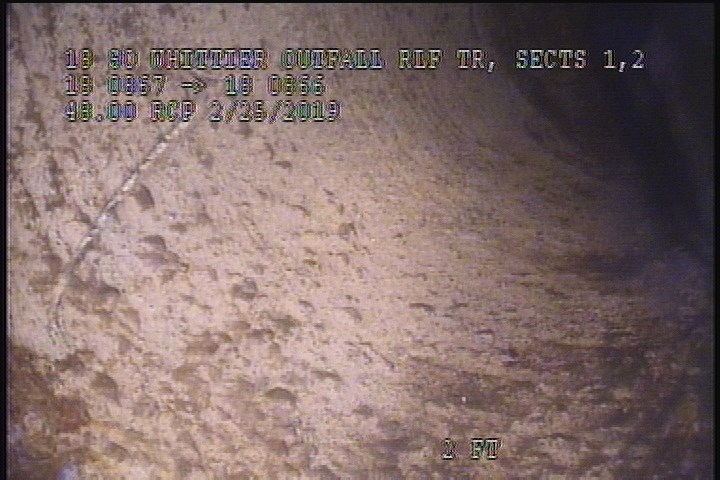

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

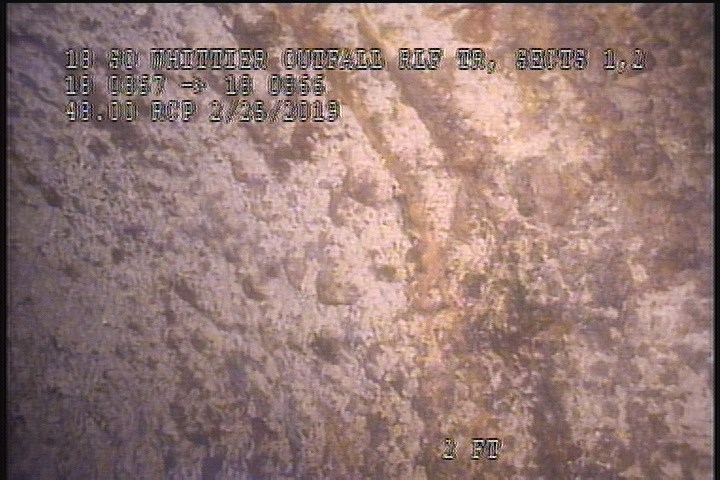

  • General Observation - Peeling & Flaking Throughout The Reach

    2 ft. - General Observation - Peeling & Flaking Throughout The Reach

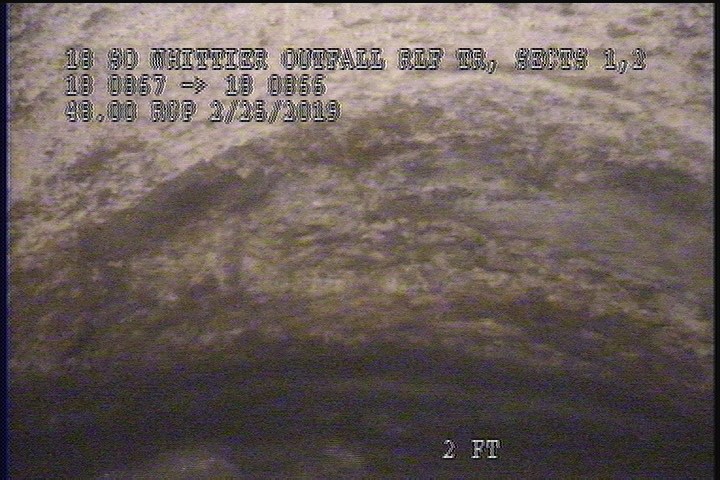

  • Survey Abandoned - HIGH WATER

    2.1 ft. - Survey Abandoned - HIGH WATER

All inspections of P14719Work order PENDING

Observations (10)

DistanceCodeObservation
2MGPAIRLINE
0AMH2:01 PM
2MGP—
2SAV—
2.1MSAHIGH WATER
0MWM—
2SRV—
0LD—
2MGOPeeling & Flaking Throughout The Reach
0MWL—

Properties (6)

additional_info
VIEW OF DOWNLEG FROM THE U/S SIPHON
custom_field_two
5
customer
LACSD
datetime
2019-02-25T14:00:00-08:00
documentation
FRANKLIN, SHADLER, RUVALCABA
is_lateral_inspection
false
