Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 22, 2019, 08:27 PM

  • 05 1821_05 1820_2222019_122951.mp4

Date
02/22/2019
W/O
0750702
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00508
PipeID
P07044
Time
12:27 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Jetting
Media Label
G7923
Sewer Name
05 PALOS VERDES-TORRANCE CONNECTION TRUNK
City
TORRANCE
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
31
Purpose
Capital Improvement Program Assesment
Project
20190222DF_PALOS_VERDES_TORRANCE_CONNECTION_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
05 1820
Downstream MH
05 1821
Dir. of Survey
Upstream
Length Surveyed
39 ft.
Total Length
39 ft.
Structural Index
2
Structural Quick
2200
Structural Rating
4
O&M Index
1
O&M Quick
1200
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 05 1820 to 05 1821
MH: 05 1820MH: 05 1821upstream0 ft. AMH - Upstream Manhole, Survey Ends - 12:40 PM0 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)0.1 ft. MGO - General Observation - LARGE OFFSET JOINT. 1'0.3 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 5%1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish6.1 ft. RFJ - Roots Fine Joint, at 07 o'clock, within 8 inches of joint: YESR - 5%10.3 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES17.6 ft. MGP - General Photograph26.3 ft. MGP - General Photograph37 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start38.9 ft. MWL - Water Level, 5 %of cross sectional area38.9 ft. MWM - Water Mark, 10 %of cross sectional area39 ft. AMH - Downstream Manhole, Survey Begins - 12:29 PM

Observation photos (7)

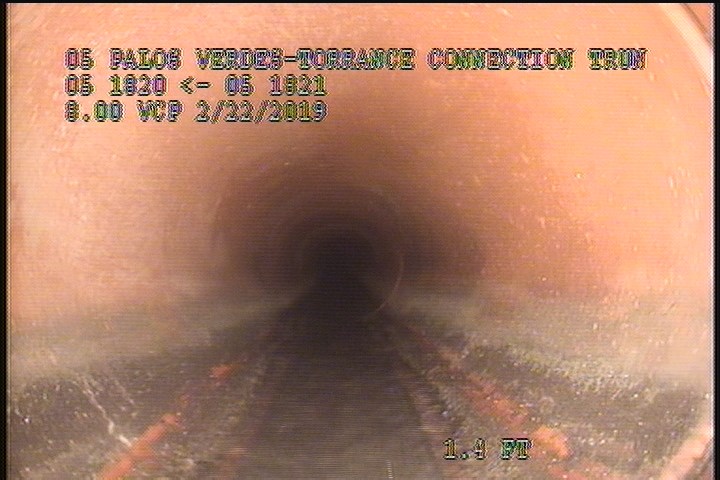

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

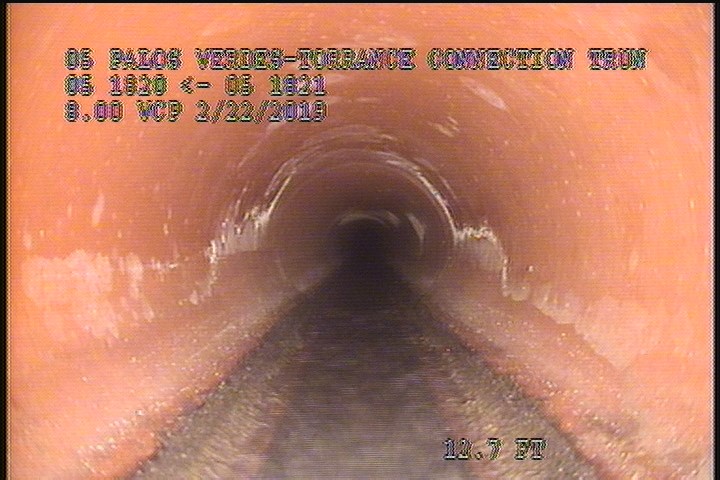

  • General Photograph

    12.7 ft. - General Photograph

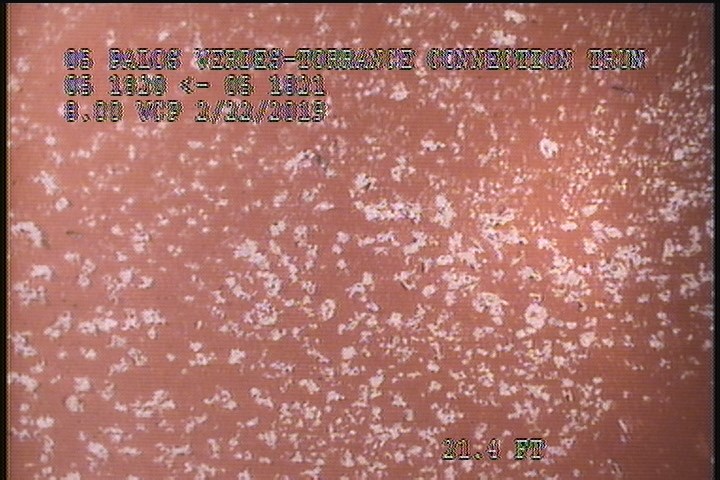

  • General Photograph

    21.4 ft. - General Photograph

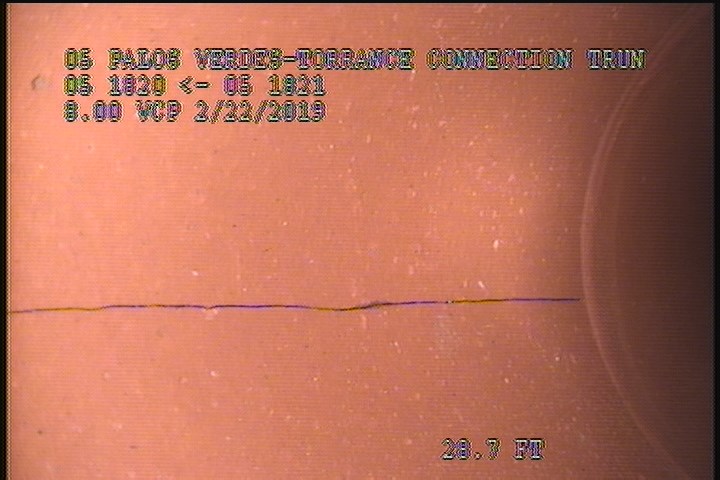

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    28.7 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

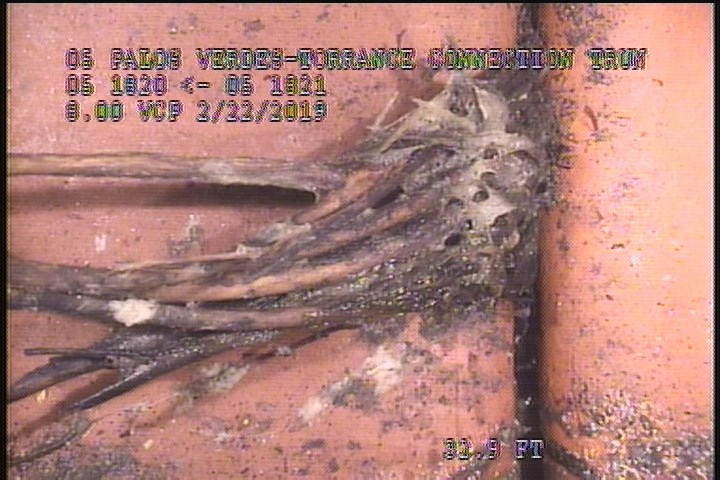

  • Roots Fine Joint, at 07 o'clock, within 8 inches of joint: YESR - 5%

    32.9 ft. - Roots Fine Joint, at 07 o'clock, within 8 inches of joint: YESR - 5%

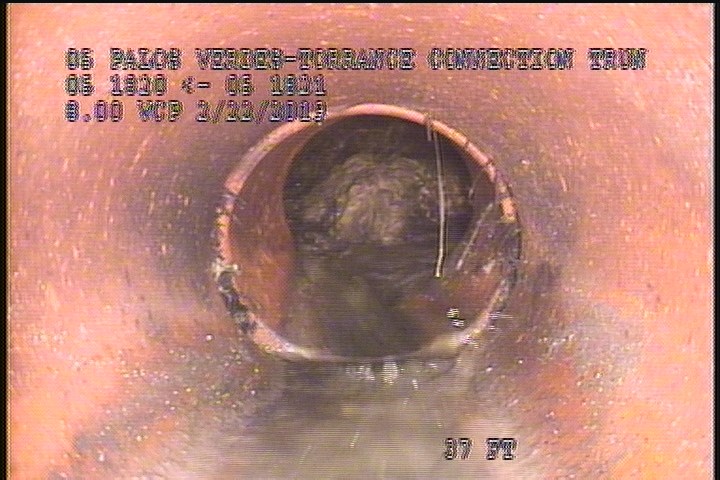

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 5%

    38.7 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 5%

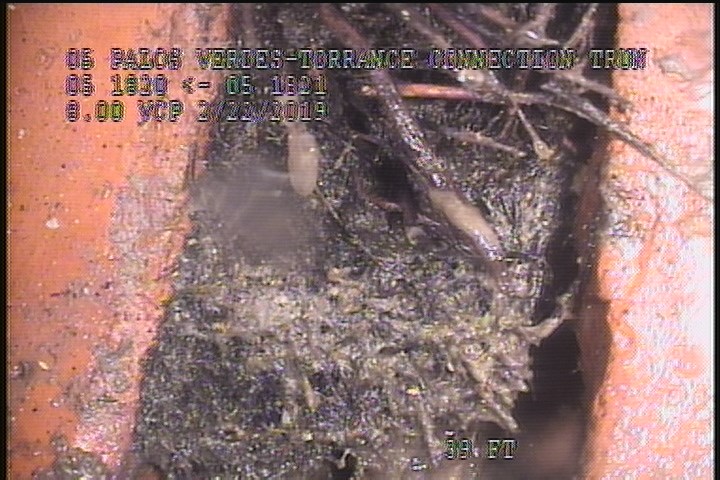

  • General Observation - LARGE OFFSET JOINT. 1'

    38.9 ft. - General Observation - LARGE OFFSET JOINT. 1'

All inspections of P07044Work order 0750702

Observations (13)

DistanceCodeObservation
38.7RFJ5%
38SSS—
21.4MGP—
0AMH12:29 PM
12.7MGP—
0.1MWL—
38.9MGOLARGE OFFSET JOINT. 1'
2SSS—
39AMH12:40 PM
32.9RFJ5%
39MGOGREASE THROUGHOUT THE REACH (5%)
0.1MWM—
28.7CL—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-02-22T12:27:17-08:00
documentation
FRANKLIN, IGNACIO, SHADLER
is_lateral_inspection
false
