Wastewater/Activity/PacpInspection/1.0Feb 20, 2019, 12:40 PM

  • 19 0174_19 0173_2202019_044004.mp4

Date
02/20/2019
W/O
0756154
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00720
PipeID
P15142
Time
4:40 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1120
Sewer Name
19 DAIRY VALLEY TRUNK
City
CERRITOS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
02
Purpose
Capital Improvement Program Assesment
Project
20190220MDM_DAIRY_VALLEY_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
19 0173
Downstream MH
19 0174
Dir. of Survey
Upstream
Length Surveyed
438.7 ft.
Total Length
438.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3121
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 19 0173 to 19 0174
MH: 19 0173MH: 19 0174upstream0 ft. AMH - Downstream Manhole, Survey Ends - 5:15AM0.5 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Capped0.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish0.5 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active14.6 ft. RPP - Repair Patch, from 10 to 01 o'clock, within 8 inches of joint: YES - CONCRETE REPAIR GOOD COND14.6 ft. MGO - General Observation - CONCRETE PATCH REPAIR95.5 ft. MWM - Water Mark, 20 %of cross sectional area126.4 ft. MWL - Water Level, 5 %of cross sectional area126.4 ft. MGO - General Observation - 15" VCP126.4 ft. MWM - Water Mark, 10 %of cross sectional area128.1 ft. TBD - Tap Break-In Defective, at 01 o'clock, -, , within 8 inches of joint: YES, 6" - Open-30% roots139.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open232.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped338 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open436.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start438.7 ft. MWL - Water Level, 10 %of cross sectional area438.7 ft. AMH - Downstream Manhole, Survey Begins - 4:40AM438.7 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (4)

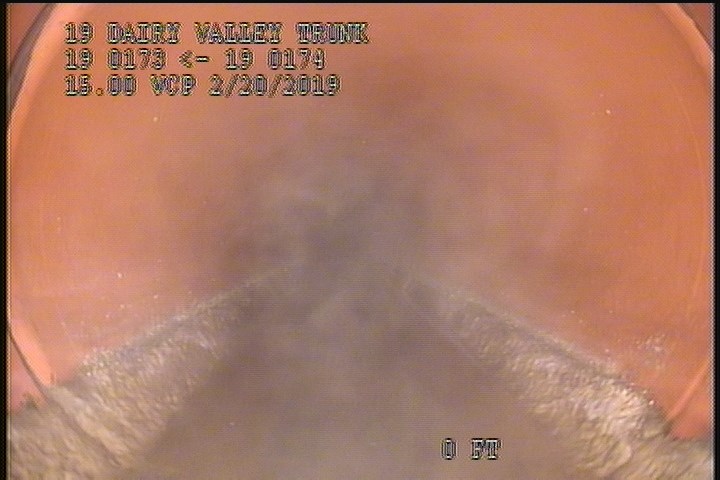

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

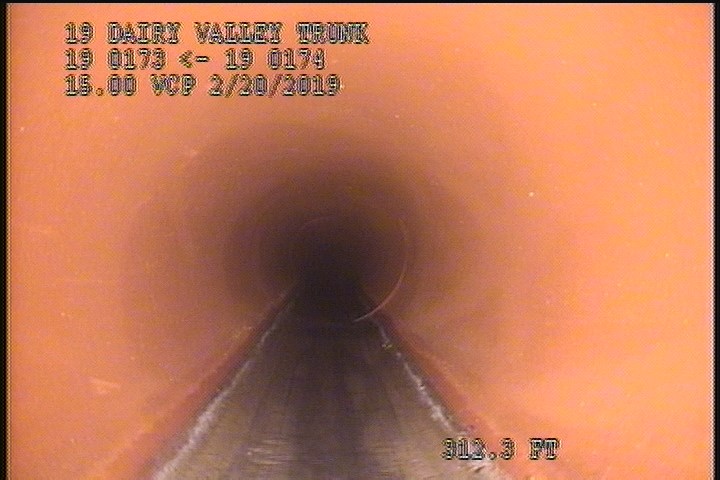

  • General Observation - 15" VCP

    312.3 ft. - General Observation - 15" VCP

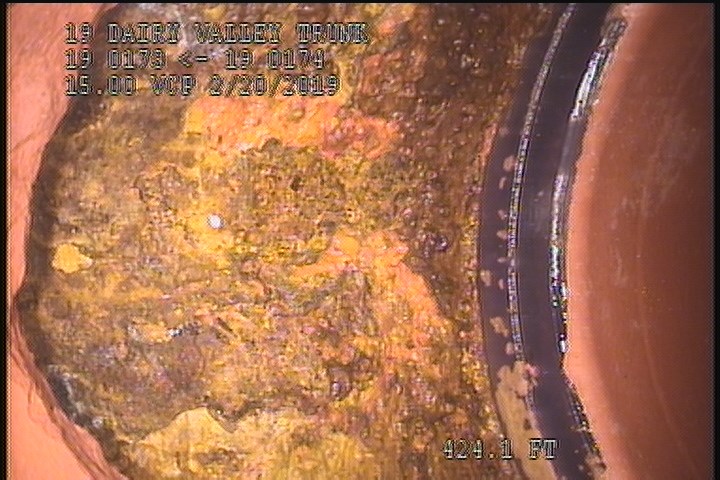

  • Repair Patch, from 10 to 01 o'clock, within 8 inches of joint: YES - CONCRETE REPAIR GOOD COND

    424.1 ft. - Repair Patch, from 10 to 01 o'clock, within 8 inches of joint: YES - CONCRETE REPAIR GOOD COND

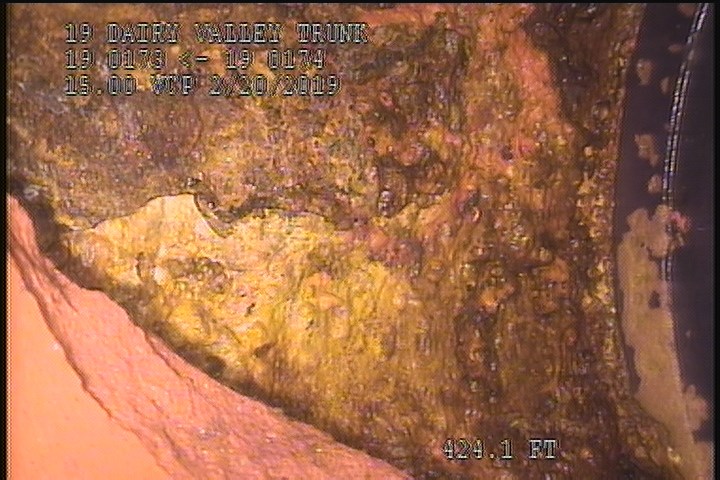

  • General Observation - CONCRETE PATCH REPAIR

    424.1 ft. - General Observation - CONCRETE PATCH REPAIR

All inspections of P15142Work order 0756154

Observations (18)

DistanceCodeObservation
312.3MWL—
424.1RPPCONCRETE REPAIR GOOD COND
438.7AMH5:15AM
299.4TFOpen
438.2MGOConn. @ Mh, 9 O' Clock. Capped
2DAGS—
100.7TFOpen
0MWL—
343.2MWM—
312.3MGO15" VCP
206.1TFCCapped
438.2DAGS—
312.3MWM—
310.6TBDOpen-30% roots
424.1MGOCONCRETE PATCH REPAIR
0AMH4:40AM
0MWM—
438.2MGOConn. @ Mh, 3 O' Clock. Active

Properties (6)

custom_field_three
CONCRETE PATCH REPAIR GOOD COND
custom_field_two
3
customer
LACSD
datetime
2019-02-20T04:40:00-08:00
documentation
MARTIN,REVELES,OLIVER 111,CASTILLO
is_lateral_inspection
false
