Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 19, 2019, 09:29 PM

  • C 0504_C 0503_2192019_133621.mp4

Date
02/19/2019
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00930
PipeID
P21344
Time
1:29 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7917
Sewer Name
C JOINT OUTFALL C - UNIT 7A REPLACEMENT
City
LONG BEACH
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
11
Purpose
Maintenance Related
Project
20190219DF_JOINT_OUTFALL_C_UNIT_7A_REPLACEMENT
Material
RGRCP-PTL
Shape
Circular
Height
54 in.
Upstream MH
C 0503
Downstream MH
C 0504
Dir. of Survey
Upstream
Length Surveyed
3.3 ft.
Total Length
3.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole C 0503 to C 0504
MH: C 0503MH: C 0504upstream0 ft. AMH - Upstream Manhole, Survey Ends - 1:42 PM3.2 ft. MWL - Water Level, 90 %of cross sectional area3.2 ft. MWM - Water Mark, 95 %of cross sectional area3.3 ft. AMH - Downstream Manhole, Survey Begins - 1:33 PM

Observation photos (2)

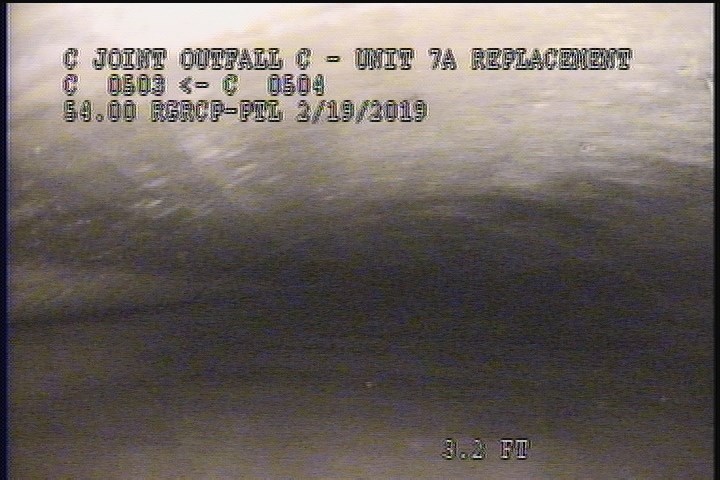

  • Water Level, 90 %of cross sectional area

    0.1 ft. - Water Level, 90 %of cross sectional area

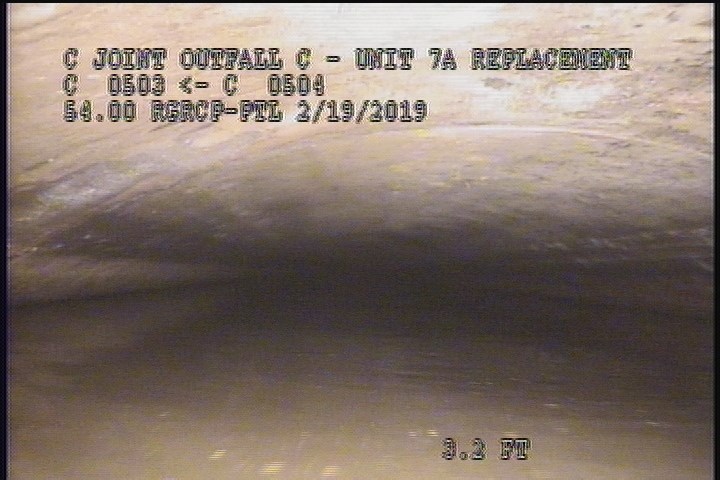

  • Water Mark, 95 %of cross sectional area

    0.1 ft. - Water Mark, 95 %of cross sectional area

All inspections of P21344Work order PENDING

Observations (4)

DistanceCodeObservation
3.3AMH1:42 PM
0.1MWL—
0AMH1:33 PM
0.1MWM—

Properties (7)

additional_info
SINKHOLE APPROXIMATELT 33' U/S
custom_field_two
5
customer
LACSD
datetime
2019-02-19T13:29:50-08:00
documentation
FRANKLIN, IGNACIO, AHUMADA
is_lateral_inspection
false
year_laid
19970210
