Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 19, 2019, 06:58 PM

  • 18 0581_18 0580_2192019_110432.mp4

Date
02/19/2019
W/O
0756113
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00670
PipeID
P14430
Time
10:58 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7916
Sewer Name
18 BLOOMFIELD AVENUE TRUNK
City
SANTA FE SPRINGS
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
30
Purpose
Routine Assessment
Project
20190219DF_BLOOMFIELD_AVENUE_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
18 0581
Downstream MH
18 0580
Dir. of Survey
Downstream
Length Surveyed
218.2 ft.
Total Length
218.2 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 18 0581 to 18 0580
MH: 18 0581MH: 18 0580downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 11:00 AM0 ft. MWM - Water Mark, 20 %of cross sectional area0.1 ft. MGP - General Photograph - @ MH. POSSIBLE VOID UNDER CONN 9 O'CLOCK2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 80% MAG93.3 ft. MGP - General Photograph114.4 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach198.5 ft. MGP - General Photograph210.9 ft. MGP - General Photograph215.7 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 80% MAG215.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish215.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish217 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. CAPPED217 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. CAPPED218.1 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach218.2 ft. MGO - General Observation - Grease Throughout The Reach (5%)218.2 ft. MGO - General Observation - ROACHES @ MH218.2 ft. AMH - Downstream Manhole, Survey Ends - 11:21 AM

Observation photos (8)

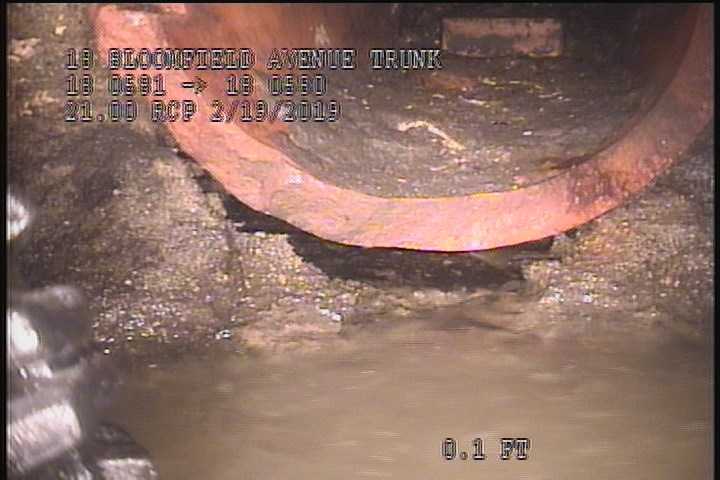

  • General Photograph - @ MH. POSSIBLE VOID UNDER CONN 9 O'CLOCK

    0.1 ft. - General Photograph - @ MH. POSSIBLE VOID UNDER CONN 9 O'CLOCK

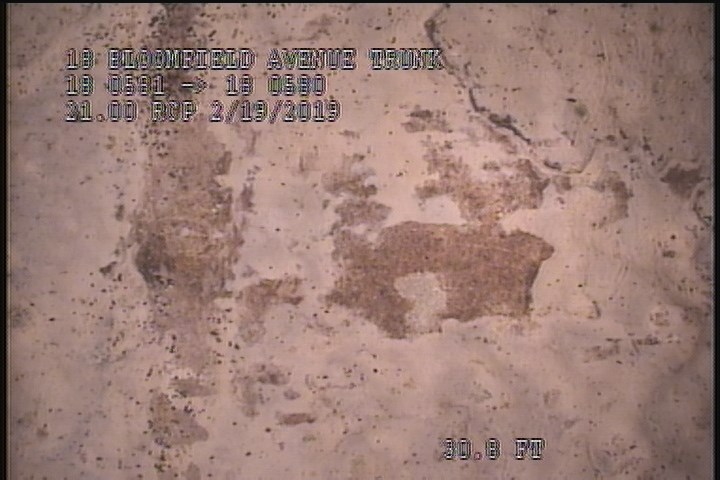

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

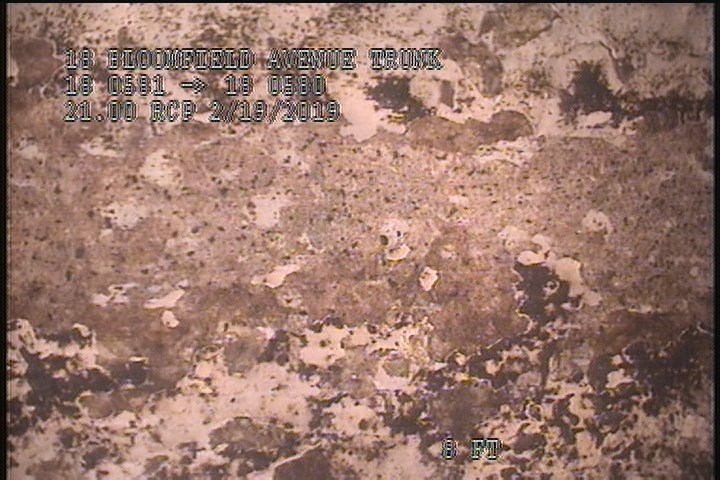

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

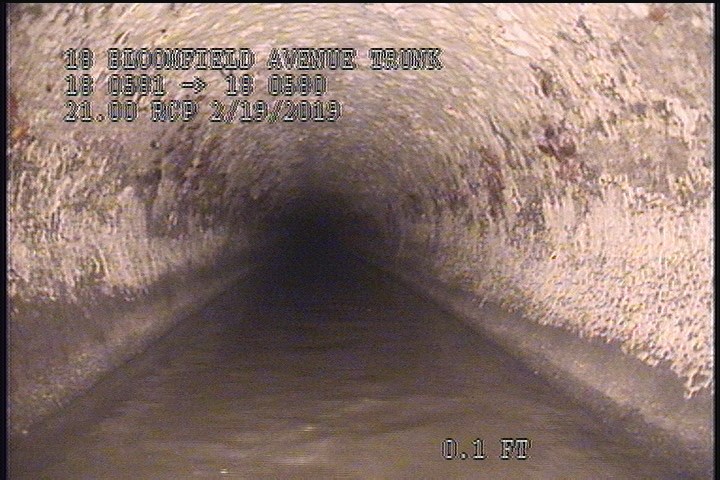

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 80% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 80% MAG

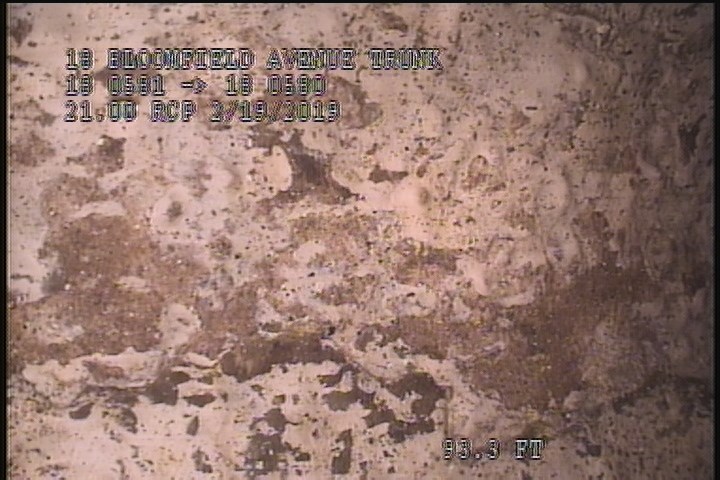

  • General Photograph

    93.3 ft. - General Photograph

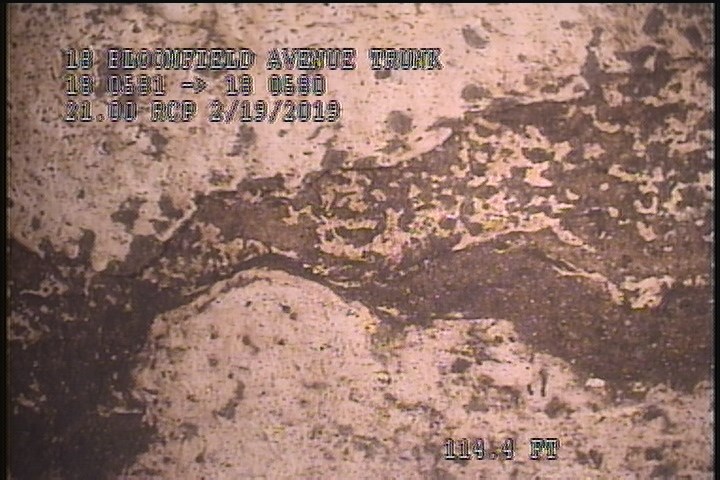

  • General Observation - Peeling & Flaking Throughout The Reach

    114.4 ft. - General Observation - Peeling & Flaking Throughout The Reach

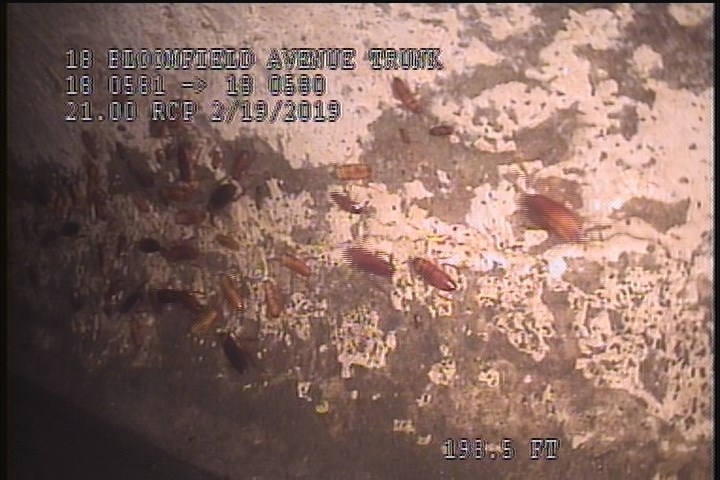

  • General Photograph

    198.5 ft. - General Photograph

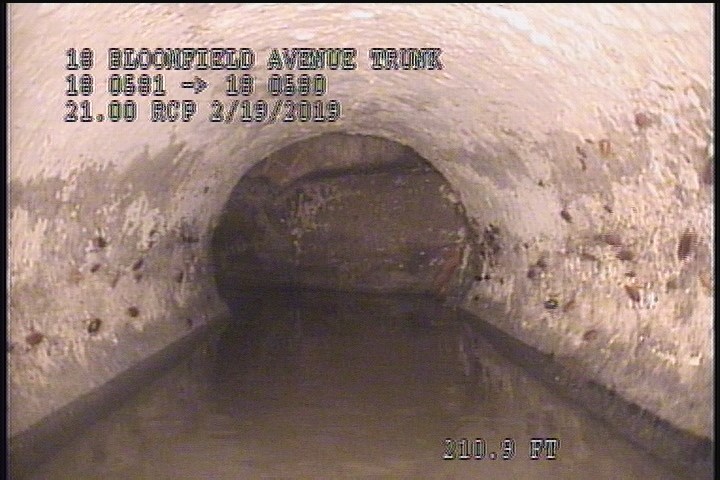

  • General Photograph

    210.9 ft. - General Photograph

All inspections of P14430Work order 0756113

Observations (20)

DistanceCodeObservation
210.9MGP—
2SSS—
114.4MGOPeeling & Flaking Throughout The Reach
217MGOConn. @ Mh, 3 O' Clock. CAPPED
93.3MGP—
2SAV—
218.1MGOPeeling & Flaking Throughout The Reach
215.7SZ80% MAG
218.2MGOGrease Throughout The Reach (5%)
0.1MGP@ MH. POSSIBLE VOID UNDER CONN 9 O'CLOCK
0MWL—
215.7SAV—
218.2MGOROACHES @ MH
198.5MGP—
215.7SSS—
0AMH11:00 AM
217MGOConn. @ Mh, 9 O' Clock. CAPPED
0MWM—
2SZ80% MAG
218.2AMH11:21 AM

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-02-19T10:58:41-08:00
documentation
FRANKLIN, IGNACIO, AHUMADA
is_lateral_inspection
false
