Wastewater/Activity/PacpInspection/1.0Feb 19, 2019, 05:16 PM
18 0582_18 0581_2192019_094301.mp4
- Date
- 02/19/2019
- W/O
- 0756113
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00670
- PipeID
- P14431
- Time
- 9:16 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7916
- Sewer Name
- 18 BLOOMFIELD AVENUE TRUNK
- City
- SANTA FE SPRINGS
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- 20190219DF_BLOOMFIELD_AVENUE_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 18 0581
- Downstream MH
- 18 0582
- Dir. of Survey
- Upstream
- Length Surveyed
- 372.4 ft.
- Total Length
- 372.4 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (5)

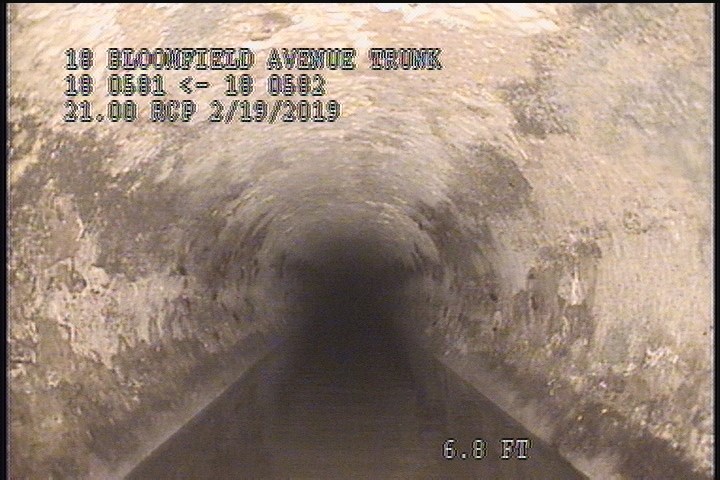

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG

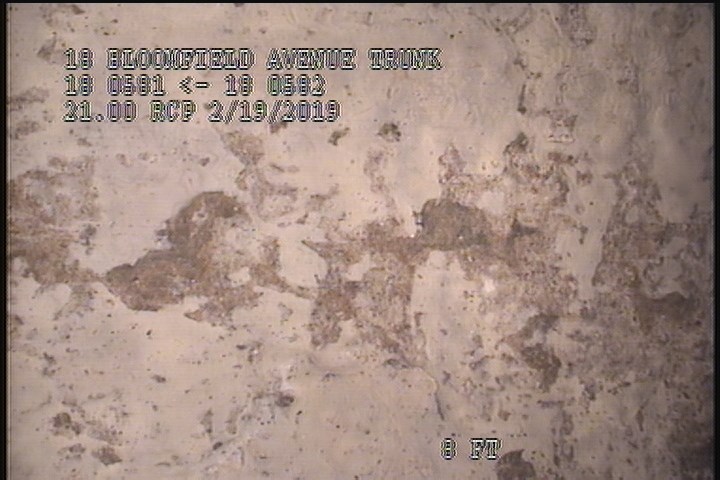

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

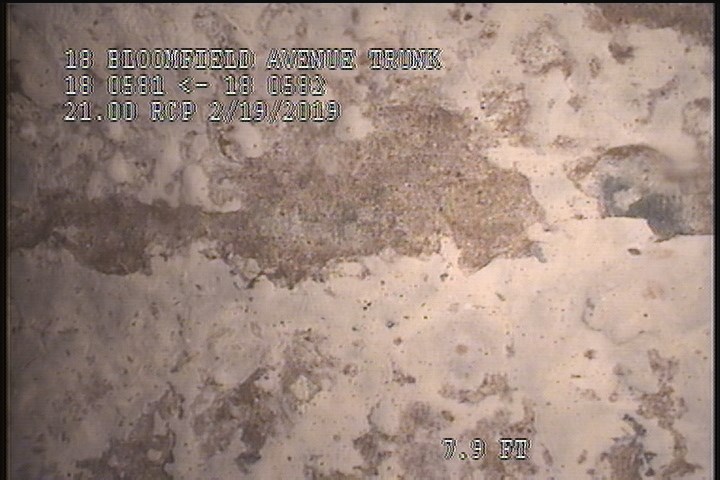

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

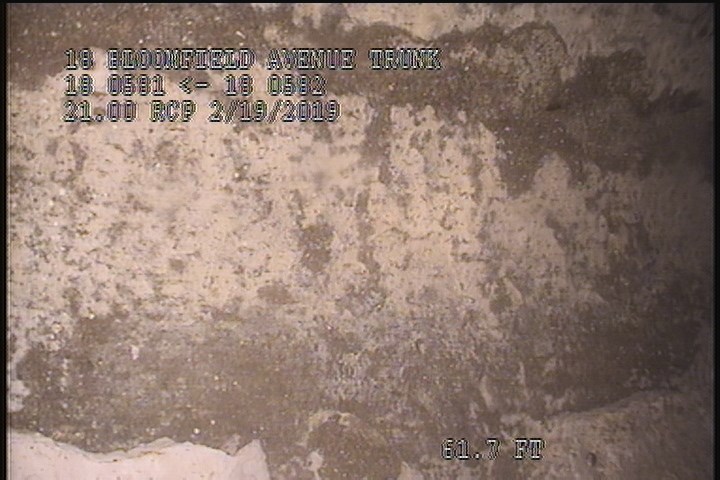

61.7 ft. - General Photograph

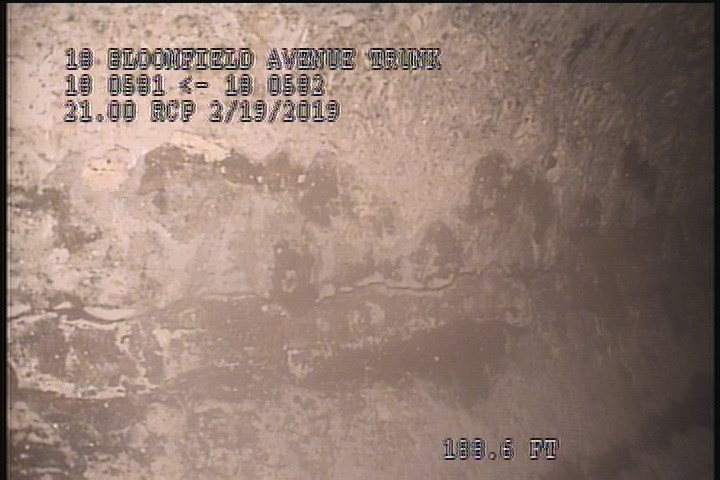

188.6 ft. - General Photograph
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 188.6 | MGP | — |
| 2 | SZ | 75% MAG |
| 372.4 | AMH | 10:08 AM |
| 372.4 | MGO | ROACHES @ MH |
| 368.8 | SAV | — |
| 368.8 | SSS | — |
| 0 | AMH | 9:19 AM |
| 0.1 | MWL | — |
| 372.4 | MGO | Grease Throughout The Reach (5%) |
| 372.3 | MGO | Peeling & Flaking Throughout The Reach |
| 368.8 | SZ | 75% MAG |
| 61.7 | MGP | — |
| 2 | SAV | — |
| 2 | SSS | — |
| 0.1 | MWM | — |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-02-19T09:16:43-08:00
- documentation
- FRANKLIN, IGNACIO, AHUMADA
- is_lateral_inspection
- false
