Wastewater/Activity/PacpInspection/1.0Feb 15, 2019, 08:48 AM
01 0424_E 0077_2152019_040510.mp4
01 0424_E 0077_2152019_041836.mp4
- Date
- 02/15/2019
- W/O
- 0755136
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00208
- PipeID
- P02158
- Time
- 12:48 AM
- Certificate
- U-104-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1113
- Sewer Name
- 01 HOLMES-WILLOWBROOK TRUNK
- City
- SOUTH GATE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 10
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190215MDM_HOLMES_WILLOWBROOK_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 01 0424
- Downstream MH
- E 0077
- Dir. of Survey
- Downstream
- Length Surveyed
- 8.6 ft.
- Total Length
- 8.6 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

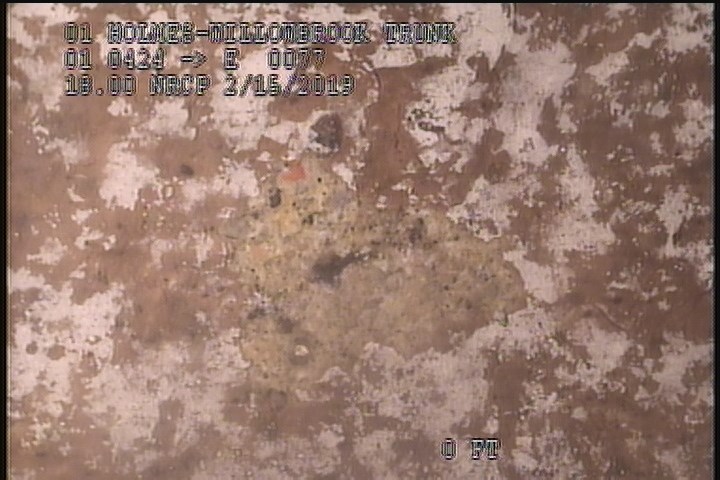

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERIN PEELING CONCRETE

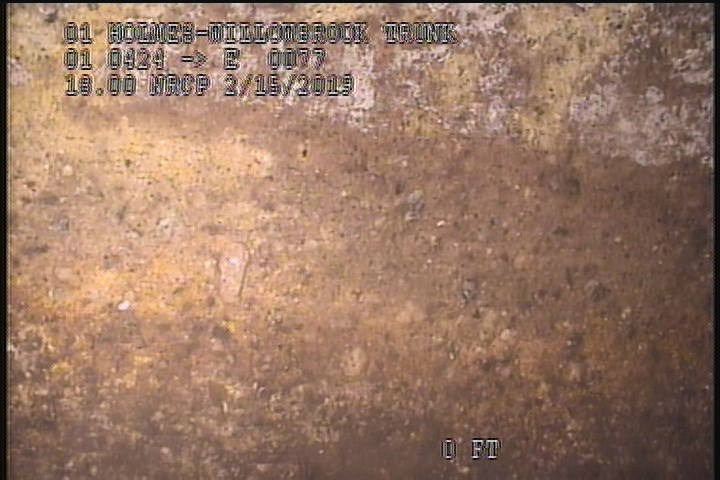

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 8 | SSS | BLISTERING PEELING CONCRETE |
| 8 | SAP | SEVERE AGG |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. STUB |
| 0 | AMH | 4:00AM |
| 2 | SSS | BLISTERIN PEELING CONCRETE |
| 8.6 | AMH | 4:05AM |
| 0 | MWL | — |
| 0 | MWM | — |
| 2 | SAP | SEVERE AGG |
| 8 | MGO | Conn. @ Mh, 3 O' Clock. Capped |
Properties (6)
- custom_field_three
- PROJECTING SEVERE AGG
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-02-15T00:48:07-08:00
- documentation
- MARTIN,REVELES,CASTILLO
- is_lateral_inspection
- false
