Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 21, 2019, 09:52 PM

  • 05 0923A_05 0923_2212019_135637.mp4

Date
02/21/2019
W/O
0755681
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00547
PipeID
P06155
Time
1:52 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7922
Sewer Name
05 120TH STREET EXTENSION TRUNK
City
HAWTHORNE BLVD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
12
Purpose
Capital Improvement Program Assesment
Project
20190212DF_120TH_STREET_EXTENSION_TRUNK
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
05 0923A
Downstream MH
05 0923
Dir. of Survey
Downstream
Length Surveyed
54 ft.
Total Length
54 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 05 0923A to 05 0923
MH: 05 0923AMH: 05 0923downstream0 ft. MGO - General Observation - ROACHES @ MH0 ft. AMH - Upstream Manhole, Survey Begins - 1:53 PM0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85%2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start41.4 ft. MGP - General Photograph52.3 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 90% MAG52.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish52.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish52.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish53.7 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)53.7 ft. MGO - General Observation - Conn. @ Mh, 7 O' Clock. Active53.7 ft. MGP - General Photograph - ROACHES @ MH54 ft. AMH - Downstream Manhole, Survey Ends - 2:03 PM

Observation photos (5)

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85%

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85%

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

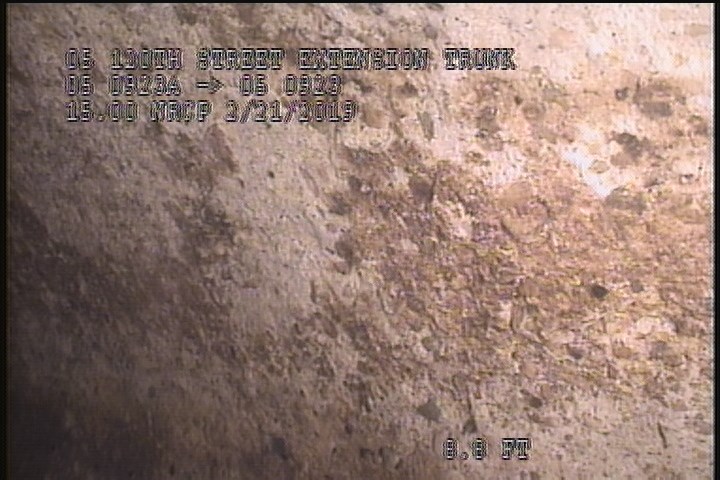

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • General Photograph

    41.4 ft. - General Photograph

All inspections of P06155Work order 0755681

Observations (18)

DistanceCodeObservation
53.7MGOGREASE THROUGHOUT THE REACH (5%)
52.3SZ90% MAG
52.3CM—
2SZ85%
0MGOROACHES @ MH
53.7MGOConn. @ Mh, 7 O' Clock. Active
53.7MGPROACHES @ MH
54AMH2:03 PM
41.4MGP—
0AMH1:53 PM
2CM—
0MWL—
52.3SAV—
2SAV—
0MWM—
0MGOConn. @ Mh, 3 O' Clock. Active
52.3SSS—
2SSS—

Properties (4)

customer
LACSD
datetime
2019-02-21T13:52:31-08:00
documentation
FRANKLIN, IGNACIO, RUVALCABA, AHUMADA
is_lateral_inspection
false
