Wastewater/Activity/PacpInspection/1.0Feb 21, 2019, 09:42 PM
05 0924_05 0923A_2212019_134505.mp4
- Date
- 02/21/2019
- W/O
- 0755681
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00547
- PipeID
- P25496
- Time
- 1:42 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7922
- Sewer Name
- 05 120TH STREET EXTENSION TRUNK
- City
- HAWTHORNE BLVD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 12
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190212DF_120TH_STREET_EXTENSION_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 05 0924
- Downstream MH
- 05 0923A
- Dir. of Survey
- Downstream
- Length Surveyed
- 27.3 ft.
- Total Length
- 27.3 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)
2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 90% MAG

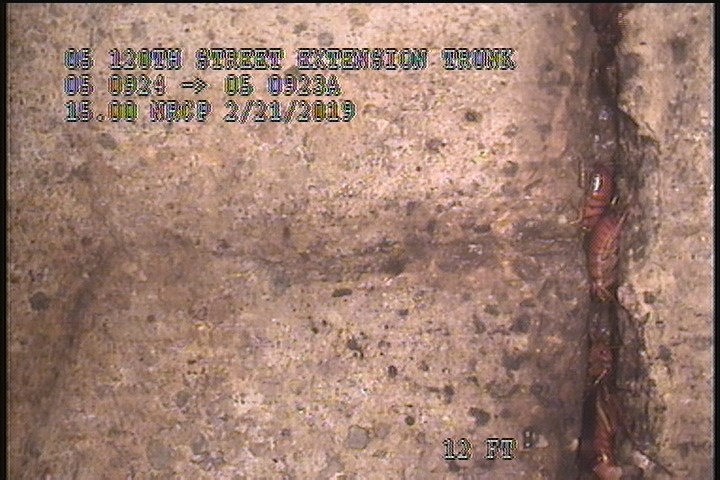

2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 2 | SZ | 90% MAG |
| 24.5 | SZ | 90% MAG |
| 24.5 | CM | — |
| 27.3 | AMH | 1:52 PM |
| 24.5 | SAV | — |
| 2 | CM | — |
| 24.5 | SSS | — |
| 2 | SSS | — |
| 26.1 | MGO | GREASE THROUGHOUT THE REACH (5%) |
| 0 | MWM | — |
| 27.3 | MGO | ROACHES @ MH |
| 2 | SAV | — |
| 0 | AMH | 1:43 PM |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 27.3 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 0 | MWL | — |
| 0 | MGO | ROACHES @ MH |
Properties (5)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-02-21T13:42:43-08:00
- documentation
- FRANKLIN, IGNACIO, RUVALCABA, AHUMADA
- is_lateral_inspection
- false
