Wastewater/Activity/PacpInspection/1.0Dec 28, 2018, 10:46 AM
05 0904_05 0903 _12282018_025929.mp4
- Date
- 12/28/2018
- W/O
- 740636
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00547
- PipeID
- P06134
- Time
- 2:46 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6306
- Sewer Name
- 05 120TH STREET EXTENSION TRUNK
- City
- HAWTHRONE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_740636_TV05004_DEC2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 0904
- Downstream MH
- 05 0903
- Dir. of Survey
- Downstream
- Length Surveyed
- 462.1 ft.
- Total Length
- 462.1 ft.
- Structural Index
- 3
- Structural Quick
- 3Q00
- Structural Rating
- 276
- O&M Index
- 3
- O&M Quick
- 3D00
- O&M Rating
- 81
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 357
Observation photos (2)

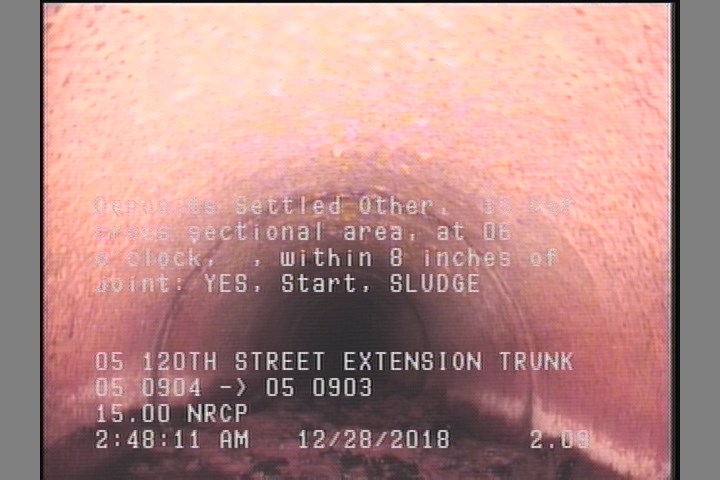

2.1 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start - SLUDGE

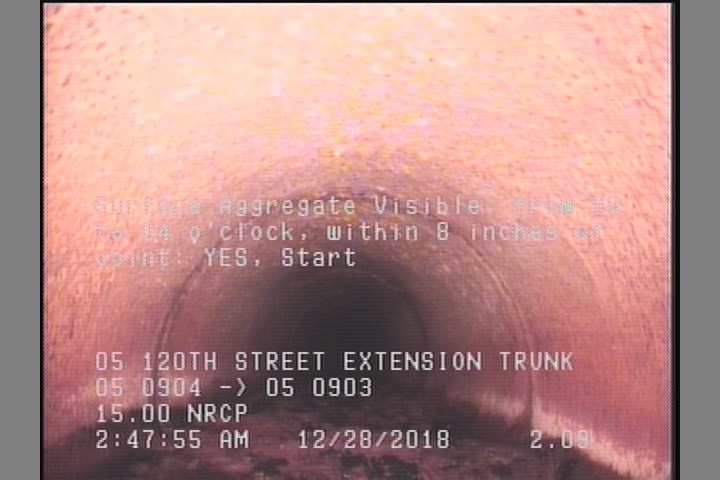

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | DSZ | SLUDGE |
| 0 | AMH | 05 0904 |
| 462.1 | SAV | — |
| 2.1 | SAV | — |
| 462.1 | AMH | 05 0903 |
| 139.1 | DSZ | — |
| 0 | MWM | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC365490
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-12-28T02:46:43-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
