Wastewater/Activity/PacpInspection/1.0Dec 28, 2018, 07:32 AM
05 0917_05 0916 _12282018_004006.mp4
- Date
- 12/27/2018
- W/O
- 740636
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00547
- PipeID
- P06148
- Time
- 11:32 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6306
- Sewer Name
- 05 120TH STREET EXTENSION TRUNK
- City
- HAWTHRONE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_740636_TV05004_DEC2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 0916
- Downstream MH
- 05 0917
- Dir. of Survey
- Upstream
- Length Surveyed
- 349.2 ft.
- Total Length
- 349.2 ft.
- Structural Index
- 3
- Structural Quick
- 3M2M
- Structural Rating
- 343
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 343
Observation photos (2)

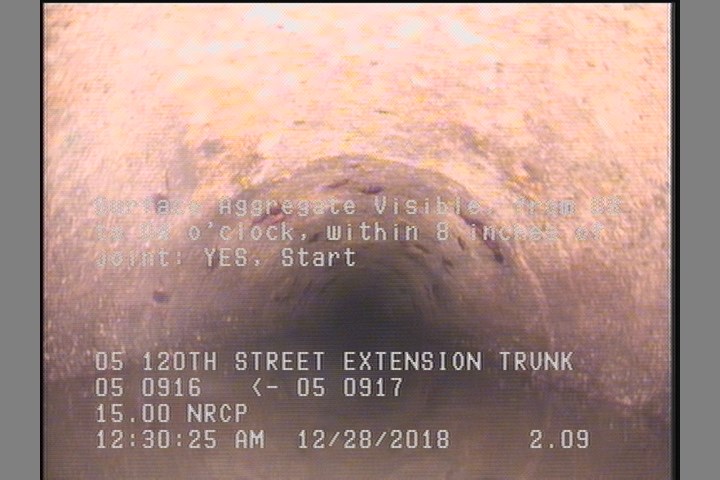

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

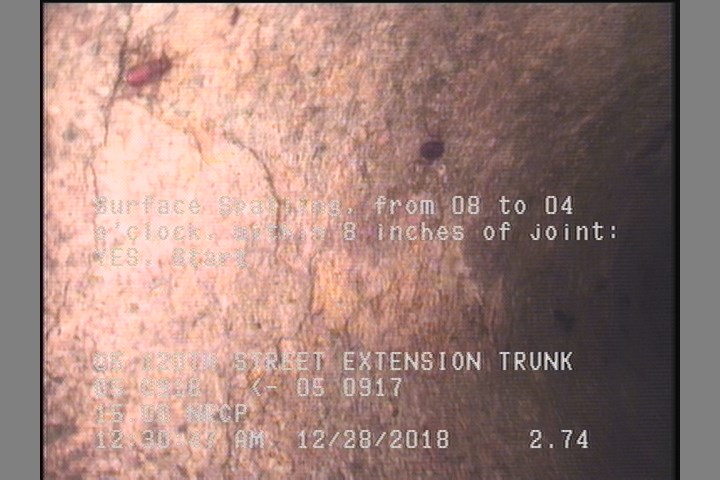

2.7 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 343.8 | SSS | — |
| 0 | MWL | — |
| 2.1 | SAV | — |
| 0 | AMH | 05 0916 |
| 349.2 | AMH | 05 0917 |
| 2.7 | SSS | — |
| 348.3 | SAV | — |
Properties (6)
- additional_info
- SC365490
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-12-27T23:32:46-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
