Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 28, 2018, 10:31 AM

  • 05 0375_05 0904 _12282018_024133.mp4

Date
12/28/2018
W/O
740636
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00547
PipeID
P06135
Time
2:31 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6306
Sewer Name
05 120TH STREET EXTENSION TRUNK
City
HAWTHRONE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
WO_740636_TV05004_DEC2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 0904
Downstream MH
05 0375
Dir. of Survey
Upstream
Length Surveyed
344.7 ft.
Total Length
344.7 ft.
Structural Index
3
Structural Quick
3M00
Structural Rating
207
O&M Index
3
O&M Quick
3F00
O&M Rating
99
Overall Index
3
Overall Quick
—
Overall Rating
306
Pipe schematic from manhole 05 0904 to 05 0375
MH: 05 0904MH: 05 0375upstream0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Ends - 05 03750 ft. MGO - General Observation - CONNECTION AT MH 12 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT MH 12 O'CLOCK0.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish177.5 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish342.6 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start - SLUDGE342.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start344.7 ft. MWL - Water Level, 10 %of cross sectional area344.7 ft. MWM - Water Mark, 15 %of cross sectional area344.7 ft. AMH - Downstream Manhole, Survey Begins - 05 0904

Observation photos (2)

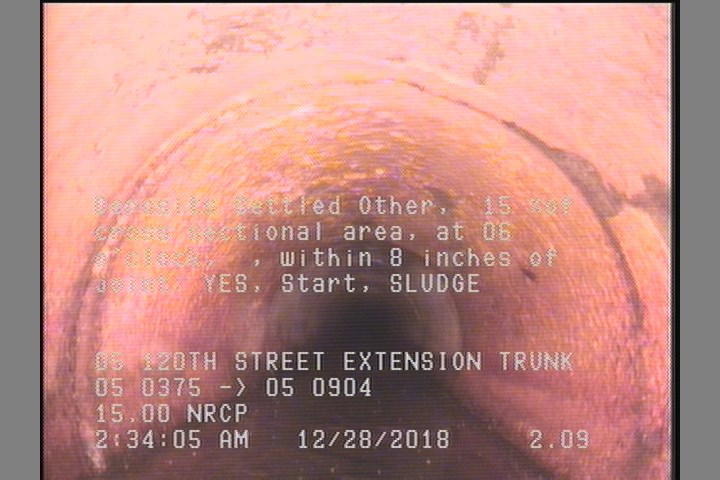

  • Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start - SLUDGE

    2.1 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start - SLUDGE

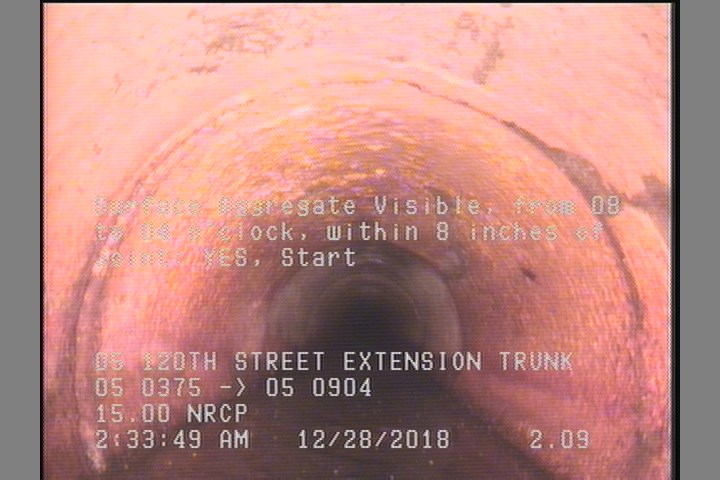

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P06135Work order 740636

Observations (11)

DistanceCodeObservation
344.7MGOCONNECTION AT MH 3 O'CLOCK
2.1DSZSLUDGE
0MWL—
344.7AMH05 0375
344.6SAV—
2.1SAV—
0MWM—
344.7MGOCONNECTION AT MH 12 O'CLOCK
344.7MGOCONNECTION AT MH 12 O'CLOCK
167.2DSZ—
0AMH05 0904

Properties (6)

additional_info
SC365490
custom_field_two
4
customer
LACSD
datetime
2018-12-28T02:31:17-08:00
documentation
PROPIPE
is_lateral_inspection
false
