Wastewater/Activity/PacpInspection/1.0Jan 10, 2019, 05:22 AM
F 0256_F 0255 _01092019_213451.mp4
- Date
- 01/09/2019
- W/O
- 740348
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00040
- PipeID
- P10213
- Time
- 9:22 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6321
- Sewer Name
- F JOINT OUTFALL F - UNIT 4 RELIEF
- City
- CERRITOS
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 39
- Purpose
- Routine Assessment
- Project
- WO_740348_TV02272_DEC2018
- Sewer Type
- Siphon
- Material
- RGRCP
- Shape
- Circular
- Height
- 45 in.
- Width
- 45 in.
- Upstream MH
- F 0256
- Downstream MH
- F 0255
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

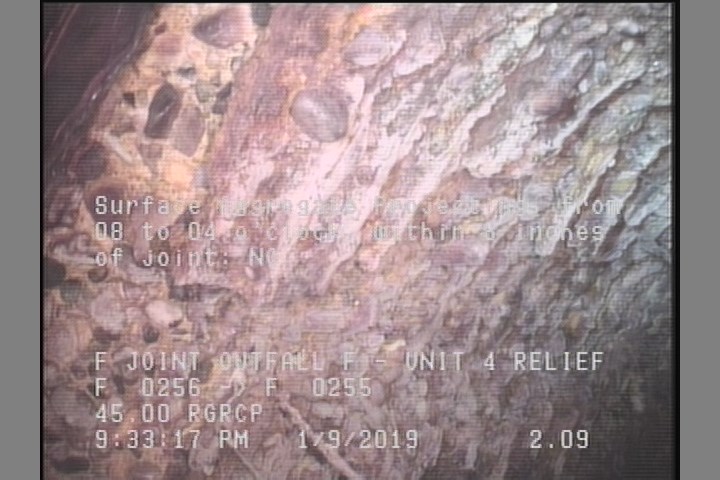

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO

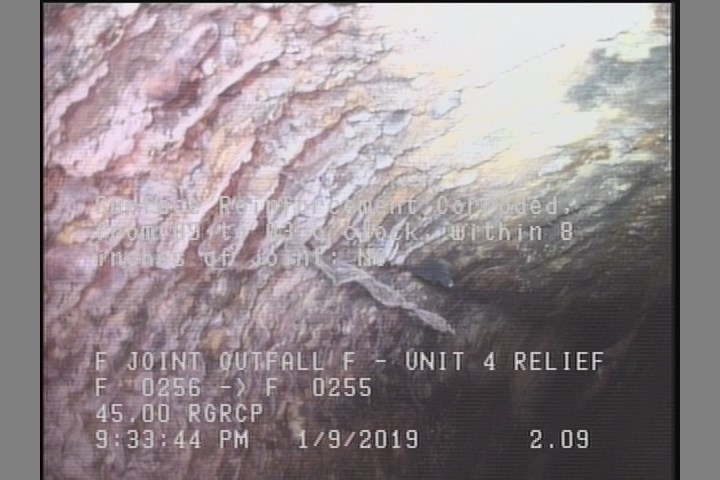

2.1 ft. - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: NO

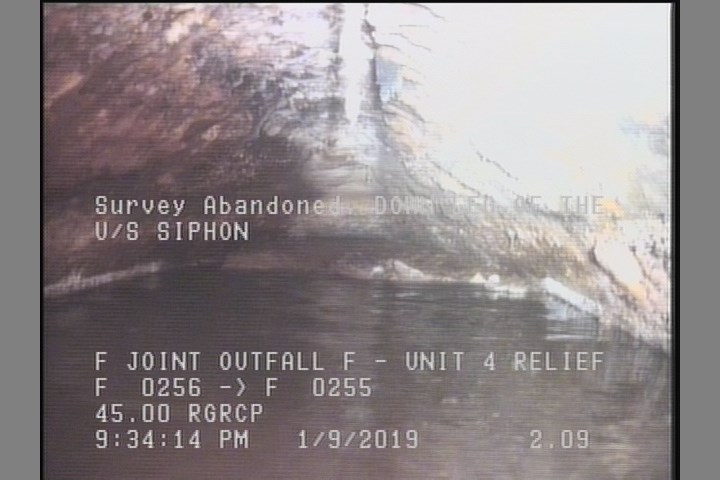

2.1 ft. - Survey Abandoned - DOWN LEG OF THE U/S SIPHON
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | F 0256 |
| 2.1 | SAP | — |
| 2.1 | SRC | — |
| 0 | MWL | — |
| 2.1 | MSA | DOWN LEG OF THE U/S SIPHON |
Properties (6)
- additional_info
- SC365755
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-09T21:22:19-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
