Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 1, 2018, 11:27 AM

  • 05 0170_05 0169A _11012018_033627.mp4

Date
11/01/2018
W/O
735493
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00431
PipeID
P02434
Time
4:27 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6207
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
10
Purpose
Routine Assessment
Project
WO_735493_TV05228_NOV2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 0170
Downstream MH
05 0169A
Dir. of Survey
Downstream
Length Surveyed
272.7 ft.
Total Length
272.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2D00
O&M Rating
50
Overall Index
2
Overall Quick
—
Overall Rating
50
Pipe schematic from manhole 05 0170 to 05 0169A
MH: 05 0170MH: 05 0169Adownstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 01700 ft. MWL - Water Level, 15 %of cross sectional area9 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start15.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"79.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"133.8 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Finish147.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"150.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"200.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"243.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"272.7 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK272.7 ft. AMH - Downstream Manhole, Survey Ends - 05 0169A

Observation photos (1)

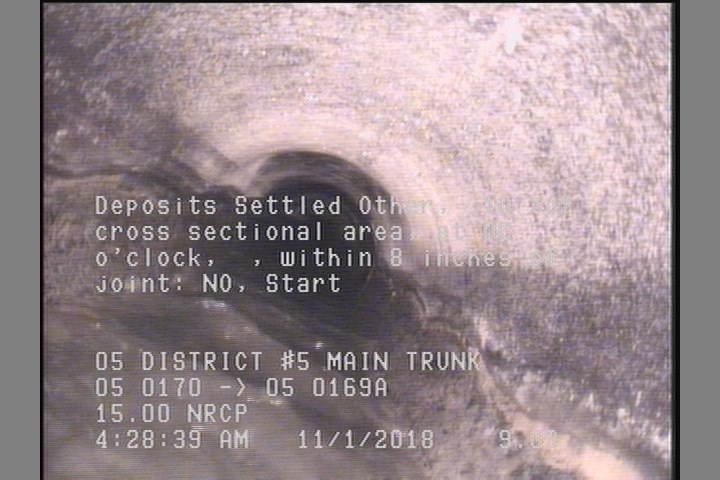

  • Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start

    9 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start

All inspections of P02434Work order 735493

Observations (13)

DistanceCodeObservation
272.7MGOCONNECTION AT MH 9 O'CLOCK
9DSZ—
147.7TF—
0MWM—
79.5TF—
15.8TFA—
133.8DSZ—
0AMH05 0170
243.7TF—
200.8TF—
272.7AMH05 0169A
0MWL—
150.2TF—

Properties (7)

additional_info
SC365235
custom_field_two
4
customer
LACSD
datetime
2018-11-01T04:27:03-07:00
documentation
PROPIPE
is_lateral_inspection
false
lining
CIPP
