Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 16, 2019, 10:02 AM

  • 22 0241_22 0240 _01162019_021533.mp4

Date
01/16/2019
W/O
745548
Weather
Light Rain
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00793
PipeID
P16523
Time
2:02 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6355
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
35
Purpose
Routine Assessment
Project
RFIR_WO_745548_TV22160_JAN2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0241
Downstream MH
22 0240
Dir. of Survey
Downstream
Length Surveyed
166.2 ft.
Total Length
166.2 ft.
Structural Index
3
Structural Quick
3E2E
Structural Rating
160
O&M Index
2
O&M Quick
2E00
O&M Rating
64
Overall Index
2
Overall Quick
—
Overall Rating
224
Pipe schematic from manhole 22 0241 to 22 0240
MH: 22 0241MH: 22 0240downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 02410 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start18 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"21.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"39.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"78.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"112.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"130.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"163.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish163.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish163.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish166.2 ft. MGO - General Observation - COCKROACHES IN MANHOLE166.2 ft. AMH - Downstream Manhole, Survey Ends - 22 0240166.2 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK

Observation photos (4)

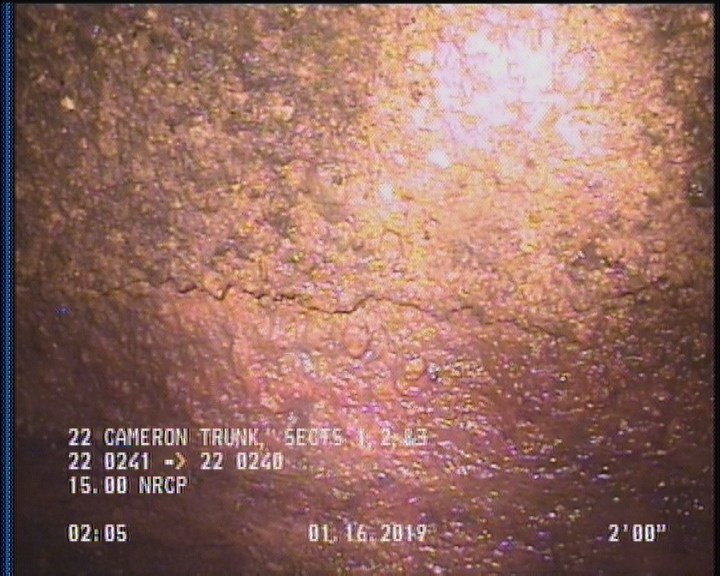

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

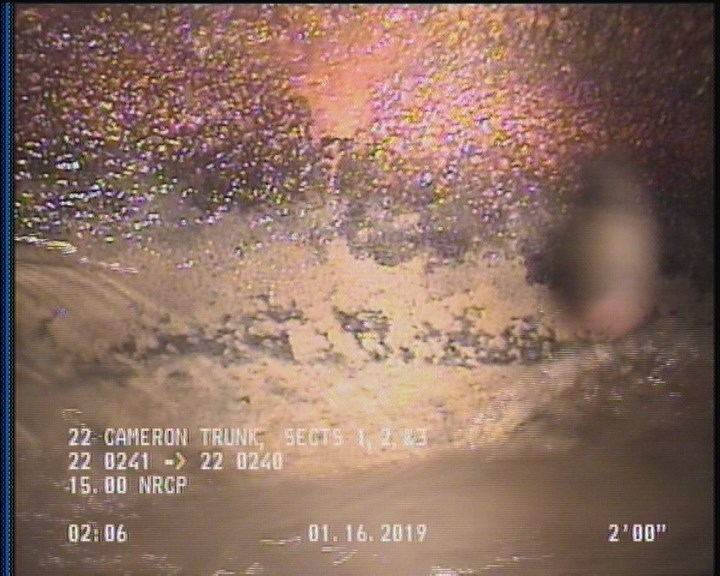

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

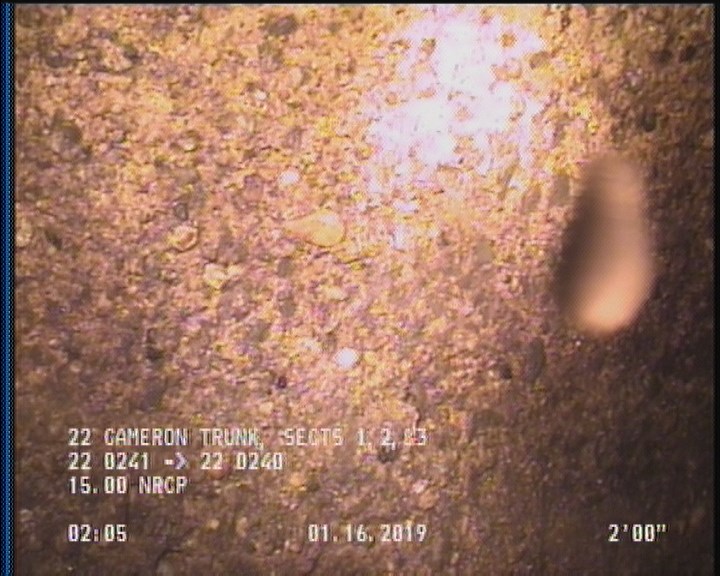

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

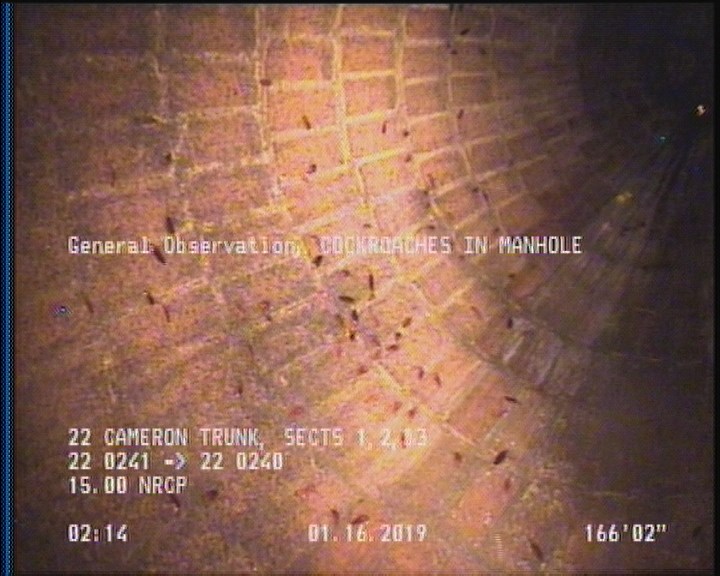

  • General Observation - COCKROACHES IN MANHOLE

    166.2 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P16523Work order 745548

Observations (18)

DistanceCodeObservation
166.2MGOCOCKROACHES IN MANHOLE
0AMH22 0241
163.6SAP—
2SSS—
21.3TFC—
112.3TFC—
130.4TFC—
39.4TFC—
0MWL—
163.6DAGS—
18TFC—
2DAGS—
163.6SSS—
166.2AMH22 0240
2SAP—
78.7TFC—
0MWM—
166.2MGOACTIVE CONNECTION AT MH 9 O'CLOCK

Properties (6)

additional_info
SC365671
custom_field_two
2
customer
LACSD
datetime
2019-01-16T02:02:25-08:00
documentation
PRO PIPE
is_lateral_inspection
false
