Wastewater/Activity/PacpInspection/1.0Jan 16, 2019, 09:06 AM
22 0244_22 0243 _01162019_011456.mp4
- Date
- 01/16/2019
- W/O
- 745548
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00793
- PipeID
- P16526
- Time
- 1:06 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6355
- Sewer Name
- 22 CAMERON TRUNK, SECTS 1,2,&3
- City
- WEST COVINA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745548_TV22160_JAN2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0244
- Downstream MH
- 22 0243
- Dir. of Survey
- Downstream
- Length Surveyed
- 109.5 ft.
- Total Length
- 109.5 ft.
- Structural Index
- 3
- Structural Quick
- 3C2C
- Structural Rating
- 103
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 42
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 145
Observation photos (3)

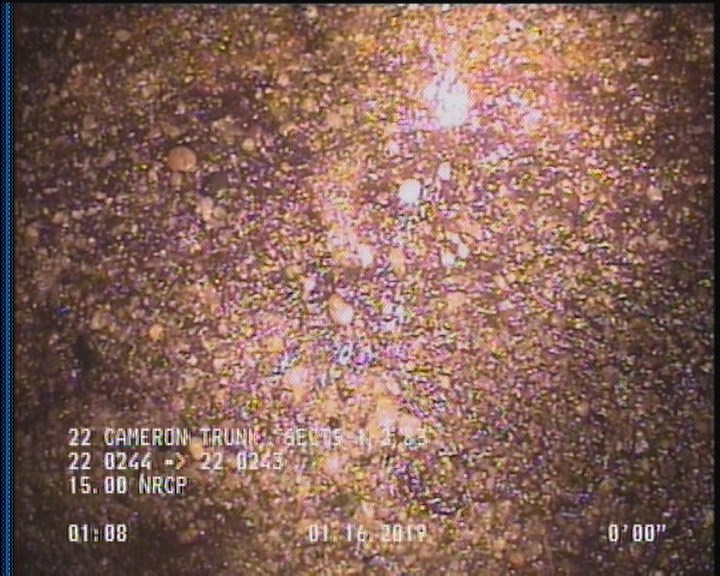

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

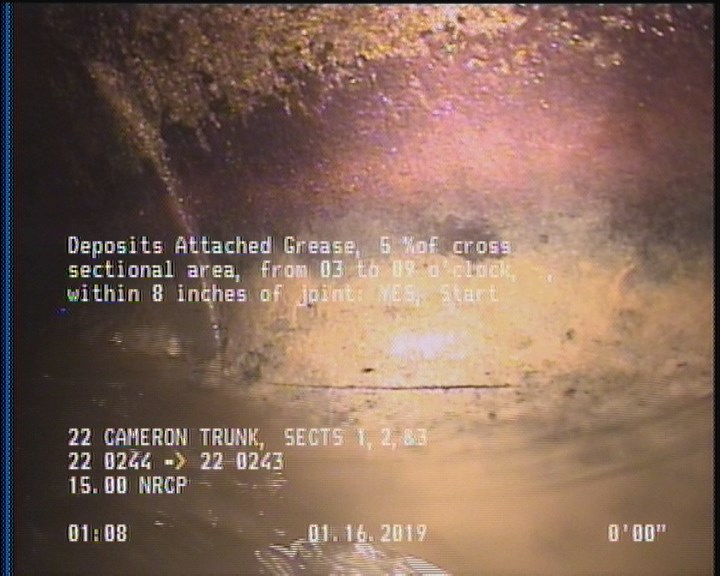

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

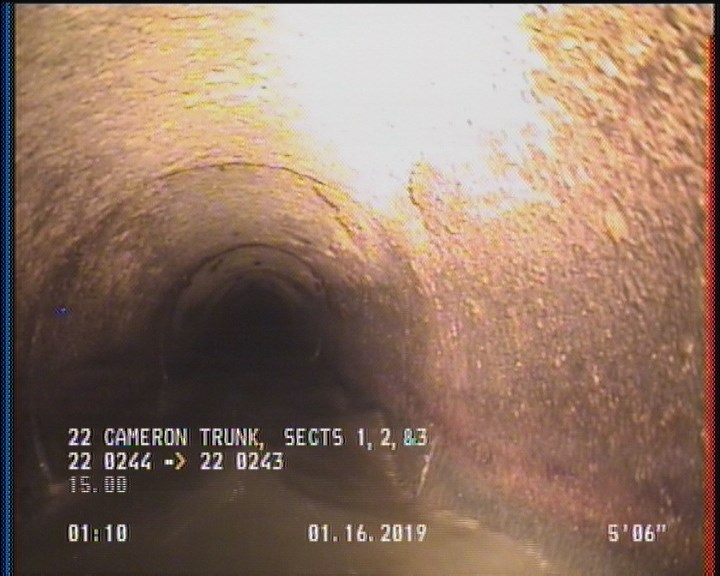

5.5 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 107.8 | SSS | — |
| 107.8 | SAP | — |
| 2 | SAP | — |
| 0 | MWL | — |
| 109.5 | AMH | 22 0243 |
| 107.8 | DAGS | — |
| 0 | MWM | — |
| 5.5 | SSS | — |
| 2 | DAGS | — |
| 60.3 | TFC | — |
| 57.2 | TFC | — |
| 0 | AMH | 22 0244 |
| 2.9 | TFC | — |
Properties (6)
- additional_info
- SC365671
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-16T01:06:24-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
