Wastewater/Activity/PacpInspection/1.0Dec 27, 2018, 09:55 AM
22 0163_22 0162 _12272018_021026.mp4
- Date
- 12/27/2018
- W/O
- 740645
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00805
- PipeID
- P16405
- Time
- 1:55 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6283
- Sewer Name
- 22 DISTRICT #22 MAIN TRUNK
- City
- SAN DIMAS
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 28
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740645_TV22178_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0163
- Downstream MH
- 22 0162
- Dir. of Survey
- Downstream
- Length Surveyed
- 379.5 ft.
- Total Length
- 379.5 ft.
- Structural Index
- 3
- Structural Quick
- 3M00
- Structural Rating
- 216
- O&M Index
- 2
- O&M Quick
- 412N
- O&M Rating
- 154
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 370
Observation photos (3)

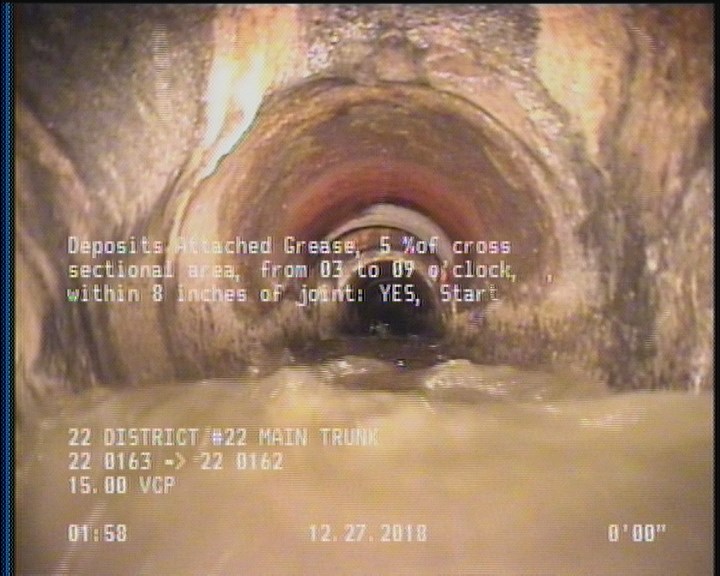

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

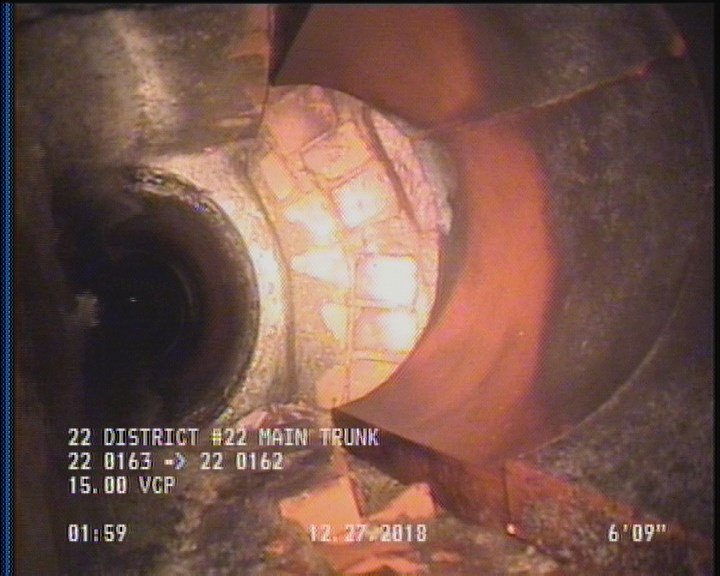

6.8 ft. - General Observation - ABANDONED MH
17.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 135.4 | TFC | — |
| 0 | MWL | — |
| 6.8 | MGO | ABANDONED MH |
| 1.7 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | 22 0163 |
| 0 | MWM | — |
| 377.8 | CM | — |
| 17.5 | CM | — |
| 284.2 | TFC | — |
| 186.4 | TFC | — |
| 379.5 | AMH | 22 0162 |
| 377.8 | DAGS | — |
| 333.7 | TFC | — |
| 84.9 | TFC | — |
| 232.7 | TFC | — |
| 2 | DAGS | — |
Properties (6)
- additional_info
- SC365399
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-12-27T01:55:31-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
