Wastewater/Activity/PacpInspection/1.0Jan 10, 2019, 06:35 AM
H 0470_H 0469 _01092019_224155.mp4
- Date
- 01/09/2019
- W/O
- 740185
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00179
- PipeID
- P10867
- Time
- 10:35 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6297
- Sewer Name
- H JOINT OUTFALL H - UNIT 5C
- City
- EL MONTE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 29
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740185_TV15163_DEC2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- H 0470
- Downstream MH
- H 0469
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (4)

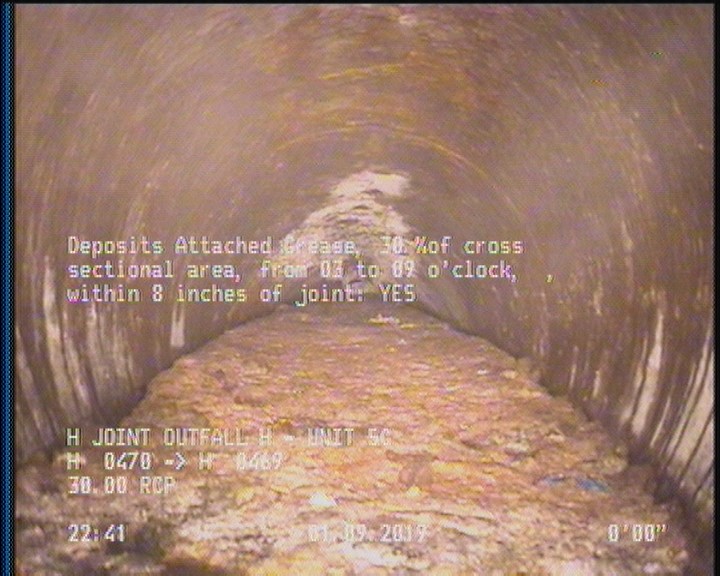

2 ft. - Deposits Attached Grease, 30 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

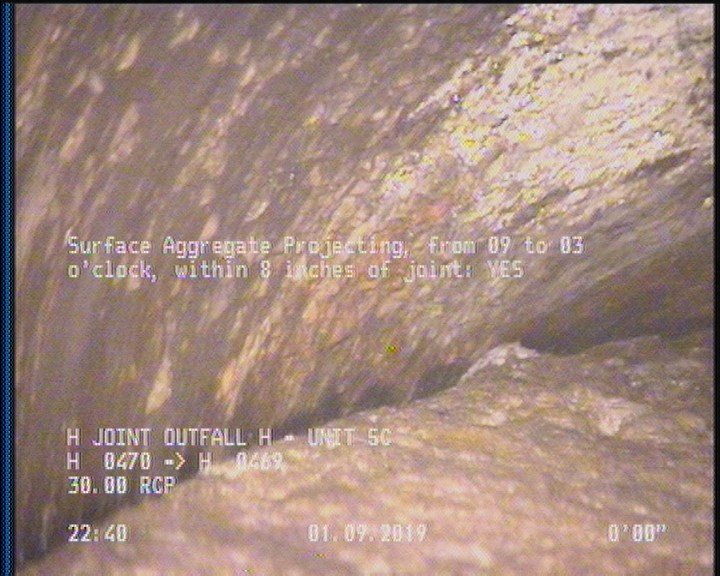

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES

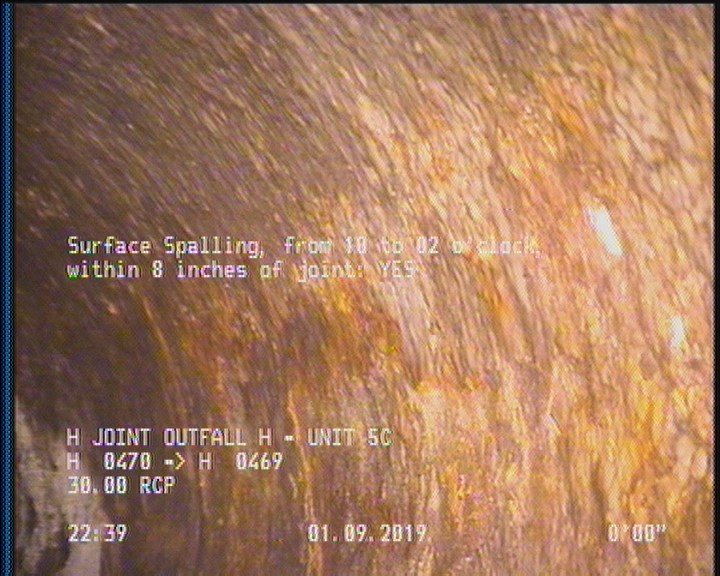

2 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES

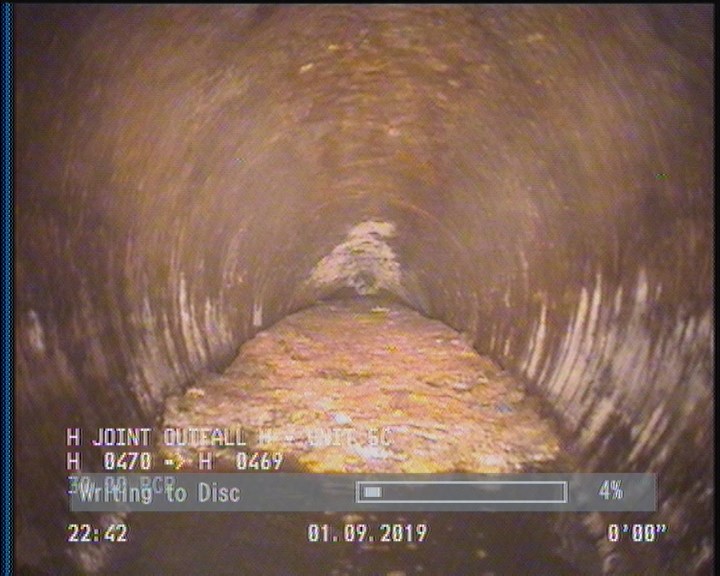

2 ft. - Survey Abandoned - VIEW OF DOWNLEG OF U/S SIPHON.
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | H 0470 |
| 2 | DAGS | — |
| 2 | SAP | — |
| 2 | SSS | — |
| 0 | MWL | — |
| 2 | MSA | VIEW OF DOWNLEG OF U/S SIPHON. |
Properties (6)
- additional_info
- SC365663
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-09T22:35:41-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
