Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 31, 2018, 11:28 AM

  • 18 0304_18 0303 _12312018_034133.mp4

Date
12/31/2018
W/O
740143
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00683
PipeID
P14135
Time
3:28 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6285
Sewer Name
18 LA MIRADA TRUNK, SECTS 1&2
City
SANTA FE SPRINGS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
31
Purpose
Routine Assessment
Project
RFIR_WO_740143_TV18145_DEC2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0303
Downstream MH
18 0304
Dir. of Survey
Upstream
Length Surveyed
174.3 ft.
Total Length
174.3 ft.
Structural Index
4
Structural Quick
5F3F
Structural Rating
272
O&M Index
3
O&M Quick
3F2F
O&M Rating
170
Overall Index
3
Overall Quick
—
Overall Rating
442
Pipe schematic from manhole 18 0303 to 18 0304
MH: 18 0303MH: 18 0304upstream0 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish0 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish0 ft. MSA - Survey Abandoned - REVERSAL COMPLETE.0 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"29.8 ft. RPP - Repair Patch, from 01 to 02 o'clock, within 8 inches of joint: YES48.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"96.9 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"144.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"172.3 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS172.3 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start172.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start172.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start174.3 ft. MWL - Water Level, 25 %of cross sectional area174.3 ft. AMH - Downstream Manhole, Survey Begins - 18 0303174.3 ft. MWM - Water Mark, 35 %of cross sectional area

Observation photos (4)

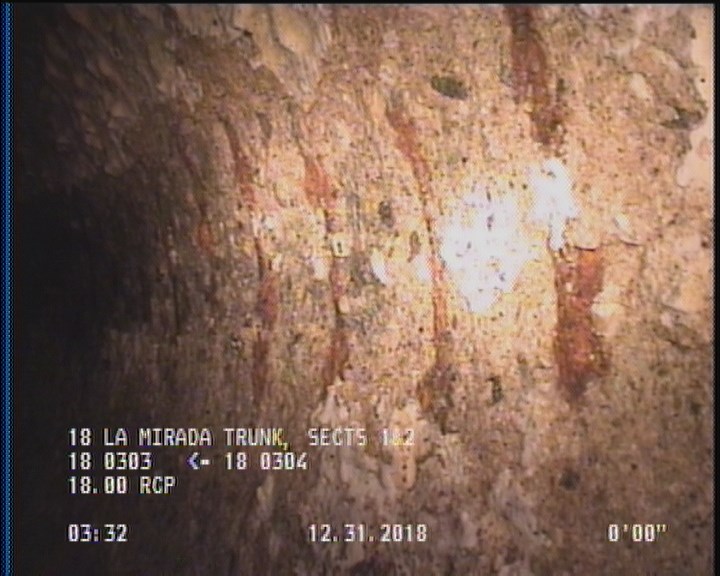

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

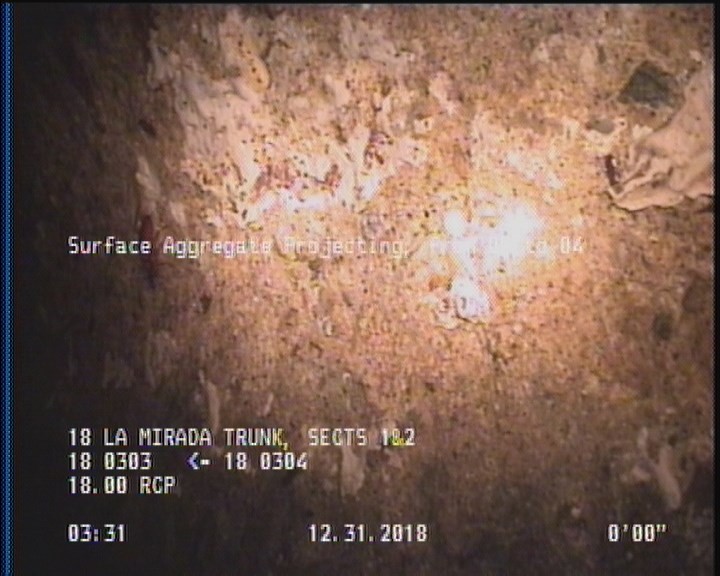

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

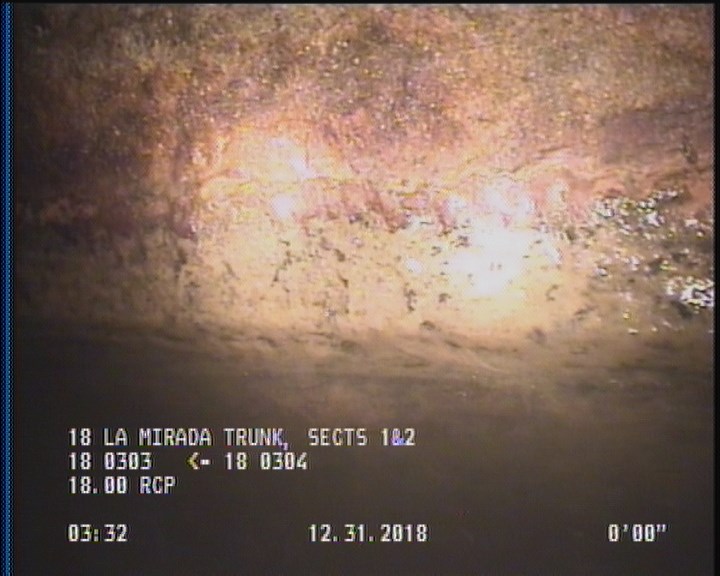

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

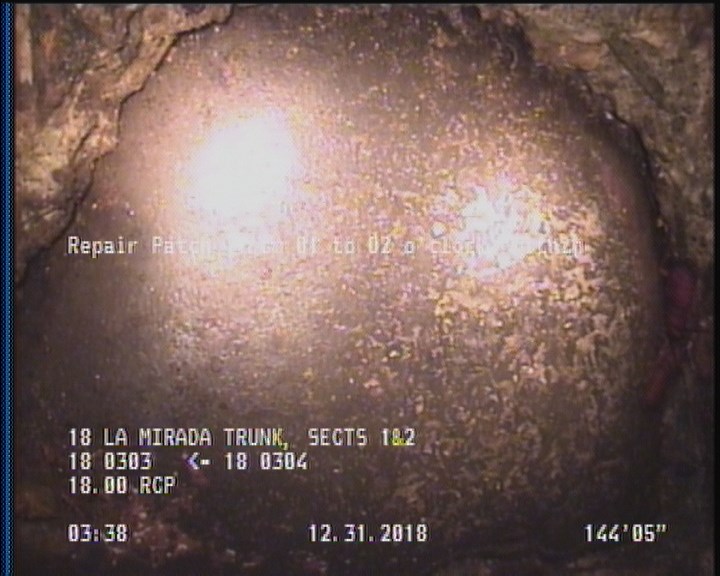

  • Repair Patch, from 01 to 02 o'clock, within 8 inches of joint: YES

    144.5 ft. - Repair Patch, from 01 to 02 o'clock, within 8 inches of joint: YES

All inspections of P14135Work order 740143

Observations (17)

DistanceCodeObservation
0MWL—
174.3SRV—
77.4TFC—
29.5TFC—
166.3TFA—
174.3DSZ—
0AMH18 0303
174.3DAGS—
125.6TFC—
2DSZDEBRIS
144.5RPP—
174.3MSAREVERSAL COMPLETE.
2SRV—
174.3SAP—
2SAP—
0MWM—
2DAGS—

Properties (6)

additional_info
SC365651
custom_field_two
2
customer
LACSD
datetime
2018-12-31T03:28:57-08:00
documentation
PRO PIPE
is_lateral_inspection
false
