Wastewater/Activity/PacpInspection/1.0Dec 27, 2018, 09:52 AM
22 0436_22 0435 _12272018_020408.mp4
- Date
- 12/27/2018
- W/O
- 740124
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00815
- PipeID
- P16773
- Time
- 1:52 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6305
- Sewer Name
- 22 LARK ELLEN TRUNK, SECTS 2&3
- City
- COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740124_TV22047_DEC2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 0436
- Downstream MH
- 22 0435
- Dir. of Survey
- Downstream
- Length Surveyed
- 283.7 ft.
- Total Length
- 283.7 ft.
- Structural Index
- 3
- Structural Quick
- 413J
- Structural Rating
- 174
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 174
Observation photos (3)

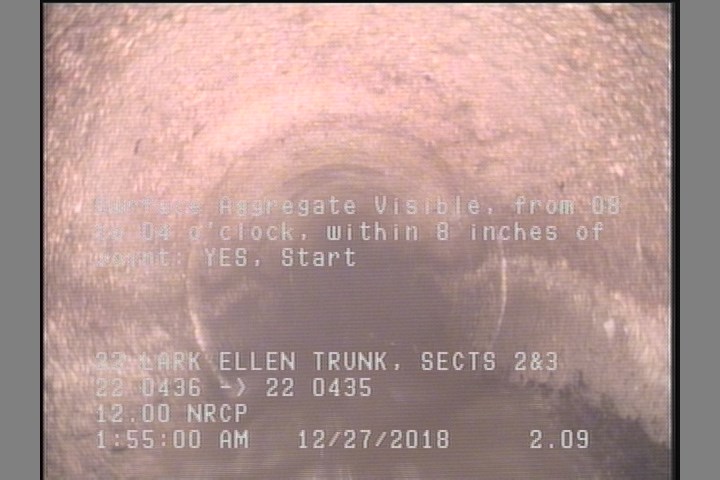

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

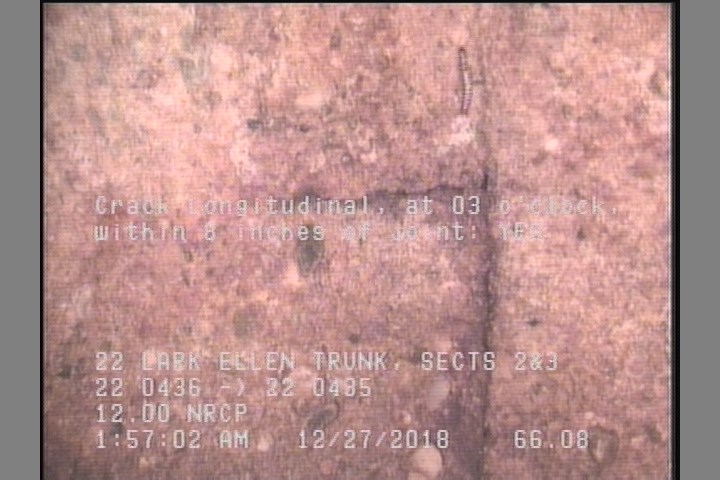

66.1 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

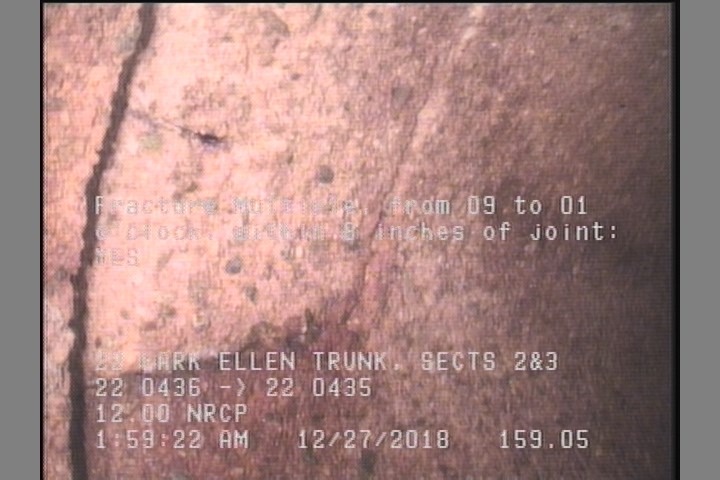

159.1 ft. - Fracture Multiple, from 09 to 01 o'clock, within 8 inches of joint: YES
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 159.1 | FM | — |
| 283.7 | SAV | — |
| 59.6 | TF | — |
| 0 | MWL | — |
| 66.1 | CL | — |
| 0 | MGO | CONNECTION AT MH 6 O'CLOCK |
| 273.6 | TF | — |
| 0 | AMH | 22 0436 |
| 176.6 | TF | — |
| 95.6 | TF | — |
| 261.5 | TF | — |
| 168.5 | TF | — |
| 2.1 | SAV | — |
| 0 | MWM | — |
| 208.9 | TF | — |
| 283.7 | AMH | 22 0435 |
| 196.9 | TF | — |
Properties (6)
- additional_info
- SC365489
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-12-27T01:52:09-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
