Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 27, 2018, 08:58 AM

  • 22 0441_22 0440 _12272018_011403.mp4

Date
12/27/2018
W/O
740124
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00815
PipeID
P16778
Time
12:58 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6305
Sewer Name
22 LARK ELLEN TRUNK, SECTS 2&3
City
COVINA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
19
Purpose
Routine Assessment
Project
RFIR_WO_740124_TV22047_DEC2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
22 0441
Downstream MH
22 0440
Dir. of Survey
Downstream
Length Surveyed
364.6 ft.
Total Length
364.6 ft.
Structural Index
3
Structural Quick
3N00
Structural Rating
222
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
222
Pipe schematic from manhole 22 0441 to 22 0440
MH: 22 0441MH: 22 0440downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 04410 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWM - Water Mark, 20 %of cross sectional area2.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start7.6 ft. CM - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES83 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"86.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"135.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"139.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"184 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"188 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"236.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"240.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"285.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"289.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"313.2 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES334.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"336.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"338.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"364.6 ft. AMH - Downstream Manhole, Survey Ends - 22 0440364.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (3)

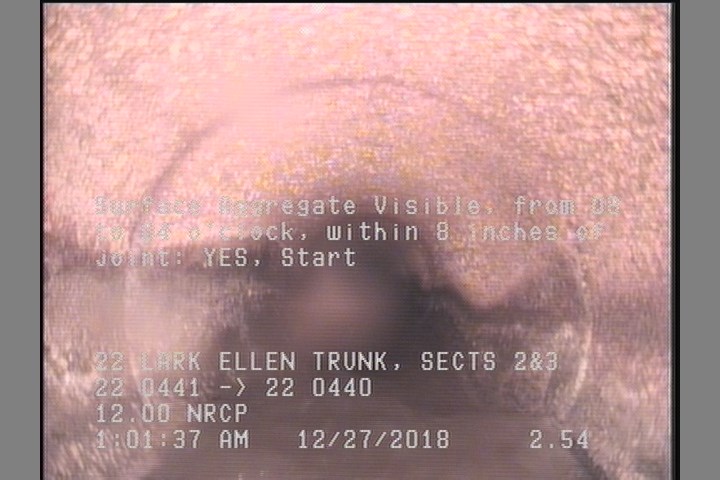

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

    7.6 ft. - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

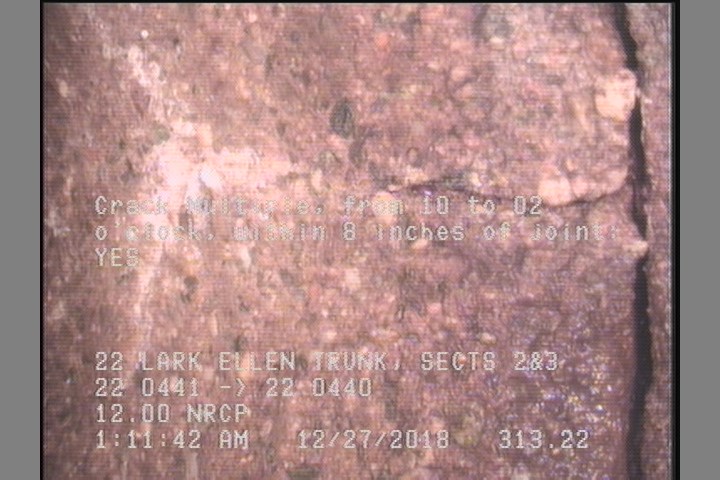

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    313.2 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

All inspections of P16778Work order 740124

Observations (22)

DistanceCodeObservation
334.5TFC—
188TFC—
0AMH22 0441
86.9TFC—
0MWL—
139.5TF—
236.9TFC—
364.6AMH22 0440
364.6SAV—
7.6CM—
135.3TFC—
2.5SAV—
184TFC—
336.3TF—
240.9TFC—
338.9TFC—
0MGOCONNECTION AT MH 3 O'CLOCK
83TF—
0MWM—
285.8TFC—
289.6TFC—
313.2CM—

Properties (6)

additional_info
SC365489
custom_field_two
3
customer
LACSD
datetime
2018-12-27T00:58:59-08:00
documentation
PROPIPE
is_lateral_inspection
false
