Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 3, 2019, 09:07 AM

  • 02 2252_02 2251 _01032019_012334.mp4

Date
01/03/2019
W/O
740019
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00353
PipeID
P03022
Time
1:07 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6289
Sewer Name
02 TRACT #5445 RELIEF TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
13
Purpose
Routine Assessment
Project
RFIR_WO_740019_TV02354_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 2252
Downstream MH
02 2251
Dir. of Survey
Downstream
Length Surveyed
455.5 ft.
Total Length
455.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2Q00
O&M Rating
182
Overall Index
2
Overall Quick
—
Overall Rating
182
Pipe schematic from manhole 02 2252 to 02 2251
MH: 02 2252MH: 02 2251downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 02 22520 ft. MWL - Water Level, 15 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start454.5 ft. MGO - General Observation - COCKROACHES IN MANHOLE454.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish455.5 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK455.5 ft. AMH - Downstream Manhole, Survey Ends - 02 2251

Observation photos (2)

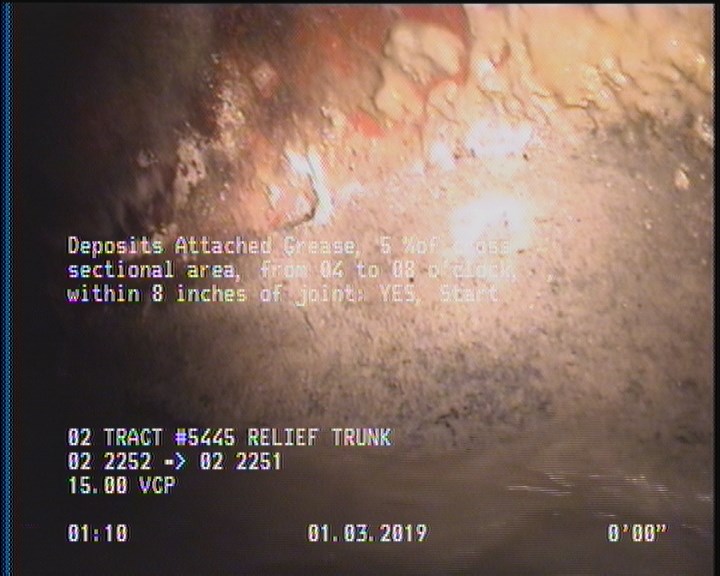

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

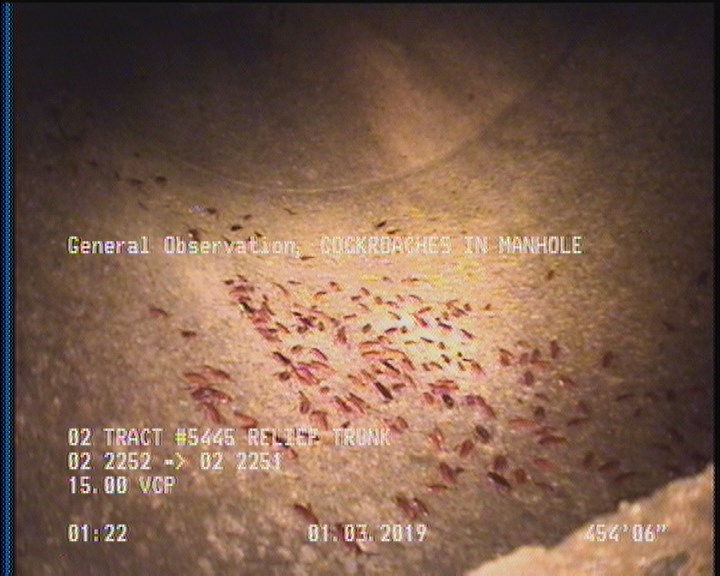

  • General Observation - COCKROACHES IN MANHOLE

    454.5 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P03022Work order 740019

Observations (9)

DistanceCodeObservation
2DAGS—
0MWM—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0AMH02 2252
454.5MGOCOCKROACHES IN MANHOLE
454.5DAGS—
455.5MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0MWL—
455.5AMH02 2251

Properties (6)

additional_info
SC365655
custom_field_two
3
customer
LACSD
datetime
2019-01-03T01:07:33-08:00
documentation
PRO PIPE
is_lateral_inspection
false
