Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 8, 2019, 09:40 AM

  • 05 1344_05 1343_282019_015449.mp4

Date
02/08/2019
W/O
0754490
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00444
PipeID
P06561
Time
1:40 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1103
Sewer Name
05 GARDENA PUMP TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Maintenance Related
Project
201908MDM_GARDENA_PUMP_TRUNK
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
05 1343
Downstream MH
05 1344
Dir. of Survey
Upstream
Length Surveyed
427.7 ft.
Total Length
427.7 ft.
Structural Index
5
Structural Quick
5341
Structural Rating
19
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
5
Overall Quick
—
Overall Rating
19
Pipe schematic from manhole 05 1343 to 05 1344
MH: 05 1343MH: 05 1344upstream0 ft. AMH - Downstream Manhole, Survey Ends - 2:20AM0.3 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0.3 ft. MGO - General Observation - MAG COAT 90% FINISH0.3 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG47 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Capped49.5 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Capped95.9 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Capped98.6 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Capped126.2 ft. HSV - Hole Soil Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - HOLE UNDER MAG COAT127.2 ft. HSV - Hole Soil Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - HOLE UNDER MAG COAT127.9 ft. HSV - Hole Soil Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - HOLE UNDER MAG COAT144.8 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Capped147.5 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open194 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Capped196.8 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Capped243.3 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Capped245.8 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Capped286.9 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open292.3 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Capped294.9 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Capped341.4 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Capped344.3 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Capped390.7 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Capped392.9 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6", 6" - Capped425.7 ft. MGO - General Observation - 90% MAG COAT START425.7 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG427.7 ft. MWL - Water Level, 5 %of cross sectional area427.7 ft. MWM - Water Mark, 10 %of cross sectional area427.7 ft. AMH - Upstream Manhole, Survey Begins - 1:45AM427.7 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active427.7 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN

Observation photos (4)

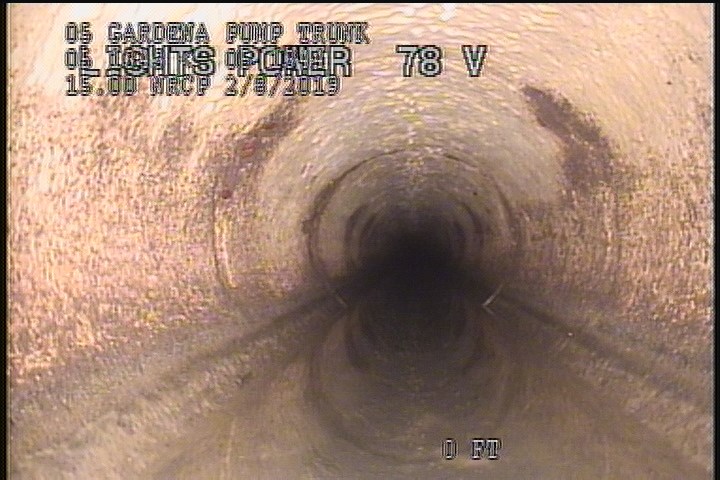

  • General Observation - 90% MAG COAT START

    2 ft. - General Observation - 90% MAG COAT START

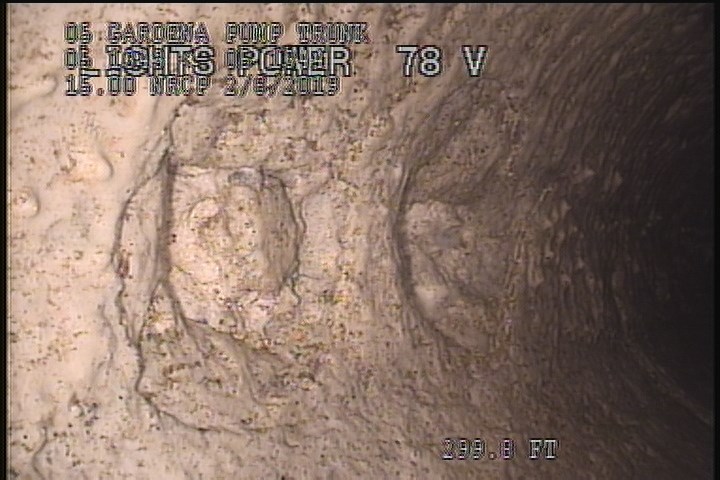

  • Hole Soil Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - HOLE UNDER MAG COAT

    299.8 ft. - Hole Soil Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - HOLE UNDER MAG COAT

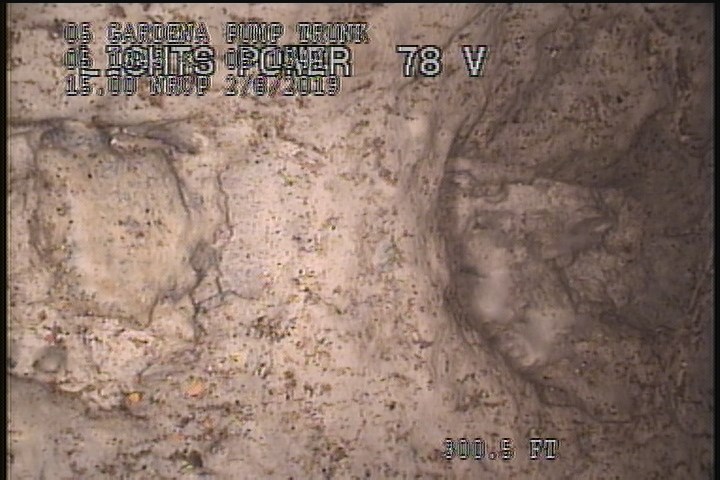

  • Hole Soil Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - HOLE UNDER MAG COAT

    300.5 ft. - Hole Soil Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - HOLE UNDER MAG COAT

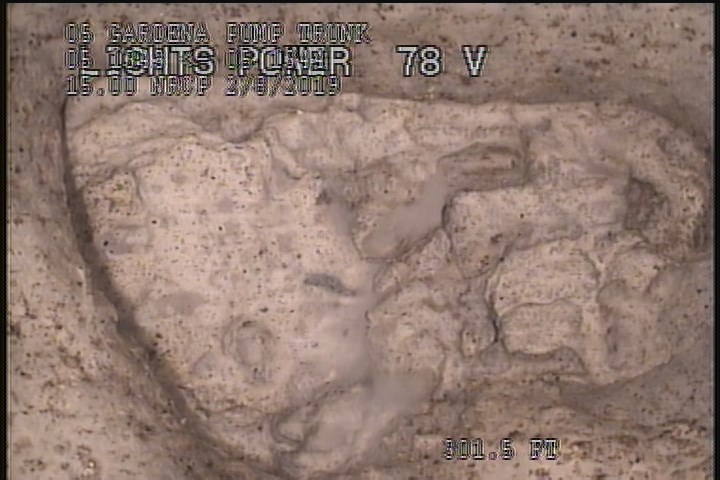

  • Hole Soil Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - HOLE UNDER MAG COAT

    301.5 ft. - Hole Soil Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - HOLE UNDER MAG COAT

All inspections of P06561Work order 0754490

Observations (31)

DistanceCodeObservation
181.9TFCCapped
184.4TFCCapped
331.8TFCCapped
37TFCCapped
427.4MGOConn. @ Mh, 9 O' Clock. Active
301.5HSVHOLE UNDER MAG COAT
427.4MGOMAG COAT 90% FINISH
0MWL—
86.3TFCCapped
132.8TFCCapped
83.4TFCCapped
427.4SAMSEVERE AGG
0MWM—
233.7TFCCapped
329.1TFCCapped
427.7AMH2:20AM
299.8HSVHOLE UNDER MAG COAT
380.7TFCCapped
2MGO90% MAG COAT START
0AMH1:45AM
2SAMSEVERE AGG
0MGOConn. @ Mh, 9 O' Clock. Active
280.2TFOpen
378.2TFCCapped
140.8TFOpen
230.9TFCCapped
135.4TFCCapped
34.8TFCCapped
282.9TFCCapped
0MGOConn. @ Mh, 3 O' Clock. OPEN
300.5HSVHOLE UNDER MAG COAT
