Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 8, 2019, 08:23 AM

  • 05 1349_05 1348_282019_003508.mp4

Date
02/08/2019
W/O
0754490
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00444
PipeID
P06566
Time
12:23 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1103
Sewer Name
05 GARDENA PUMP TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Maintenance Related
Project
201908MDM_GARDENA_PUMP_TRUNK
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
05 1349
Downstream MH
05 1348
Dir. of Survey
Downstream
Length Surveyed
332.6 ft.
Total Length
332.6 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
3
O&M Quick
3222
O&M Rating
10
Overall Index
3
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 05 1349 to 05 1348
MH: 05 1349MH: 05 1348downstream0 ft. AMH - Upstream Manhole, Survey Begins - 12:25AM0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area2 ft. MGO - General Observation - MAG COAT 98% START2 ft. SAM - Surface Aggregate Missing, from 07 to 05 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG94.9 ft. MGO - General Observation - MAG COAT 98%103.6 ft. TFD - Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped TAP ROOT& WATER INFILTRATION150.1 ft. TBC - Tap Break-In Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped201.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open253 ft. RTB - Roots Tap Barrell, at 12 o'clock, 5 %, within 8 inches of joint: YES, Start - 1" TAP ROOT253 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped POSSIBLE CONN SURROUNDED BY ROOTS267.6 ft. RTB - Roots Tap Barrell, at 12 o'clock, 5 %, within 8 inches of joint: YES, Finish - FINISH271.3 ft. RMJ - Roots Medium Joint, from 10 to 03 o'clock, 20 %, within 8 inches of joint: YESR332.1 ft. MGO - General Observation - MAG COAT 98% FINISH332.1 ft. SAM - Surface Aggregate Missing, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG332.6 ft. AMH - Downstream Manhole, Survey Ends - 12:55AM

Observation photos (4)

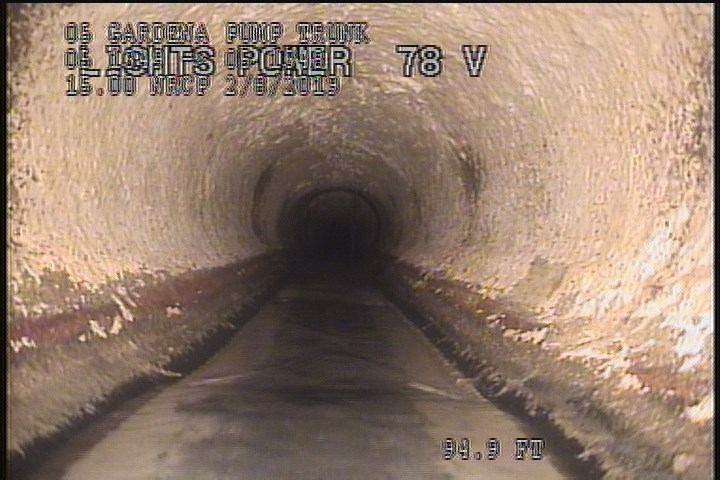

  • General Observation - MAG COAT 98%

    94.9 ft. - General Observation - MAG COAT 98%

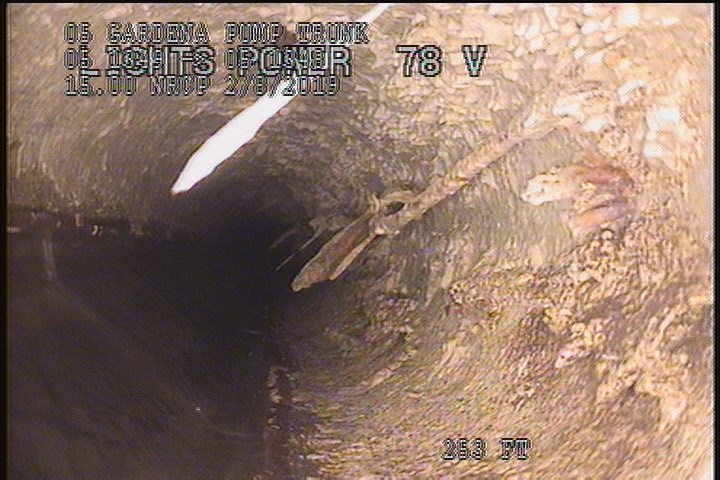

  • Roots Tap Barrell, at 12 o'clock, 5 %, within 8 inches of joint: YES, Start - 1" TAP ROOT

    253 ft. - Roots Tap Barrell, at 12 o'clock, 5 %, within 8 inches of joint: YES, Start - 1" TAP ROOT

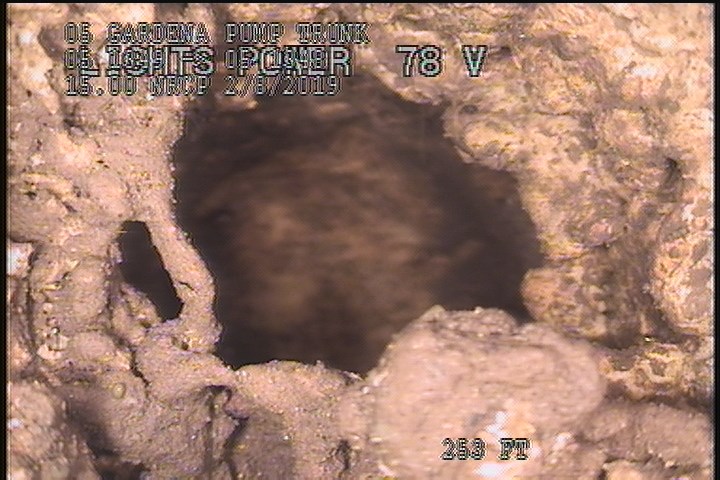

  • Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped POSSIBLE CONN SURROUNDED BY ROOTS

    253 ft. - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped POSSIBLE CONN SURROUNDED BY ROOTS

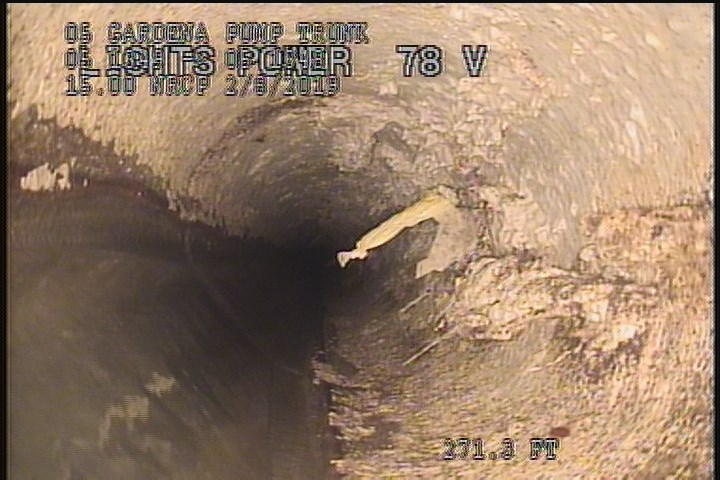

  • Roots Medium Joint, from 10 to 03 o'clock, 20 %, within 8 inches of joint: YESR

    271.3 ft. - Roots Medium Joint, from 10 to 03 o'clock, 20 %, within 8 inches of joint: YESR

All inspections of P06566Work order 0754490

Observations (16)

DistanceCodeObservation
150.1TBCCapped
201.4TFOpen
0AMH12:25AM
253RTB1" TAP ROOT
2MGOMAG COAT 98% START
253TFCCapped POSSIBLE CONN SURROUNDED BY ROOTS
332.6AMH12:55AM
2SAMSEVERE AGG
332.1MGOMAG COAT 98% FINISH
332.1SAMSEVERE AGG
271.3RMJ—
94.9MGOMAG COAT 98%
267.6RTBFINISH
103.6TFDCapped TAP ROOT& WATER INFILTRATION
0MWL—
0MWM—
