Wastewater/Activity/PacpInspection/1.0Feb 14, 2019, 09:50 AM

  • 02 1866A_02 1866_2142019_021320.mp4

Date
02/14/2019
W/O
0751205
Weather
Heavy Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00246
PipeID
P04653
Time
1:50 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1112
Sewer Name
02 DOUGLAS AVENUE TRUNK
City
LOS ANGLES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Capital Improvement Program Assesment
Project
20190214MDM_DOUGLAS_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
02 1866A
Downstream MH
02 1866
Dir. of Survey
Downstream
Length Surveyed
64.7 ft.
Total Length
64.7 ft.
Structural Index
2
Structural Quick
4431
Structural Rating
47
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
47
Pipe schematic from manhole 02 1866A to 02 1866
MH: 02 1866AMH: 02 1866downstream0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:50AM6 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT8 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL10.5 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - SL13.5 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Capped14.2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL15.8 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SL20.6 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE21.1 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL29.3 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL30.9 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL35 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL38.9 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL38.9 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL42.8 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL46.6 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL49.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open49.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL51.2 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H59.1 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL63.1 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES - SL63.1 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL64.7 ft. AMH - Downstream Manhole, Survey Ends - 2:15AM

Observation photos (2)

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL

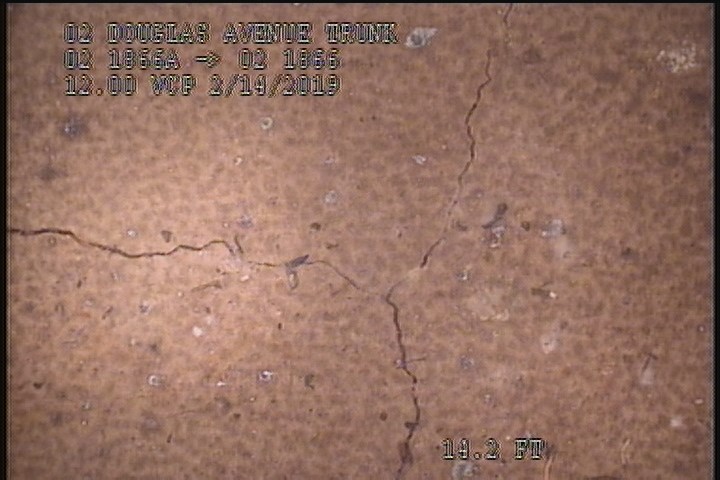

    14.2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL

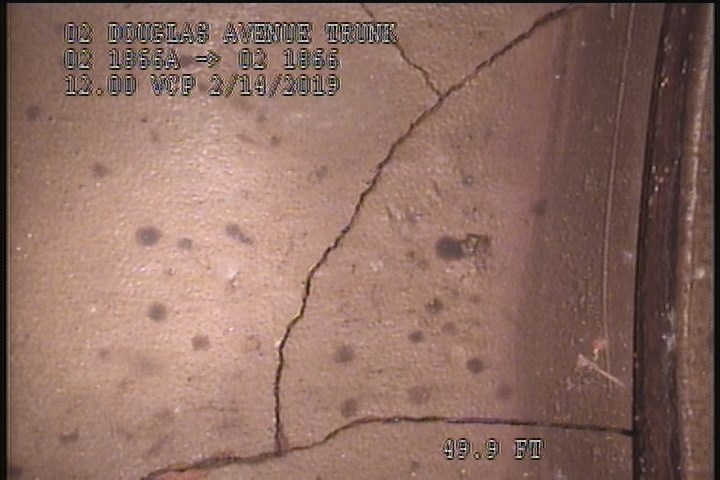

    49.9 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL

All inspections of P04653Work order 0751205

Observations (26)

DistanceCodeObservation
35FCSL
63.1FLSL
8FCSL
20.6FMHAIRLINE
10.5FCSL
0MGOConn. @ Mh, 3 O' Clock. Active
42.8FCSL
15.8FCSL
63.1FCSL
30.9FCSL
29.3FCSL
59.1FCSL
0MWM—
49.9TFOpen
14.2FMSL
38.9FCSL
0MWL—
13.5TFCCapped
51.2FCH
49.9FMSL
64.7AMH2:15AM
0AMH1:50AM
21.1FCSL
6FMSLIGHT
38.9FCSL
46.6FCSL

Properties (4)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2019-02-14T01:50:00-08:00
