Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 12, 2019, 05:43 PM

  • 05 0186_05 0185_2122019_100418.mp4

Date
02/12/2019
W/O
0754498
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00431
PipeID
P05478
Time
9:43 AM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Jetting
Media Label
G7915
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
06
Purpose
Maintenance Related
Project
20190212SHO_DISTRICT_5_MAIN_TRUNK
Material
NRCP
Shape
Circular
Height
14.380000114440918 in.
Upstream MH
05 0186
Downstream MH
05 0185
Dir. of Survey
Downstream
Length Surveyed
331.3 ft.
Total Length
331.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4131
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 05 0186 to 05 0185
MH: 05 0186MH: 05 0185downstream0 ft. AMH - Upstream Manhole, Survey Begins - MH 01860 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area51 ft. MGP - General Photograph - AFTER CUTTING - 15%51 ft. RMB - Roots Medium Barrell, from 08 to 12 o'clock, 25 %, within 8 inches of joint: YES - BEFORE184.6 ft. RFL - Roots Fine Lateral, at 10 o'clock250.7 ft. MGP - General Photograph - AFTER CUTTING - 15%250.7 ft. RML - Roots Medium Lateral, from 08 to 11 o'clock, 20 %, within 8 inches of joint: YES - BEFORE331.3 ft. AMH - Downstream Manhole, Survey Ends - MH 0185

Observation photos (4)

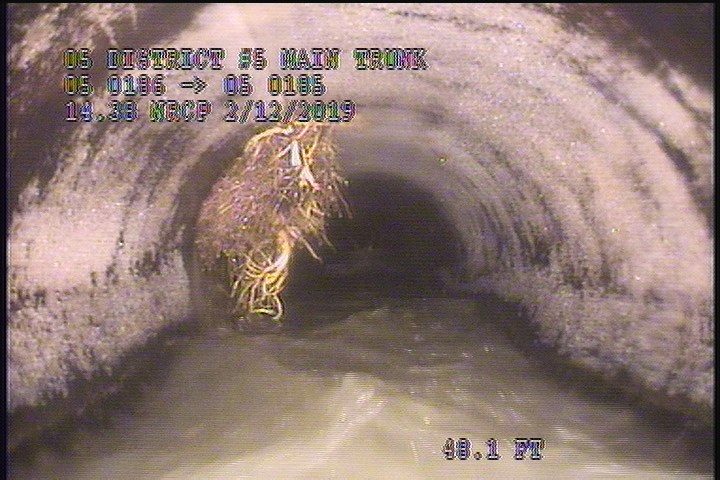

  • General Photograph - AFTER CUTTING - 15%

    51 ft. - General Photograph - AFTER CUTTING - 15%

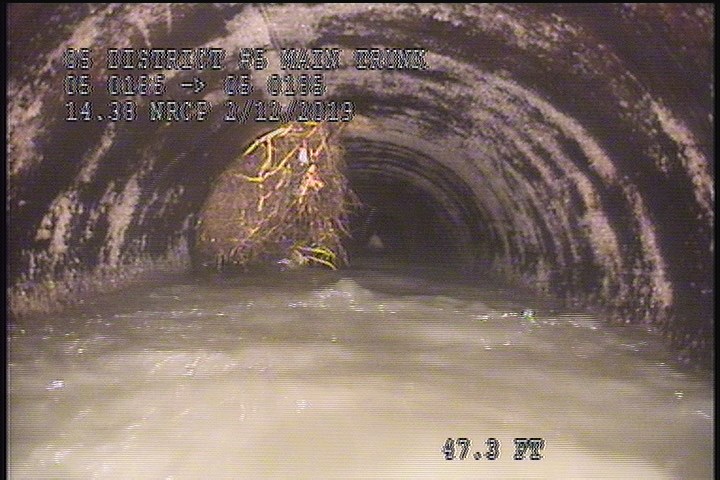

  • Roots Medium Barrell, from 08 to 12 o'clock, 25 %, within 8 inches of joint: YES - BEFORE

    51 ft. - Roots Medium Barrell, from 08 to 12 o'clock, 25 %, within 8 inches of joint: YES - BEFORE

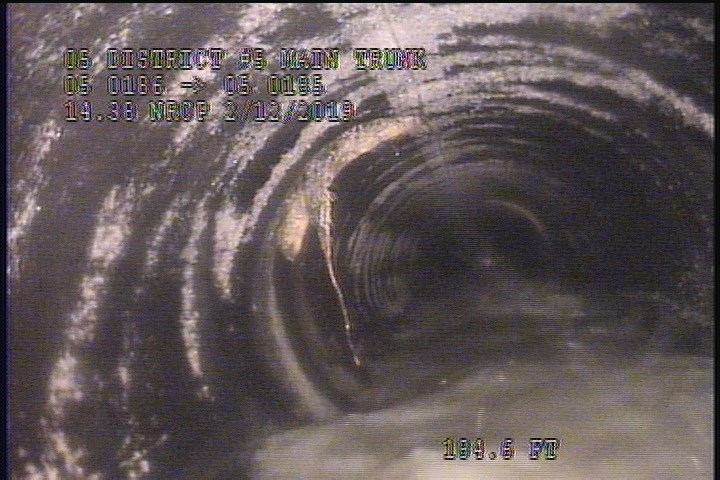

  • Roots Fine Lateral, at 10 o'clock

    184.6 ft. - Roots Fine Lateral, at 10 o'clock

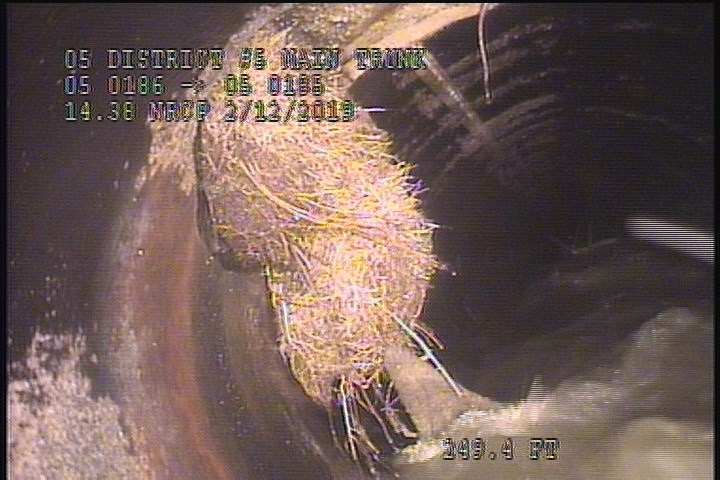

  • Roots Medium Lateral, from 08 to 11 o'clock, 20 %, within 8 inches of joint: YES - BEFORE

    250.7 ft. - Roots Medium Lateral, from 08 to 11 o'clock, 20 %, within 8 inches of joint: YES - BEFORE

All inspections of P05478Work order 0754498

Observations (9)

DistanceCodeObservation
0AMHMH 0186
250.7MGPAFTER CUTTING - 15%
0MWM—
51MGPAFTER CUTTING - 15%
250.7RMLBEFORE
0MWL—
51RMBBEFORE
331.3AMHMH 0185
184.6RFL—

Properties (6)

additional_info
ROOT INSPECTION
custom_field_three
ROOT INSPECTION ONLY
custom_field_two
5
customer
LACSD
datetime
2019-02-12T09:43:03-08:00
lining
CIPP
