Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 11, 2019, 07:25 PM

  • 05 0187_05 0186_2112019_122514.mp4

Date
02/11/2019
W/O
0754498
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00431
PipeID
P05479
Time
11:25 AM
Certificate
PENDING
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7913R
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
06
Purpose
Maintenance Related
Project
20190211MI_DISTRICT_5_MAIN_TRUNK
Material
NRCP
Shape
Circular
Height
14.260000228881836 in.
Upstream MH
05 0187
Downstream MH
05 0186
Dir. of Survey
Downstream
Length Surveyed
328.6 ft.
Total Length
328.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4122
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 05 0187 to 05 0186
MH: 05 0187MH: 05 0186downstream0 ft. AMH - Upstream Manhole, Survey Begins - 12:30PM0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - CIPP LINER242.3 ft. TFD - Tap Factory Made Defective, at 01 o'clock, -, within 8 inches of joint: NO, 4" - ROOTS < 5%291.9 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 4" - ROOTS < 5%328.5 ft. MGO - General Observation - CONNECTION AT MH, 9 OCLOCK328.6 ft. AMH - Downstream Manhole, Survey Ends - 12:55PM328.6 ft. MGO - General Observation - CONNECTION AT MH, 3 OCLOCK,

Observation photos (3)

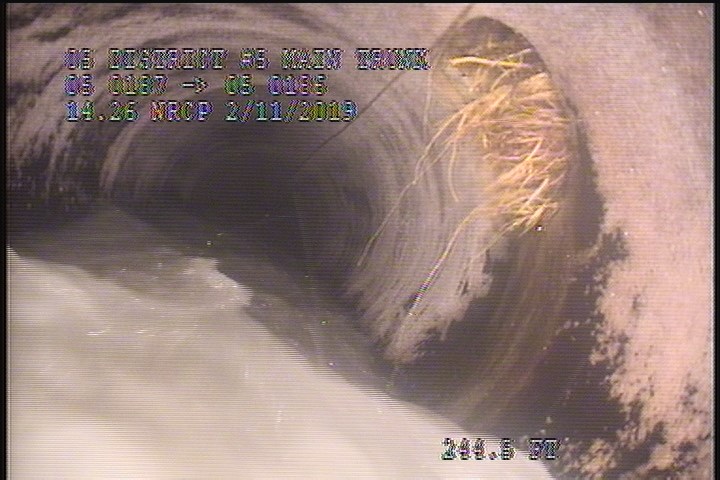

  • Tap Factory Made Defective, at 01 o'clock, -, within 8 inches of joint: NO, 4" - ROOTS < 5%

    242.3 ft. - Tap Factory Made Defective, at 01 o'clock, -, within 8 inches of joint: NO, 4" - ROOTS < 5%

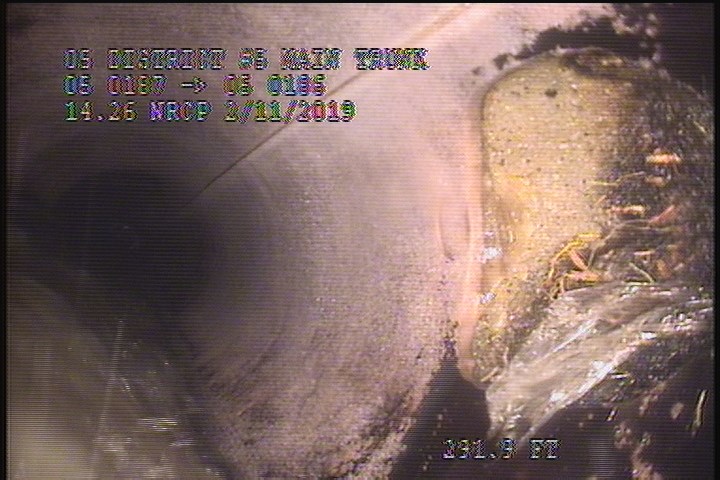

  • Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 4" - ROOTS < 5%

    291.9 ft. - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 4" - ROOTS < 5%

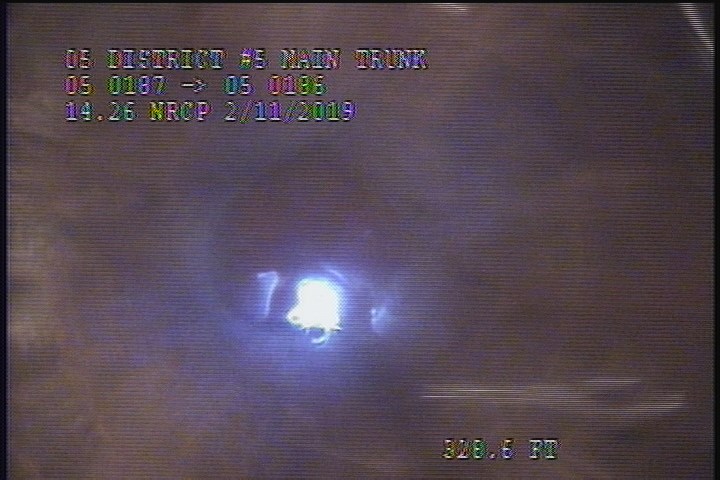

  • Downstream Manhole, Survey Ends - 12:55PM

    328.6 ft. - Downstream Manhole, Survey Ends - 12:55PM

All inspections of P05479Work order 0754498

Observations (9)

DistanceCodeObservation
291.9TFDROOTS < 5%
0AMH12:30PM
0MWL—
242.3TFDROOTS < 5%
328.5MGOCONNECTION AT MH, 9 OCLOCK
0MWM—
328.6AMH12:55PM
328.6MGOCONNECTION AT MH, 3 OCLOCK,
0MGOCIPP LINER

Properties (4)

additional_info
ROOT EVALUATION ONLY
custom_field_two
3
customer
LACSD
datetime
2019-02-11T11:25:39-08:00
