Wastewater/Activity/PacpInspection/1.0Feb 11, 2019, 05:22 PM
05 0190_05 0189_2112019_094713.mp4
- Date
- 02/11/2019
- W/O
- 0754498
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00431
- PipeID
- P05482
- Time
- 9:22 AM
- Certificate
- PENDING
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7913R
- Sewer Name
- 05 DISTRICT #5 MAIN TRUNK
- City
- INGLEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 06
- Purpose
- Maintenance Related
- Project
- 20190211MI_DISTRICT_5_MAIN_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 14.260000228881836 in.
- Upstream MH
- 05 0190
- Downstream MH
- 05 0189
- Dir. of Survey
- Downstream
- Length Surveyed
- 320.7 ft.
- Total Length
- 320.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (4)

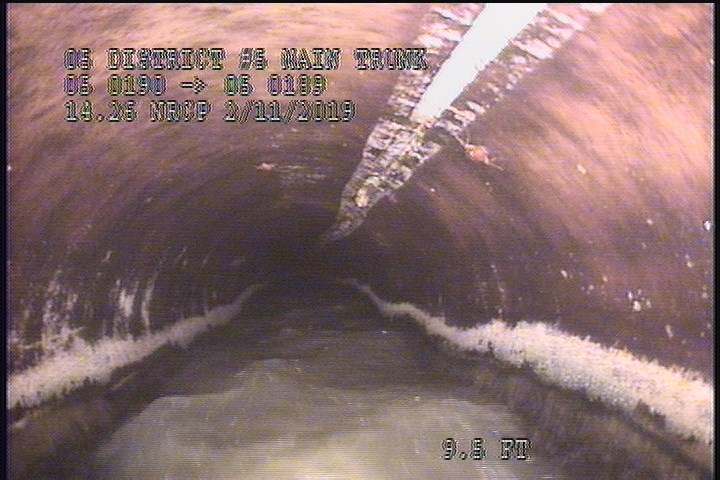

9.5 ft. - General Observation - CIPP LINER

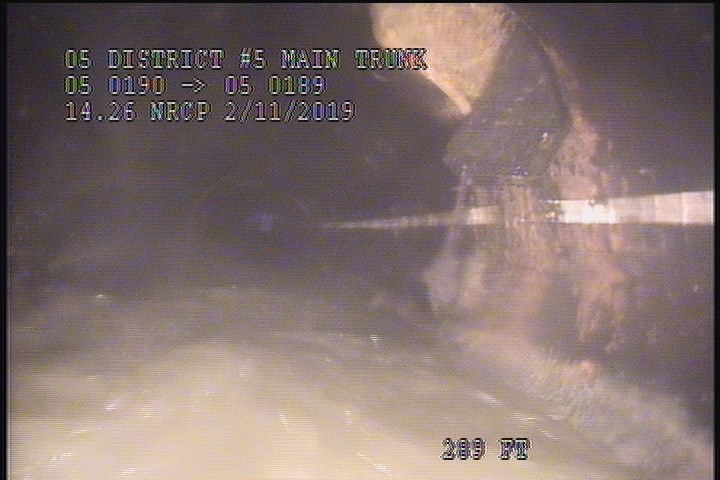

289 ft. - General Observation - ROOTS, 5%, 2 OCLOCK

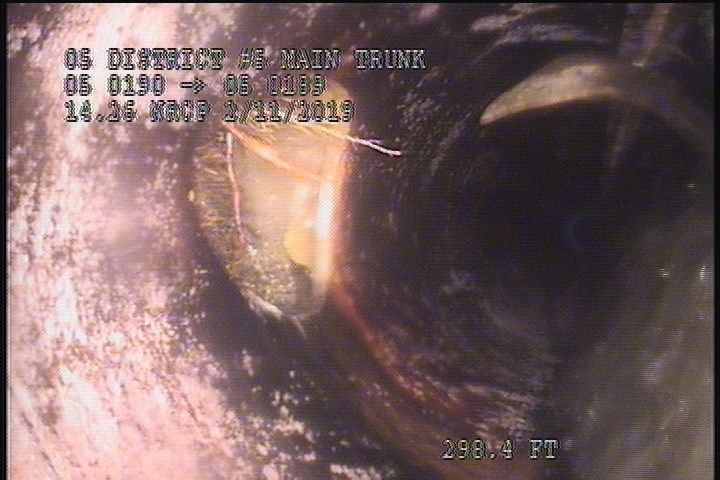

298.4 ft. - Tap Factory Made Defective, at 11 o'clock, -, within 8 inches of joint: NO, 4" - ROOTS

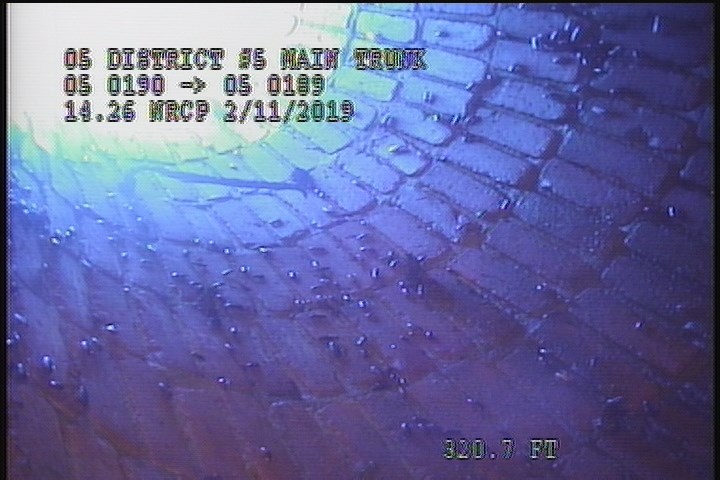

320.7 ft. - Downstream Manhole, Survey Ends - 10:15AM
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | CONNECTION AT MH, 3 OCLOCK |
| 9.5 | MGO | CIPP LINER |
| 0 | MWM | — |
| 0 | AMH | 09:45 AM |
| 289 | MGO | ROOTS, 5%, 2 OCLOCK |
| 298.4 | TFD | ROOTS |
| 0 | MWL | — |
| 320.7 | AMH | 10:15AM |
| 0 | MGO | CONNECTION AT MH, 9 OCLOCK |
| 44.9 | TFA | — |
Properties (5)
- additional_info
- ROOT EVALUATION ONLY
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-02-11T09:22:37-08:00
- lining
- CIPP
