Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 8, 2019, 05:45 PM

  • 02 1940_02 1883_282019_103418.mp4

Date
02/08/2019
W/O
0751205
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00246
PipeID
P04242
Time
9:45 AM
Certificate
PENDING
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7912
Sewer Name
02 DOUGLAS AVENUE TRUNK
City
EAST LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Capital Improvement Program Assesment
Project
20190208MI_DOUGLAS_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
02 1940
Downstream MH
02 1883
Dir. of Survey
Downstream
Length Surveyed
43.8 ft.
Total Length
43.8 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 02 1940 to 02 1883
MH: 02 1940MH: 02 1883downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - ROACHES AT MH > 500 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 10:30AM2.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start6.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start30.4 ft. MGO - General Observation - MULTIPLE CRACKS31.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"39.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"43.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish43.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish43.8 ft. AOC - Drop Connection, Survey Ends - 11:00AM43.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (4)

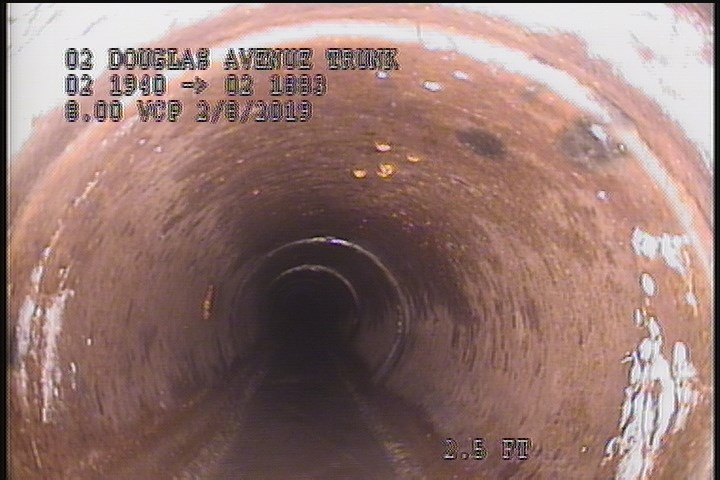

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

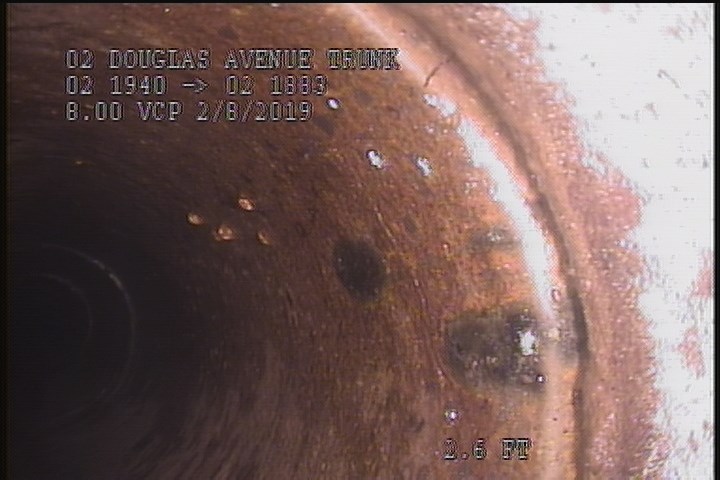

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

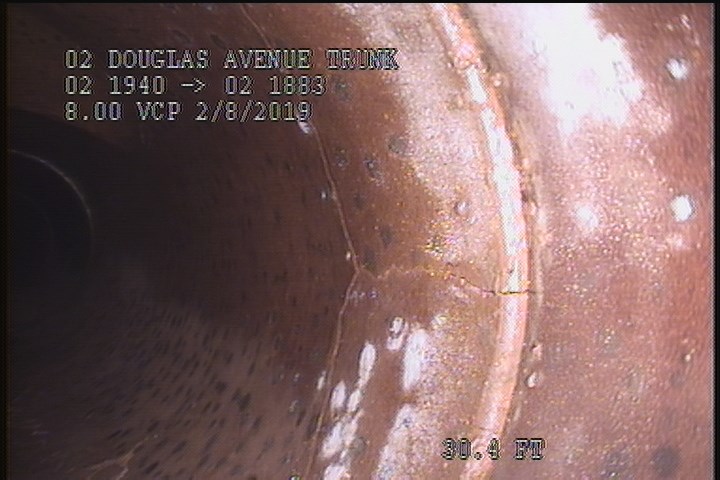

  • General Observation - MULTIPLE CRACKS

    30.4 ft. - General Observation - MULTIPLE CRACKS

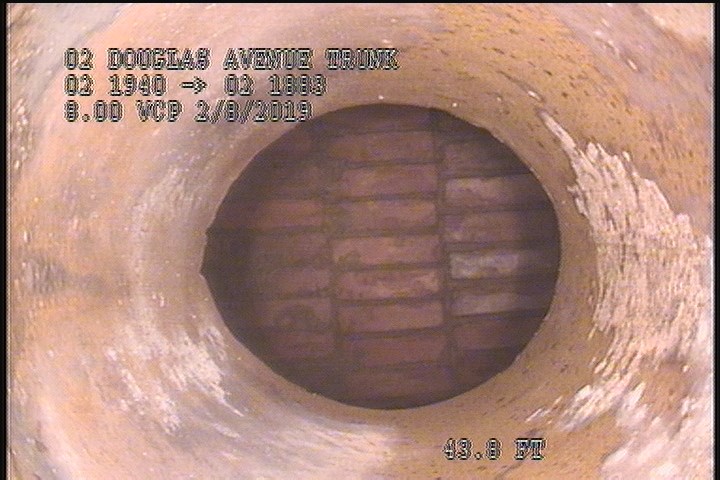

  • Drop Connection, Survey Ends - 11:00AM

    43.8 ft. - Drop Connection, Survey Ends - 11:00AM

All inspections of P04242Work order 0751205

Observations (14)

DistanceCodeObservation
0MWM—
6.8DAGS—
0MGOROACHES AT MH > 50
2.5SSS—
39.3TFC—
43.8CM—
0MWL—
0AMH10:30AM
31.8TFC—
43.8DAGS—
43.8AOC11:00AM
2.6CM—
30.4MGOMULTIPLE CRACKS
43.8SSS—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2019-02-08T09:45:26-08:00
