Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 7, 2019, 08:54 AM

  • 05 0903_05 0902_272019_010716.mp4

Date
02/07/2019
W/O
#
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00547
PipeID
P06133
Time
12:54 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1101
Sewer Name
05 120TH STREET EXTENSION TRUNK
City
HAWTHORNE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Maintenance Related
Project
20190297MDM_120TH_STREET_EXTENSION_TRUNK
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
05 0902
Downstream MH
05 0903
Dir. of Survey
Upstream
Length Surveyed
336 ft.
Total Length
336 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 05 0902 to 05 0903
MH: 05 0902MH: 05 0903upstream0 ft. AMH - Upstream Manhole, Survey Ends - 1:35AM49.1 ft. MGO - General Observation - RED COATING ON PIPE170.5 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 06 to 07 o'clock, , within 8 inches of joint: YES171.7 ft. MGO - General Observation - RED COATING NOT ON PIPE232.1 ft. MGO - General Observation - NRCP UNDER RED COATING232.2 ft. MGO - General Observation - NRCP UNDER RED COATING328 ft. MGO - General Observation - RED COATING OVER NRCP328 ft. MGO - General Observation - 15" NRCP336 ft. MWL - Water Level, 0 %of cross sectional area - NO FLOW336 ft. MWM - Water Mark, 20 %of cross sectional area336 ft. AMH - Upstream Manhole, Survey Begins - 12:55AM

Observation photos (8)

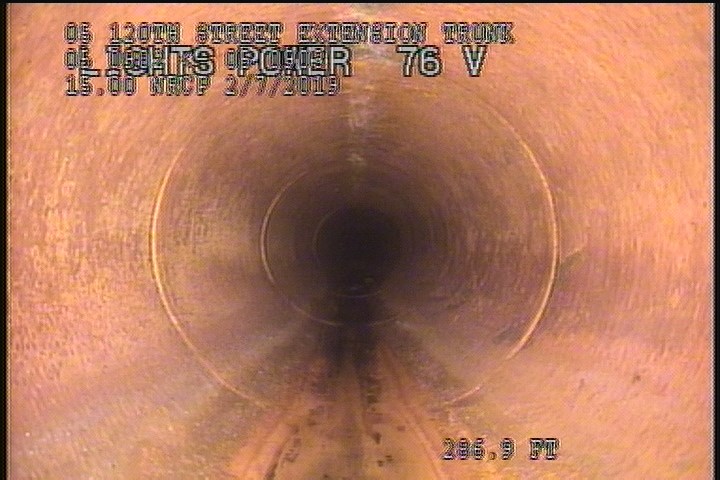

  • Water Level, 0 %of cross sectional area - NO FLOW

    0 ft. - Water Level, 0 %of cross sectional area - NO FLOW

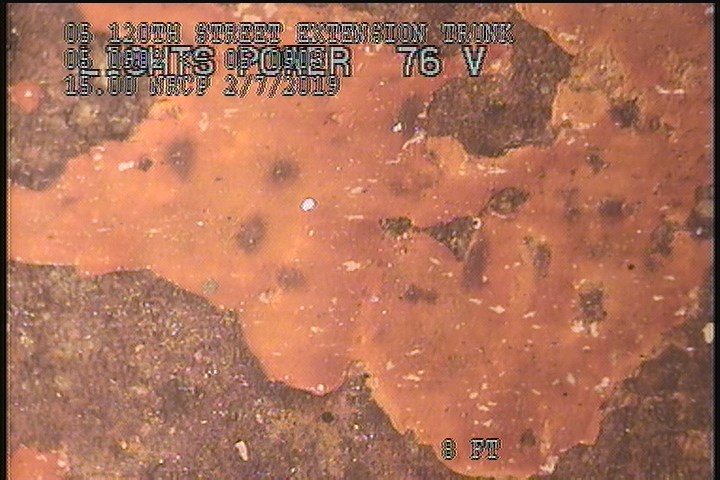

  • General Observation - RED COATING OVER NRCP

    8 ft. - General Observation - RED COATING OVER NRCP

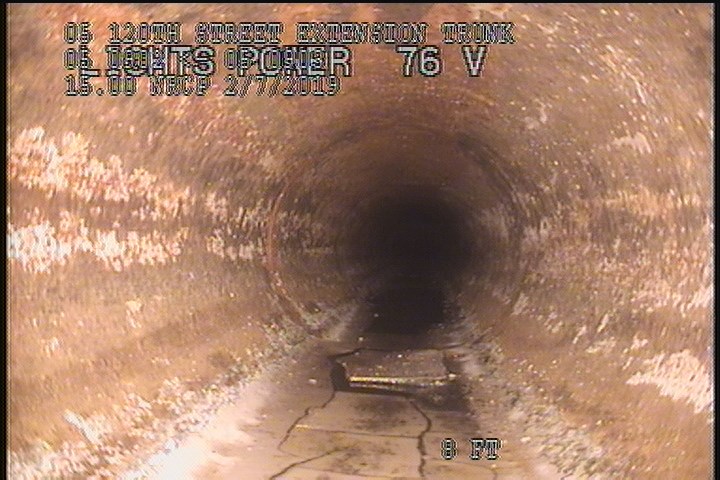

  • General Observation - 15" NRCP

    8 ft. - General Observation - 15" NRCP

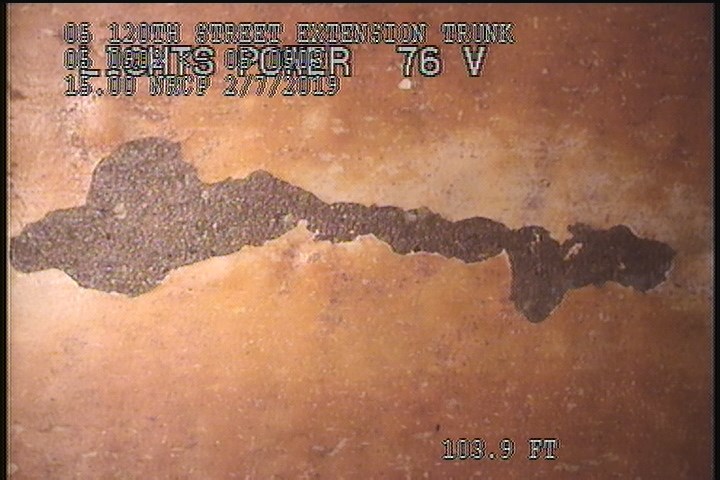

  • General Observation - NRCP UNDER RED COATING

    103.8 ft. - General Observation - NRCP UNDER RED COATING

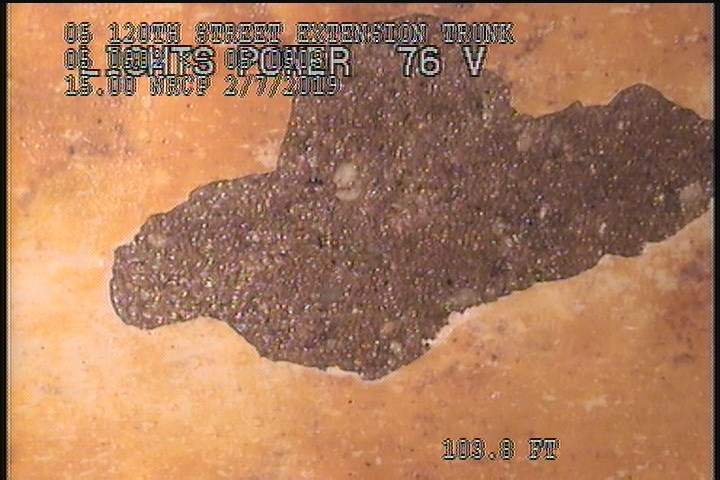

  • General Observation - NRCP UNDER RED COATING

    103.9 ft. - General Observation - NRCP UNDER RED COATING

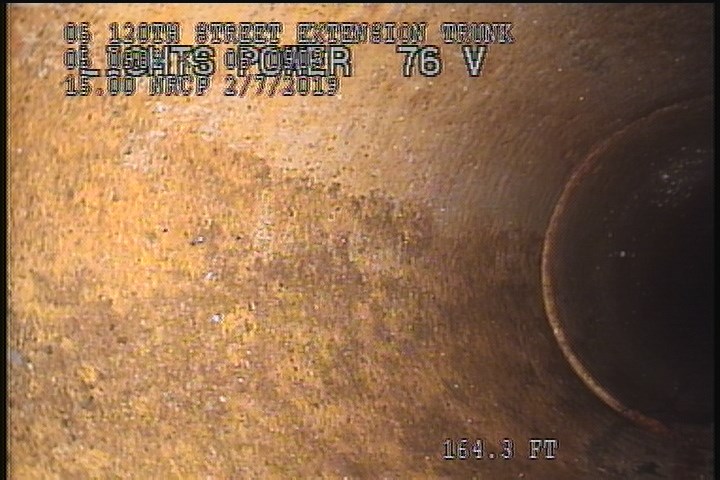

  • General Observation - RED COATING NOT ON PIPE

    164.3 ft. - General Observation - RED COATING NOT ON PIPE

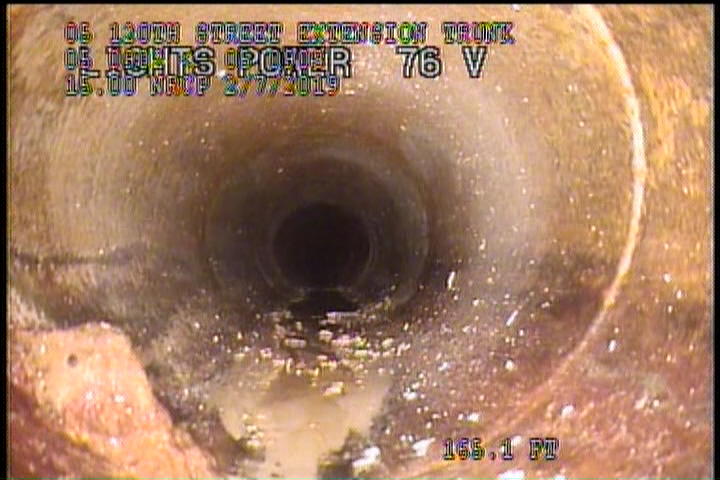

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 06 to 07 o'clock, , within 8 inches of joint: YES

    165.5 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 06 to 07 o'clock, , within 8 inches of joint: YES

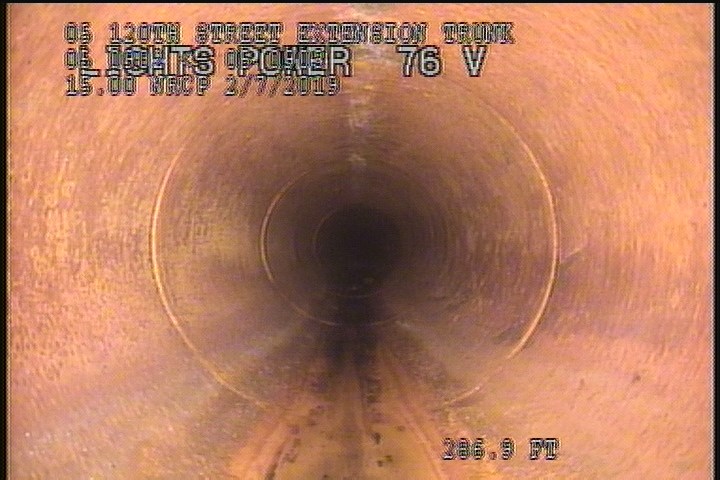

  • General Observation - RED COATING ON PIPE

    286.9 ft. - General Observation - RED COATING ON PIPE

All inspections of P06133Work order #

Observations (11)

DistanceCodeObservation
0MWLNO FLOW
165.5DAE—
103.9MGONRCP UNDER RED COATING
0MWM—
103.8MGONRCP UNDER RED COATING
164.3MGORED COATING NOT ON PIPE
8MGORED COATING OVER NRCP
0AMH12:55AM
286.9MGORED COATING ON PIPE
336AMH1:35AM
8MGO15" NRCP

Properties (5)

additional_info
PIPE MEASURE 15" NRCP
customer
LACSD
datetime
2019-02-07T00:54:58-08:00
documentation
MARTIN,OLIVER 111,CASTILLO
is_lateral_inspection
false
